Einleitung

  1. 1k6fEtMVZHHpTtVl
    1k6fEtMVZHHpTtVl
    Ig4B6sL1XL5PBM2Z
    HYaZHZHWZjr2iUJH
    • Locate the large button on the top of the device.

    • Push down on the button and slide the cover away from the button.

    • The battery removal tab may pop up.

  2. ARfOmF1gmxDRfkja
    ARfOmF1gmxDRfkja
    Q3CKLHrCQBKCadT3
    uCMYmEiByHdXFwvg
    • Grab the red pull tab and pull down to unlock the latch.

    • Pull the battery out.

    Which is positive and which negative?

    Glen Blaylock -

    Which side is positive

    Glen Blaylock -

  3. HNpDbe1gOfVhAliX
    HNpDbe1gOfVhAliX
    SUD6HCL2JCHf1WMD
    • Remove the four screws from the bottom of the device using a T6 Torx screwdriver.

  4. OXDhbbFSZTRAcaCx
    OXDhbbFSZTRAcaCx
    KWSVsFDxtRDHSbkm
    FHCN6HiO3Ts53x6Y
    • Remove the button cover on the back of the device by prying it up with a spudger or your thumb nail.

  5. VGbDFKUN4P3TIbrm
    VGbDFKUN4P3TIbrm
    qPhWZbvpcRbYWPyD
    11rXYHjoaMabTBmH
    • Remove the two screws under the button using the T6 Torx screwdriver.

  6. BMMlFyUMNC4IAAx2
    BMMlFyUMNC4IAAx2
    3WBMdAloaAXSDRso
    • Remove the back cover.

  7. rkLPIVCPwN5DnKg3
    rkLPIVCPwN5DnKg3
    P1xVogti1ecMSFGG
    • Remove the power button by pulling it to the left.

  8. qvBg2kQQqysiZJW2
    qvBg2kQQqysiZJW2
    CMegkeYifLA5yMN6
    • Remove the plastic antenna extension connector on the right side of the device.

  9. kATyDcKZkKJuMal1
    kATyDcKZkKJuMal1
    NOGFc3AOdIEA3JSs
    2drtFqNCDOr1N2j6
    • Pull up on the motherboard to remove it from the device.

    • The LCD screen and keypad are only connected to the motherboard with ribbon cables. They will hang down as the motherboard is removed.

  10. aJjeLseBFo4aZmpH
    aJjeLseBFo4aZmpH
    OgSk6T1ZHpFwSQdp
    • In the first picture, a connection may be seen with the black cable connecting the external antenna connector to the internal logic board (PCB) via U.FL connectors. The connectors on the ends of the cable are circled in red.

    • In the second picture, a connection may be seen with the with the gray cable connecting the external antenna connector to the internal logic board (PCB) via U.FL connectors. The connectors on the ends of the cable are circled in red.

  11. cse5GKogEd25F1sA
    cse5GKogEd25F1sA
    USaOYwdGeI4ETpta
    nQwGxbexPNtRbbQT

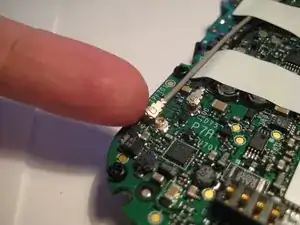

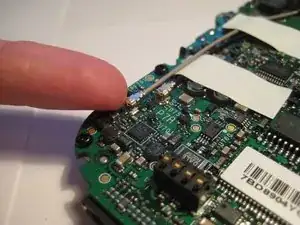

    • These antenna cables may need to be replaced should the connection drop from the XM Satellite service.

    • To remove, catch the side of the connector with a fingernail moving upward until the connectors pops up from the board.

    • After the U.FL connector is loose, center the new connector cable over the mating U.FL connector and press down firmly.

    • CAUTION: The connectors are delicate, so take much care when reconnecting.

  12. tpcTl5IIwLpRRfms
    tpcTl5IIwLpRRfms
    x1P4SfEgyICDFuMF

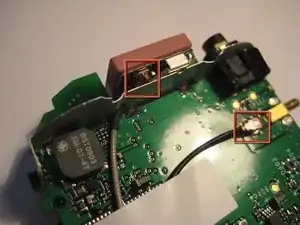

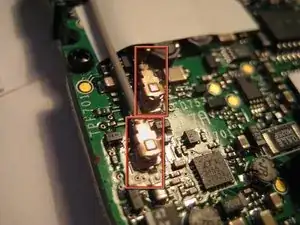

    • The U.FL antenna connectors should be secure and immobile as shown in the pictures.

    • Try moving them back and forth on the board to assure they are secure.

    • The U.FL antenna connectors are shown to be secure in the pictures highlighted with red boxes.

Abschluss

To reassemble your device, follow these instructions in reverse order.
