Rebuilding the ASF Assy

Geschrieben von: ciradrak
  • Kommentare: 2
Rebuilding the ASF Assy

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

45 Minuten

Einleitung

This guide will show you how to remove the "ASF Assy" (automatic sheet feeder?) from the printer, and disassemble it sufficiently to lubricate the moving parts. It will not tell you how to remove the housing; which will be left for other guides.

todo: create guides for the prerequisites and add them to the prerequisites list.

  1. fLAKRahXZtlOEwK5
    fLAKRahXZtlOEwK5
    itQKgJ1rWgqoPP1r
    LsuPSyBWAYcIju5M

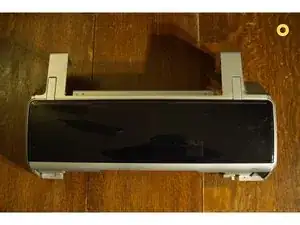

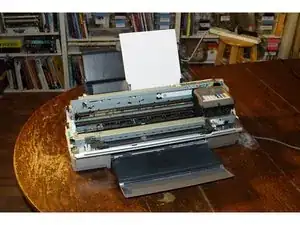

    • remove the rear housing

    • remove the side panels

    • remove the upper housing

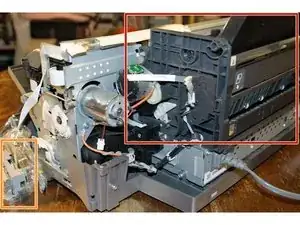

  2. wOPgIOUsD12HQgD1

    • This is the "ASF Assy" which we will be removing.

    • I have separated the "Panel FFC" (control panel) from the upper housing and reattached it to the printer for testing purposes.

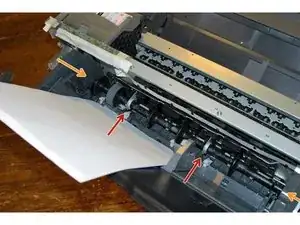

  3. 5bpoZpBBMJbhv1iO

    • Our first task is to remove the metal brackets which hold the Guide Roller in place.

    • metal brackets

    • Guide Roller

  4. 2mJkAdT3tZYNsItG
    2mJkAdT3tZYNsItG
    qTgIJSYjKTrdXsjl
    rOsILv3tBxCcRlae

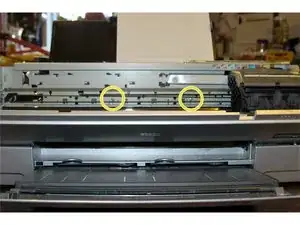

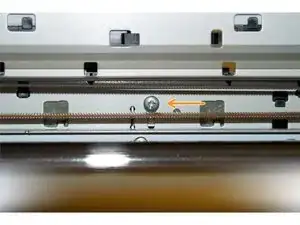

    • Note the vertical position of the screws holding the metal brackets. They move up and down to adjust the position of the Guide Roller. Mine were in the highest position, which puts the least amount of pressure on the Guide Roller.

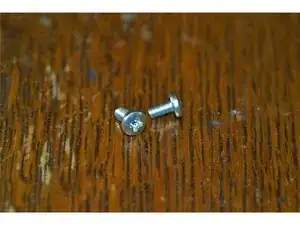

    • Remove the screws.

  5. NtqASkDnK4mAtgRY
    NtqASkDnK4mAtgRY
    SeyMgJALevEPHjAM
    1yRSWW1JyY1gk5cj

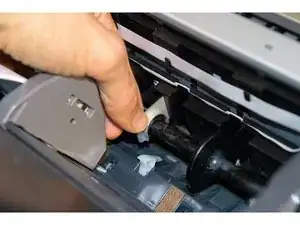

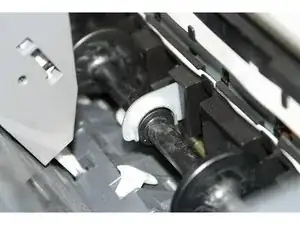

    • Gently pull on the Roller Guide to release the metal bracket from the shaft.

    • Tilt the metal bracket sideways and off of the cam.

  6. ACcfcpPHyBnEaoDR
    ACcfcpPHyBnEaoDR
    ZPyjCX6KwgkEDVhr

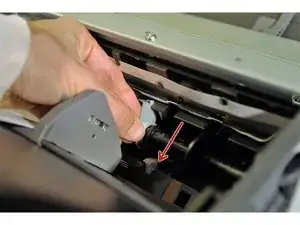

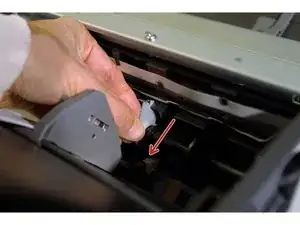

    • Because the Roller Guide flexes slightly, you can now shift the metal bracket toward the rear of the printer, to disengage it from the carriage assembly.

    • (needs new picture)

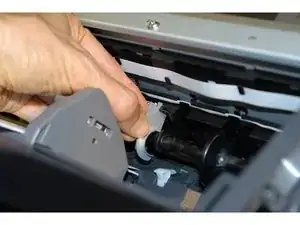

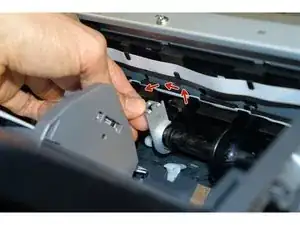

  7. JgcQNOkDKE3Vbi2k
    JgcQNOkDKE3Vbi2k
    p2nJMLNgOykMbOX3

    • Rotate the metal bracket upward around the Roller Guide and remove it.

    • (needs another picture)

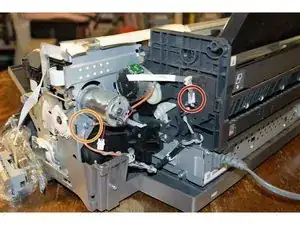

  8. BSyQtUNSEL1BrdvJ
    BSyQtUNSEL1BrdvJ
    d5ZnnepWVanBy2pb
    6Dw6rFwOQiqK3wa2

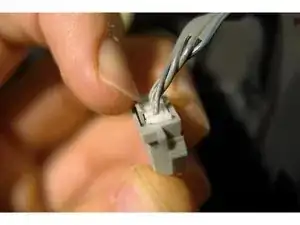

    • Disconnect the sheet feeder motor at the relay connector and unroute the relay wire from the 'ASF Assy'.

    • The release tab for the relay connector is on the motor side of the connector.

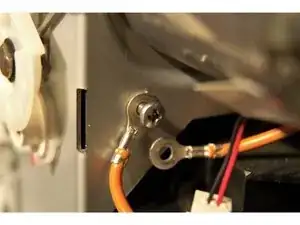

    • Separate the sheet feeder motor ground wire from the chassis ground.

    • I like to put the grounding screw back to keep it from getting lost.

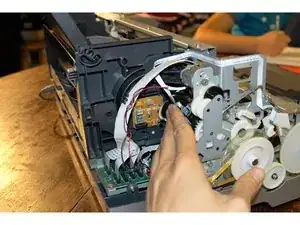

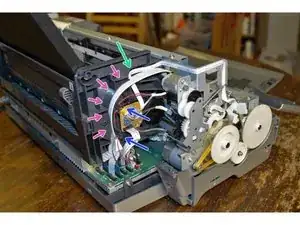

  9. 5YMX6oI6vNkQCWla
    5YMX6oI6vNkQCWla
    2dJy1Q3QjoOdQdRr
    PPJSQJnoCTgTdICO

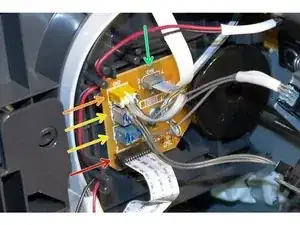

    • Disconnect the FFC (flat flexible cable) (which links the main board to the relay board) at CN1

    • Disconnect the Paper Edge sensor at CN2

    • Disconnect the APG (automatic paper guide?) sensors at CN4 and CN5.

    • Disconnect the FFC which links the Paper Feed Encoder to the relay board at CN6. The Paper Feed Encoder's FFC is also tacked to the Sheet Feeder by double sided tape. Carefully separate the cable from the Sheet Feeder's frame.

    • Deroute the red & black APG motor wires from the ASF (automatic sheet feeder) housing.

    • Deroute the Flat Flexible Cables from the groove in the Automatic Sheet Feeder housing.

  10. MJU5rdmmRyvesEGY
    MJU5rdmmRyvesEGY
    5iX36nyVLLWea21Y
    kNCYdNJFs1rdFqOV

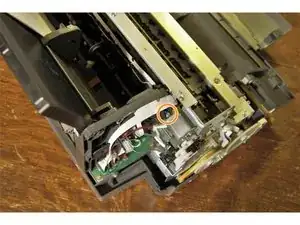

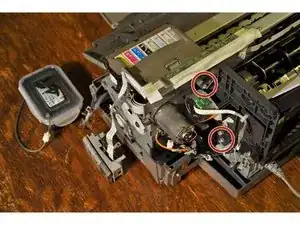

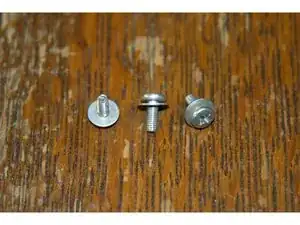

    • Remove right side screws.

    • Remove left side screw.

    • todo: update left side picture to show correct disassembly state.

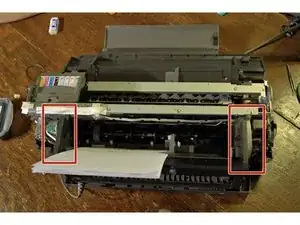

  11. j3ZB1iByWMHV3QuH
    j3ZB1iByWMHV3QuH
    WnTMqSV4PB1BKZrc

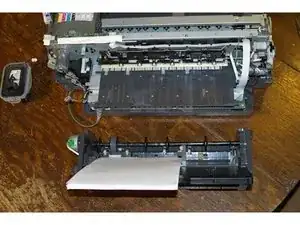

    • Hold the Sheet Feeder here and lift it free.

    • Because many of these printers were used in semi-professional settings, they were often modified. This one has a waste ink tank, bypassing the waste ink pads and the associated end-of-life error.

Abschluss

Congratulations, you just saved a 700$ printer.

Tinte & Feder

ciradrak

Mitglied seit: 15/03/10

448 Reputation

2 Kommentare

I am impressed by the quality of the instructions and photos. But do not why the ASF had to be removed. Is it to add a replacment? My concern is that my printer won't load paper. I am wondering whether I just need to increase the pressure on the pickup roller. With my printer the ASF mechanism is working it does try to pick up the paper.

ed -

*sigh* Well you can see it takes me a while to get back to working on projects that I start. Anyway, the reason I was taking out the sheet feeder was that the sheet feeder builds up too much friction which the printer doesn't like and causes the sheet of paper to be ejected without printing anything. By removing it, lubricating it, and fixing the rubber bits; the printer will print again. My fault was that I haven't finished writing the guide yet.

ciradrak -
