How to disassemble device and fix restarting problem.

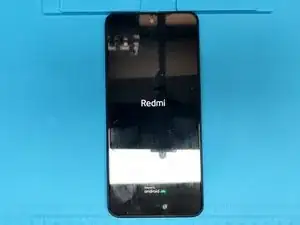

Xiaomi Redmi Note 9 Pro restarts - Power On flex replacement

  1. oMWuNn3FfpdLGICb
    oMWuNn3FfpdLGICb
    bVl1CMRyvt2xLVSi
    edcZuXYLjOFXCtCV

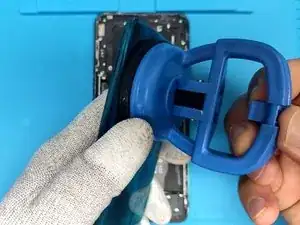

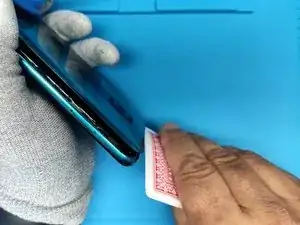

    • Warm up the device to soften the adhesive.

    • Use plastic tools and a little isopropyl alcohol to separate the back cover.

  2. y2k4rqA2IB5sNk5g
    y2k4rqA2IB5sNk5g
    seFGEBMWelZjQIbT
    p2FPvAJ2fXhfXYQN

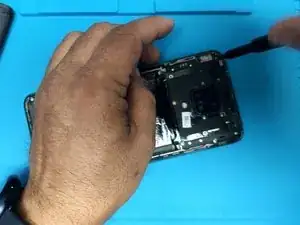

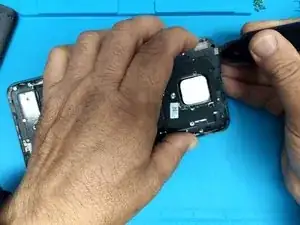

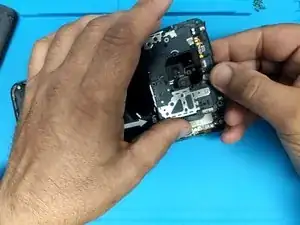

    • Remove the Philips screws secured the plastic cover.

    • Use plastic tool to remove the cover.

  3. Uu1l2ETEKTp2PEwm
    Uu1l2ETEKTp2PEwm
    u2431KUCc4srePKF
    edglh4hFSb4qdUk3

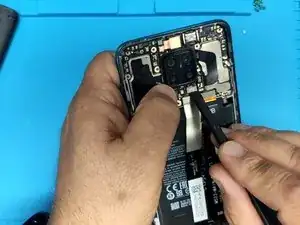

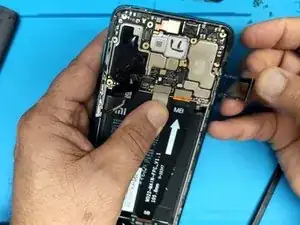

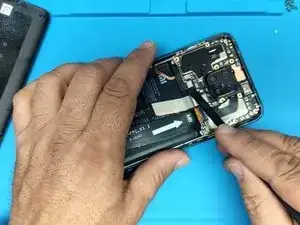

    • Disconnect the battery.

    • Remove the Main cameras.

    • Remove the SIM Tray.

  4. eSIAT3Kn3iDjYXht
    eSIAT3Kn3iDjYXht
    m3OObqPJXyqKcBrC
    LUydiWmVy2GGAY2t

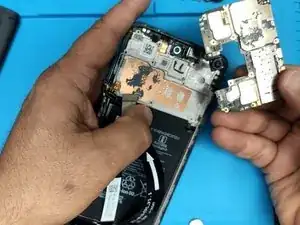

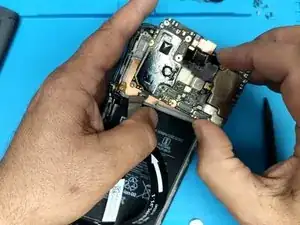

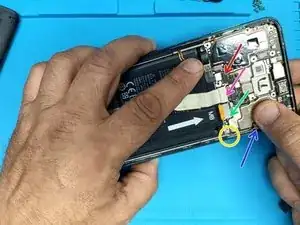

    • Disconnect all flex cables:

    • Fingerprint sensor flex cable

    • Screen flex cable

    • Main flex cable

    • Coaxial antenna cable

    • Remove the Phillips screws securing the motherboard to the middle frame

    • Remove the motherboard.

  5. ggrMELoRkY6lXxKA
    ggrMELoRkY6lXxKA
    UJgtnZuXpFmMKabg
    XDFgTbxfEBUWCXUx

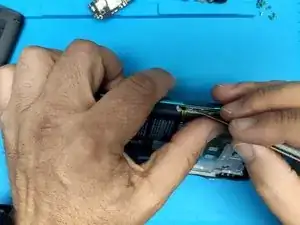

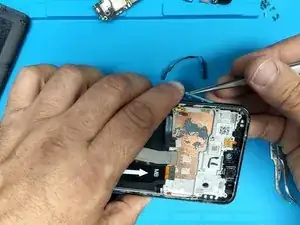

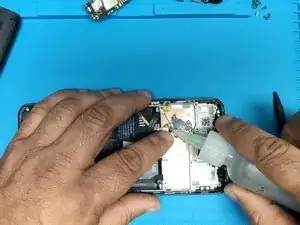

    • Remove the Fingerprint sensor.

    • Remove the volume buttons plastic cap.

    • Use isopropyl alcohol to easy remove the flex cable.

  6. ahQOWf1YEvFXFDSk
    ahQOWf1YEvFXFDSk
    IJbuOW5FykGIA4pg
    wQxFgqZhLSeRYwL6

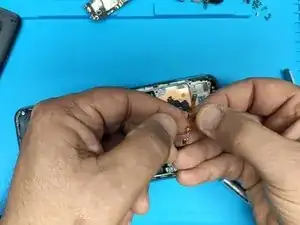

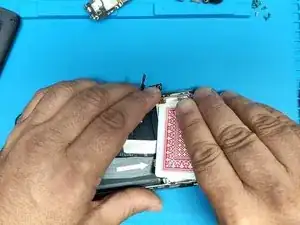

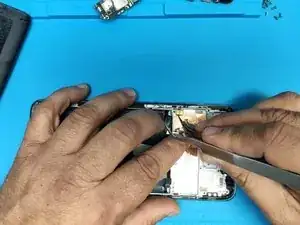

    • Use playing cards to remove the flex cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
