Redmi Note 9 Pro Loudspeaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

14

Zeitaufwand

30 - 40 Minuten

Einleitung

Use this guide to replace the loudspeaker on your Xiaomi Redmi Note 9 Pro.

You’ll need replacement adhesive to reattach components when reassembling the device.

  1. rMFCJuYOCDCGdtBe

    • Prepare an iOpener and apply it to the rear glass for at least two minutes to loosen the adhesive underneath.

    • A hair dryer, heat gun, or hot plate may also be used, but be careful not to overheat the phone—the display and internal battery are both susceptible to heat damage.

  2. UR6pcX6bnEbqKCPe
    UR6pcX6bnEbqKCPe
    R5XiKGqnInwAhbdT
    No2pib1aOKJvjvqj

    • Secure a suction handle to the bottom edge of the rear glass, as close to the edge as possible.

    • If the rear glass is cracked, the suction handle may not stick. Try lifting it with strong tape, or superglue the suction handle in place and allow it to cure so you can proceed.

    • Lift the rear glass with the suction handle to create a small gap between the back cover and the frame.

    • In case you have trouble creating a gap, apply more heat to further soften the adhesive. Follow the iOpener instructions to avoid overheating.

    • Insert an opening pick into the gap you created.

    • Slide the opening pick to the bottom right corner to slice the adhesive.

    • Leave the opening pick in place to prevent the adhesive from resealing.

  3. t1FeAEXUAlPHXc1B
    t1FeAEXUAlPHXc1B
    HtZrKe6URriPeARA

    • Insert a second opening pick at the bottom edge of your phone.

    • Slide the opening pick to the bottom left corner to slice the adhesive.

    • Leave the opening picks in place to prevent the adhesive from resealing.

  4. ExehLdC4E4aKqBJQ
    ExehLdC4E4aKqBJQ
    KSvl1HOgdiYZEbvl
    Jgi4nLeaWoIhuGVo

    • If the adhesive becomes hard to cut, it has most likely cooled down. Use your iOpener for one to two minutes to reheat it.

    • Insert a third opening pick at the bottom left corner of your phone.

    • Slide the opening pick along the left edge of your phone to slice the adhesive.

    • Leave the opening pick in the top left corner to prevent the adhesive from resealing.

  5. HbYkHthgdAM3CoxE
    HbYkHthgdAM3CoxE
    2nwENRRndQaYEiK1

    • Insert a fourth opening pick underneath the top left corner of your phone.

    • Slide the opening pick along the top edge to slice the adhesive.

    • Leave the opening pick in the top right corner to prevent the adhesive from resealing.

  6. ONyEvsT4H63iDlCD
    ONyEvsT4H63iDlCD
    mXMPKCnG4UWqGIpJ

    • Insert a fifth opening pick underneath the top right corner.

    • Slide the opening pick along the right edge of the rear glass to slice the remaining adhesive.

  7. ih5EvVjtVZOnGYSq
    ih5EvVjtVZOnGYSq
    2KcqJnXaBviJB4Qn

    • Remove the rear glass.

    • Apply new adhesive where necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

    • Secure the new rear glass with pre-cut adhesive or double-sided adhesive tape. After installing the rear glass, apply strong, steady pressure to your phone for several minutes to help the adhesive form a good bond—a stack of heavy books works well.

  8. 13ZsCxkhWCwCR4TJ

    • Use a Phillips screwdriver to remove the eleven 3.9 mm-long screws securing the motherboard cover.

  9. H6IYVV6JD1ZAiIDT
    H6IYVV6JD1ZAiIDT
    YNxHBYqEXrnZdE1M

    • Insert the tip of an opening pick underneath the left edge of the motherboard cover.

    • Flip the opening pick sideways to pry up the motherboard cover.

  10. 2x6qHfwWZ6hoBlbh
    2x6qHfwWZ6hoBlbh
    SfcpPnwNWitX5ThC

    • Use a pair of tweezers or your fingers to remove the motherboard cover.

  11. YnCjhCGCIEXT4aVb
    YnCjhCGCIEXT4aVb
    bgrlVksLVwQP2IZp

    • Use a spudger to disconnect the battery cable by prying the connector straight up from its socket.

  12. iDLRFppMMbfCctJ2

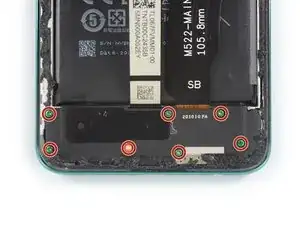

    • Use a Phillips screwdriver to remove the seven 3.9 mm-long screws securing the loudspeaker assembly.

  13. ZavqIFWjsEBrc33U
    ZavqIFWjsEBrc33U
    PeLANRJVZh2Wgon3

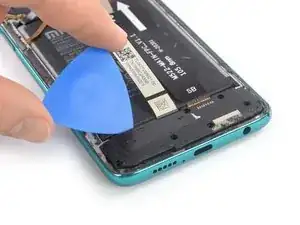

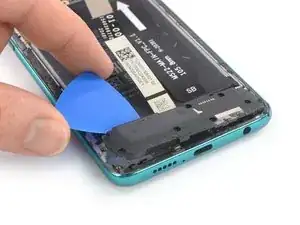

    • Insert an opening pick into the gap between the top edge of the loudspeaker assembly and the battery.

    • Use your opening pick to pry up the loudspeaker assembly.

  14. lBlgYOLxKSfNNK26
    lBlgYOLxKSfNNK26
    LrOOu3KQlfHINl3N

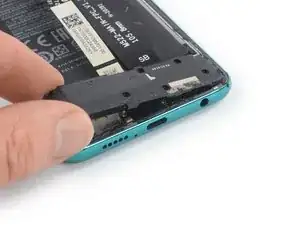

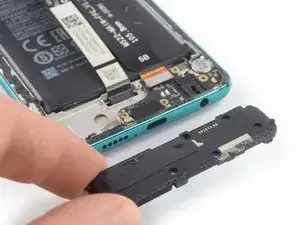

    • Remove the loudspeaker assembly.

    • During reassembly apply new adhesive where it's necessary after cleaning the relevant areas with isopropyl alcohol (>90%).

Abschluss

If possible, turn on your device and test your repair before installing new adhesive and resealing.

Compare your new replacement part to the original part—you may need to transfer remaining components or remove adhesive backings from the new part before installing.

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
