Replacing the Battery on a BLU Vivo 5

Geschrieben von: Eneider Colina
  • Kommentare: 2
Replacing the Battery on a BLU Vivo 5

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

45 Minuten

Einleitung

Replacement guide for the BLU Vivo 5's battery

Technical information:

Battery Replacement Guide

  1. oMoJW6YhXLANVKnO
    oMoJW6YhXLANVKnO
    kCCqS2iduyXVBDHw

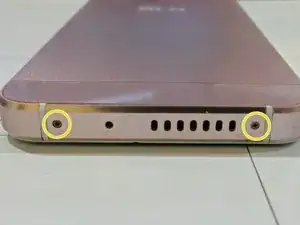

    • Remove the P2 screws.

    • Remove the SIM and SD cards, as well as the adapter.

    There are no screws on my BLU Vivo 5. Mine has left and right speaker(mic) slot and USB type c middle, no screws.

    V'Ger_iTech -

  2. I63IoKXrXeasyWOQ
    I63IoKXrXeasyWOQ
    i6AY1Gl25KxirQMV
    bIVo6xPVyUEYRp5s

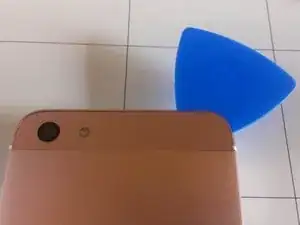

    • Pull off the protective cover from the camera.

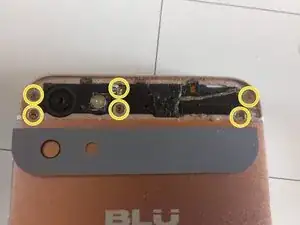

    • Remove the screws with a #00 Phillips screwdriver.

  3. PT2WubaThOrukeJC
    PT2WubaThOrukeJC
    opHxVcxC1eX5ceWV
    sCeDyywAIam6GcbP

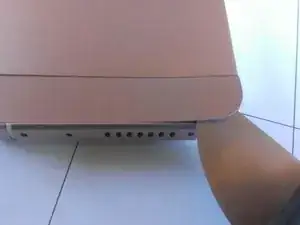

    • To remove the bottom cover, pull it upward.

  4. VqWsPUuOudi3242h
    VqWsPUuOudi3242h
    muqVNFMNdIwFC1nV
    slPBlBAmd3LvcMnI

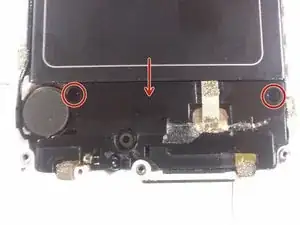

    • Use a spudger to carefully apply pressure to the indicated areas to remove the cover.

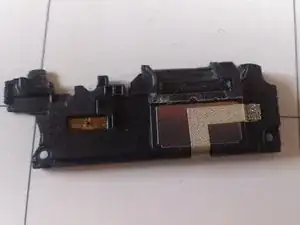

    • Remove the microphone/speaker board assembly by pulling downward.

  5. VPE2NSuJGEWmoPSp
    VPE2NSuJGEWmoPSp
    oxAhArbJXJRyPDEq
    LTh1T5nWJpKNIDIo

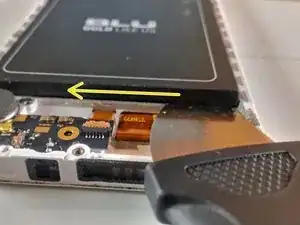

    • The battery has a small notch to facilitate removal, but the battery has been glued in place.

    • To remove the battery, pry under it with a thin tool and slide from one side to the other slowly, listening for the sound of the battery coming loose.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Eneider Colina

Mitglied seit: 20/09/13

2332 Reputation

Ein Kommentar

Umm not sure what BLU Vivo 5 your giving these instructions for, my BLU Vivo 5 has no screws. Looks the same except for bottom speaker area, mine has type c and other wither side 2 slots one for mic one for speaker, no screws.

V'Ger_iTech -
