Replacing the Huawei Nova Plus Screen

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

30 Minuten

Einleitung

  1. GMfjSLuftUPHH1pK

    • Before starting, extract the SIM tray.

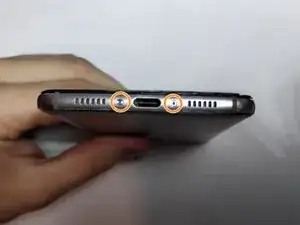

  2. bSvERrAQuWWWry4O
    bSvERrAQuWWWry4O
    JKLJ33wHkcbZwQHq

    • Torx #2

    • Pry in between the screen and the back cover. All electronic components are on the back of the screen.

  3. rJcQNVQVLXMStKMd

    • Disconnect the fingerprint reader.

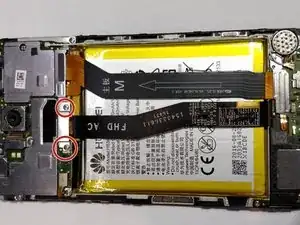

  4. DmQVZKV3EvmHGxbc
    DmQVZKV3EvmHGxbc
    nEbTEOqSEJQelVok

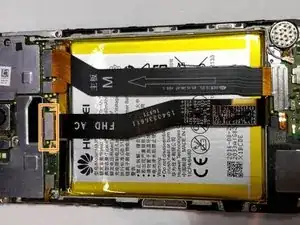

    • Remove the battery, lower PCB and screen connector bracket. Use a Philips #0 screwdriver.

    • Screen connector

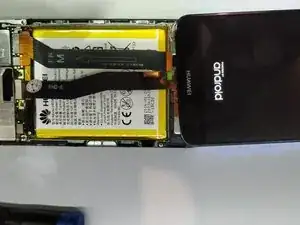

  5. viCbr3tyyCAfGWhU

    • Connect and test the new screen before assembling it.

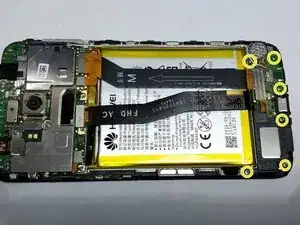

  6. FXTreXP1wXCBV1Nd
    FXTreXP1wXCBV1Nd
    YLe5LMeVFdrVvwZb
    esxlT4NooIrppEjn

    • Philips #0

    • Disconnect speaker

    • Remove speaker

    • Apply heat on the top and bottom of the screen until it can be removed with the prying tools. Remove as much adhesive as possible and assemble the new screen.

    Konpule nasıldeyişdirebilirsiniz

    Gülhan Kocagöz -

Abschluss

Follow these instructions in reverse order to reassemble your device.
