Removing Bottom of iMac G4 15" 700 MHz EMC 1873

Geschrieben von: Elliot Freerks

Kommentare: 15

Removing Bottom of iMac G4 15" 700 MHz EMC 1873

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

10 - 20 Minuten

Einleitung

We will unscrew the bottom faceplate, then remove the base to access the internal components.

Werkzeuge

Schritt 1

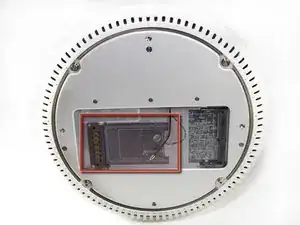

Place the computer monitor face down on a safe, harmless surface.
Using a Phillips #00 screw driver, remove the four 6.86 mm screws from the metal plate.

Schritt 2

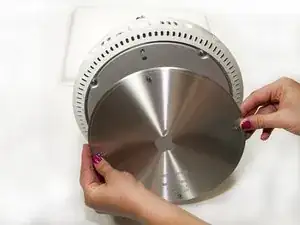

Remove the metal plate from bottom of the iMac G4.
The four screws do not completely separate from the metal plate.

Schritt 3

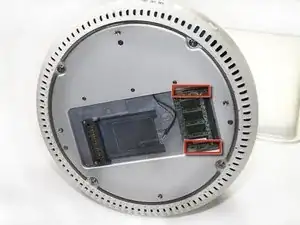

Release the tabs on each side of the module by simultaneously pushing each tab away from the RAM.
These tabs lock the module in place and releasing them will cause the module to "pop" up.
Remove the RAM module from the iMac.

You to not need to remove the RAM to complete this task.

douglux - 13/12/20

Schritt 4

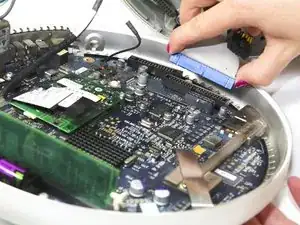

Use a spudger to lift and remove the AirPort's antenna connector.
This step is only applicable to iMacs that came with an AirPort card installed.

Schritt 5

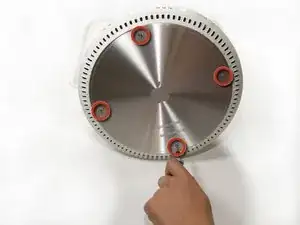

Remove the four 28.07mm Torx #15 screws from the lower case.

Schritt 6

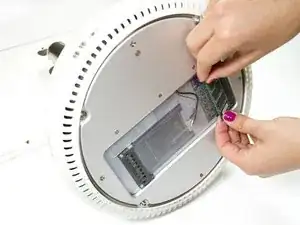

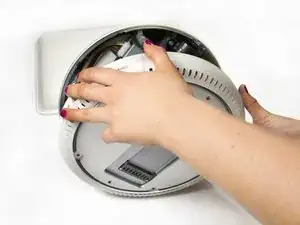

Open the base by carefully pulling straight off, do not rotate the cover.
Open slowly to ensure that no cables are damaged or disconnected.

You can skip steps 7-9; there is no need to disconnect any internal wiring or RAM. Crack open the base a couple of inches (it doesn't really rotate, just pull it out), and the PRAM battery will be right under your nose. It's no problem to pop it out with your fingers and put the new one in. Just make sure that you note the positive and negative terminals on the old one, and put the new one in the same way.

whshep -

No one mentioned the need for thermal paste in the reassembly...

Federico Jimenez - 05/05/14

Thermal paste? Where would you put that? As I understand it there's no need for that anywhere other than the CPU/Heatsync

Steven Hatch - 15/08/16

There's a post (or block really) that connects the cpu heatsink to the upper part of the metal shell that is just to the right (facing the imac) of the drive door. Upon reassembly it's best to clean the matching surfaces and reapply thermal paste to that upper post.

Joe Pena - 16/08/16

what's with the apparent loose black wire visible in step 6 & 7 ?? same as the loose wire just sitting there in step 3 ( which was like that on mine, just loose.....? )

rickcee44 - 21/06/15

I hear that wire is bluetooth hook up.. my model has the other side but my board doesn't have the hook up... go fig :(

sean - 17/07/15

agreed with whshep. I did not disconnect these cables to complete this repair.

douglux - 13/12/20

Schritt 7

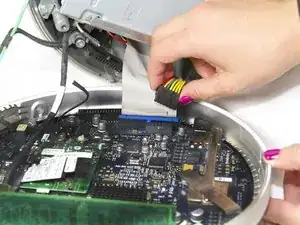

Squeeze the small black tab and wiggle gently to remove the colored power cable.
Do not pull directly on the colored wires.
Do not remove black grounding wire.

The black tab is in in the middle of the plug (facing us in the photo.) Pushing not very hard on the top unlatches the bottom.

Matt D - 15/04/20

I got away with not disconnecting these cables and was still able to complete the repair.

douglux - 13/12/20

What if I remove the grounding cable

Roman -

Schritt 8

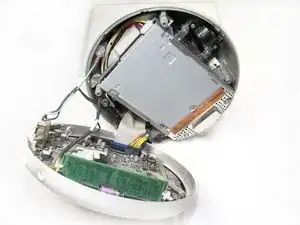

Grab both sides of the blue connector and firmly pull to remove it from the mother board.
