Removing Dell Inspiron 1150 Wireless MiniPCI Card

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

The purpose of this guide is to demonstrate how to locate and remove the 1150 Wireless MiniPCI Card.

  1. RWrMZaOv4pCjBHbU
    RWrMZaOv4pCjBHbU
    2NKAgQ2sgRERDvRu
    CE1vbCUmQtNZvSpX

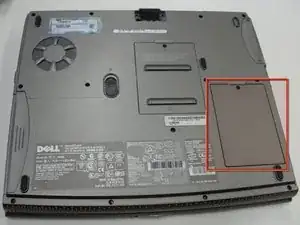

    • Turn the laptop upside down and locate the panel labeled C.

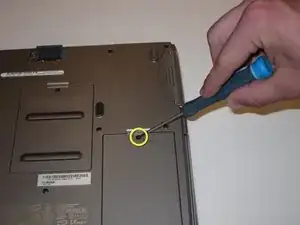

    • Unscrew the single screw holding the cover in place.

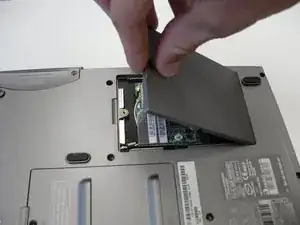

    • lift up the cover and remove it to exposed the Wireless MiniPCI Card.

  2. Trtt65IbUF4bRKb3
    Trtt65IbUF4bRKb3
    CggUCjmFHDQ21vS4

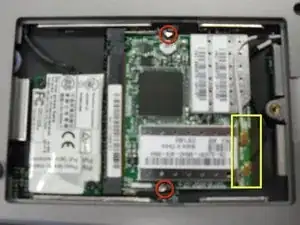

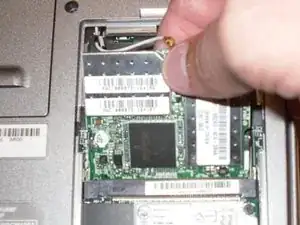

    • Using a plastic spudger or similar, gently pry the grey and black wires off.

    • The grey and black wires are the antenna wires so be careful not to damage them

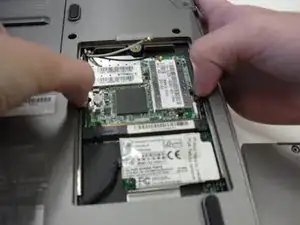

    • Gently pull the retaining clips away from the board so that the board pops up.

  3. TfIogGNQqm2Pqswg

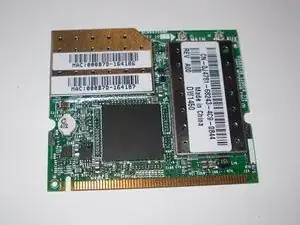

    • Lift the board up and out of the mini PCI slot at an angle of about 35 - 45 degrees

Abschluss

To reassemble your device, follow these instructions in reverse order.
