Removing HP Compaq dx2000MT PCI Cards

Geschrieben von: Logan Pace
  • Kommentare: 1
Removing HP Compaq dx2000MT PCI Cards

Schwierigkeitsgrad

Very easy

Schritte

6

Zeitaufwand

1 Minute

Einleitung

This guide will show you how to remove a PCI card on your HP Compaq dx2000MT.

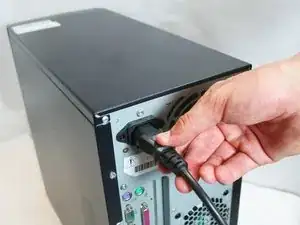

  1. QqUIfbEFgWEoENc2

    • Turn off your computer and remove the power cable by pulling it straight out of its socket.

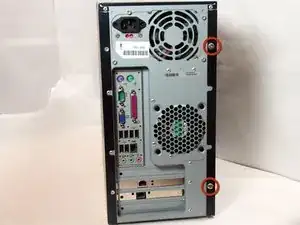

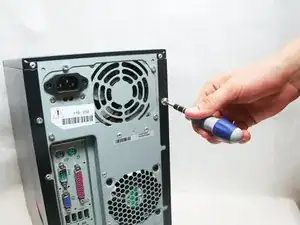

  2. TZBMYGU5xmCouAHI
    TZBMYGU5xmCouAHI
    XXkhfrfYF5k3YXoN

    • Remove the two Phillips #2 screws that secure the case door to the device.

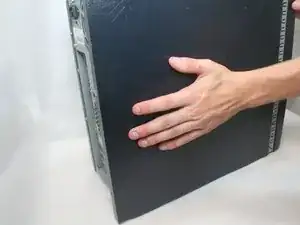

  3. 3OpvPkfn4SA6ynv3
    3OpvPkfn4SA6ynv3
    UuZilQWYmFN4VQTC
    NEhXURB4ZrJWoWTA

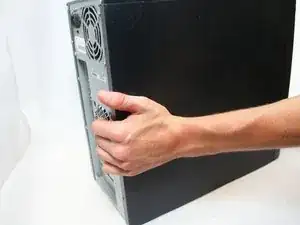

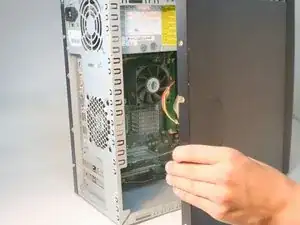

    • Remove the side case door by pushing towards the rear of the device with your hand.

    • This may take considerable force so keep pushing!

    • Once you slide the door back, remove it by pulling it outwards from the device.

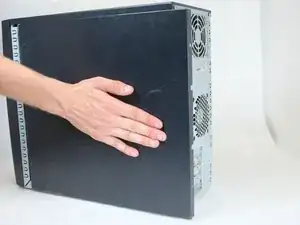

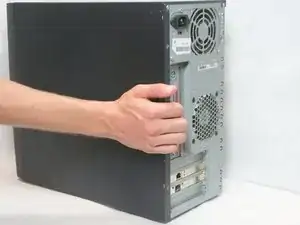

  4. N5AQDkScGdcXVN1O
    N5AQDkScGdcXVN1O
    VeMOUrXheEXxLxBu
    cFBdm1RJSZlEaPYp

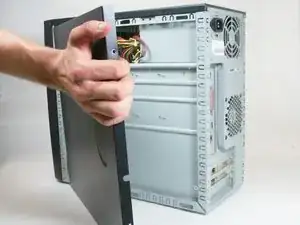

    • Remove the side case door by pushing towards the rear of the device with your hand.

    • Once again, this may take considerable force.

    • Once you slide the door back, remove it by pulling it outwards from the device.

    it’s useless my friends

    bisous sur les fesses de ta mamaa

    Albert einstein -

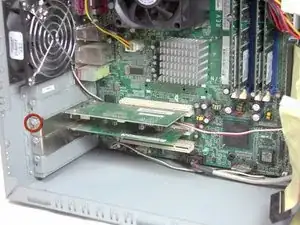

  5. 62NvXI3tKBmFvKqJ
    62NvXI3tKBmFvKqJ
    DKPW6VChGEx26LKB

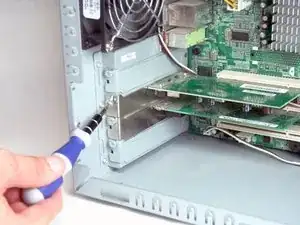

    • Remove the Torx T15 screwdriver holding the PCI card in place.

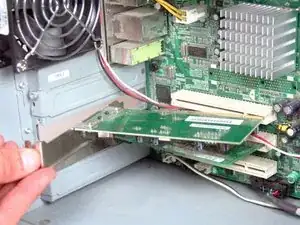

  6. foDOFflkyDgAN3Ky

    • Remove the PCI card by pulling it out towards the side of the device.

    • Be careful about touching the top and bottom of the card! The static electricity in your fingers could short it. If you can, only touch the metal bracket and the sides of the card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
