Removing Minolta X-370 Bottom Cover

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

Only requires removing a few screws. No special tools required.

  1. HGTgCXY5Johw2lrp
    HGTgCXY5Johw2lrp
    dnV2wvXpGHOlBbPT

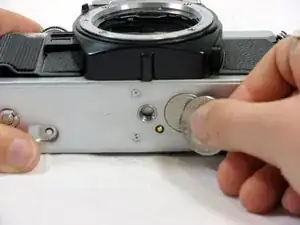

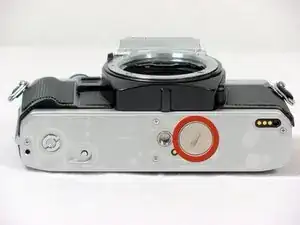

    • Flip the camera so that the bottom is facing you.

    • Take a spare coin and unscrew the battery cover off.

  2. ZklSZGPu2EkAoNYI

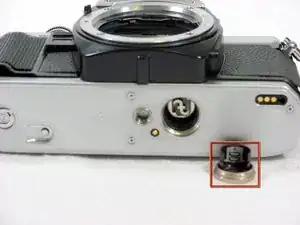

    • Remove the batteries, making sure to note their proper alignment.

    Hi just checking which type of batteries are required? You have two types listed, the SR44/LR44 (I understand those are the same types of batteries) then the CR-1 / 3 /3N 3V battery? How many batteries do I need and which type will I need? thanks!

    Juliette Perry-Dumarquez -

  3. bQIX2C3tpREXUXuU
    bQIX2C3tpREXUXuU
    61toCgWgKaquQb4N

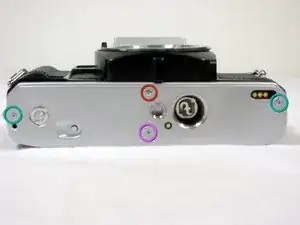

    • Remove two 4.8mm screws.

    • Remove one 3.4mm screw.

    • Remove one 2.65mm screw.

    • Lift off the back cover.

  4. VaQKwjX6YWx5EE3r

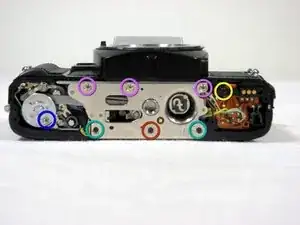

    • Remove three 3.5mm screws.

    • Remove two 3.8mm screws.

    • Remove one 6.35mm screw.

    • Remove one 4mm screw. Lift off the disk.

    • Remove one 5.11mm screw.

  5. vWPvlfdOHRDSsNLo

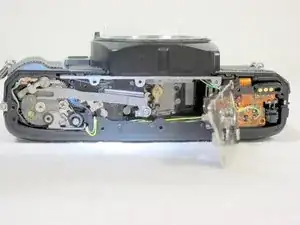

    • Lift up the silver, metal piece

    • Please note that some internal pieces may come loose during this process.

Abschluss

To reassemble your device, follow these instructions in reverse order.
