Removing Minolta X-370 Lens Holder

Geschrieben von: Nick
  • Kommentare: 3
Removing Minolta X-370 Lens Holder

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 - 45 Minuten

Einleitung

You will be removing some leather grips, which you will reuse, to access some screws. Be careful not to tear these grips.

  1. HGTgCXY5Johw2lrp
    HGTgCXY5Johw2lrp
    dnV2wvXpGHOlBbPT

    • Flip the camera so that the bottom is facing you.

    • Take a spare coin and unscrew the battery cover off.

  2. ZklSZGPu2EkAoNYI

    • Remove the batteries, making sure to note their proper alignment.

    Hi just checking which type of batteries are required? You have two types listed, the SR44/LR44 (I understand those are the same types of batteries) then the CR-1 / 3 /3N 3V battery? How many batteries do I need and which type will I need? thanks!

    Juliette Perry-Dumarquez -

  3. bQIX2C3tpREXUXuU
    bQIX2C3tpREXUXuU
    61toCgWgKaquQb4N

    • Remove two 4.8mm screws.

    • Remove one 3.4mm screw.

    • Remove one 2.65mm screw.

    • Lift off the back cover.

  4. VaQKwjX6YWx5EE3r

    • Remove three 3.5mm screws.

    • Remove two 3.8mm screws.

    • Remove one 6.35mm screw.

    • Remove one 4mm screw. Lift off the disk.

    • Remove one 5.11mm screw.

  5. vWPvlfdOHRDSsNLo

    • Lift up the silver, metal piece

    • Please note that some internal pieces may come loose during this process.

  6. uumTSOnYlVseyssV
    uumTSOnYlVseyssV
    tNVFVxYb2GRSILiW
    VlfovDD5VZIb1dfp

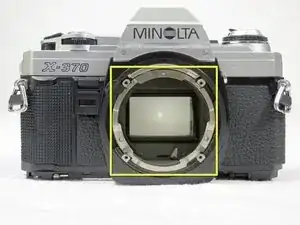

    • Remove four 4.45mm screws and remove the alignment ring.

    • Remove the interior metal ring and the black plastic ring. Pay attention to the spring's location.

    • Pay attention to the alignment of the interior metal ring and the black plastic ring.

    The photo is wrong, the red dot should be facing north, instead of west.

    Laura Ceja -

  7. Vxo2TURB6VojkXUD
    Vxo2TURB6VojkXUD
    VMgtKQXyc2ALFWJr
    H2fNjjjuXGC3iOSv

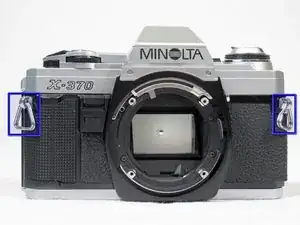

    • Remove the two black stoppers.

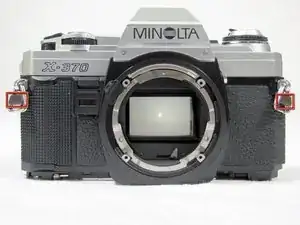

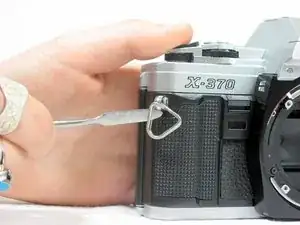

    • Using the metal spudger, remove the two triangular hangers.

  8. X6DZPAKjCSaAMctj
    X6DZPAKjCSaAMctj
    cel4CwgZSNhXJmYp

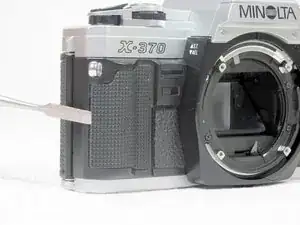

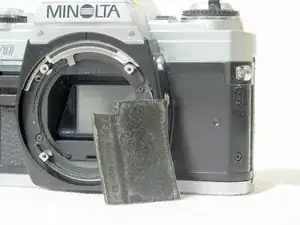

    • Using the metal spudger, peel off the right leather cover.

    • Be careful not to tear the cover because you will need to use it again.

  9. Bq2QRiJ4TnanvAVP
    Bq2QRiJ4TnanvAVP
    CpFGtWqXAj3Dnpvm
    O6ypAAhRaSF6MeZH

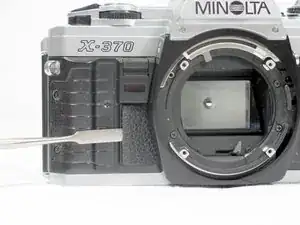

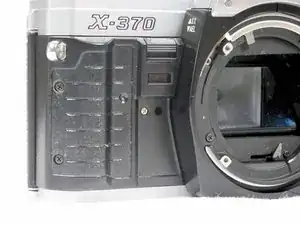

    • Use the metal spudger to remove both the grip cover and the left leather cover.

    • Be careful not to tear the covers because you will need to use them again.

  10. 4FtEhFxOEUIPDXWY
    4FtEhFxOEUIPDXWY
    nMOm2gVMLTsAKGoy

    • Remove two 5.3mm screws.

    • Remove two 5.3mm screws.

    • Remove one 2.35mm screws.

  11. kIGO1uhKvI46pHMK
    kIGO1uhKvI46pHMK
    BnYNDUx5URvEYX2X

    • Remove the left and right plastic covers.

  12. FtkQHubBm3wCdDf4
    FtkQHubBm3wCdDf4
    JZv4QY3kWgSCpvng
    4iIOy2NLynMkoHs1

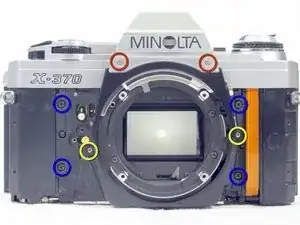

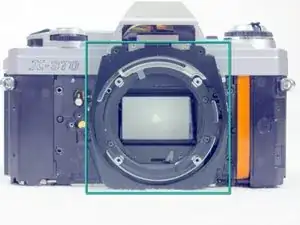

    • Remove two 6.65mm screws.

    • Remove two 2.93mm screws.

    • Remove four 5.3mm screws.

    • Remove the black plastic lens holder.

Abschluss

To reassemble your device, follow these instructions in reverse order.
