This guide is inspired by the Dell 1150 Service Manual and all steps are in accordance with it.
Werkzeuge
-
-
Place the laptop upside down on a clean, flat surface.
-

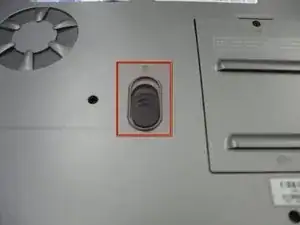

Locate the battery release button with the padlock symbol above it.
-
Slide the battery release button towards the padlock symbol and hold it there. Note that the button is spring loaded and will return if released.
-

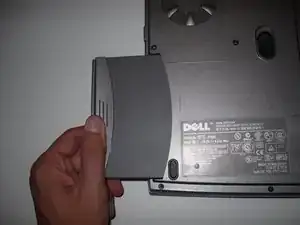

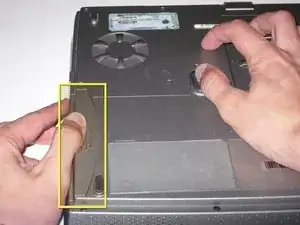

Gently remove the battery from the side of the laptop.
-
-
-
Place laptop upside down on a clean flat surface.
-

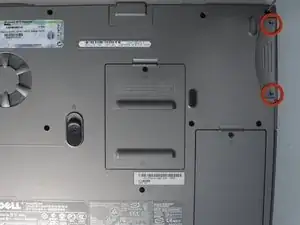

Remove 2ea M2.5 x 5 mm screws.
-

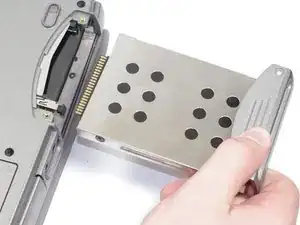

Pull the HDD from main body of the laptop.
-
-
-
Place laptop upsid down on a clean flat work surface.
-
Remove the Philips M2.5 x 8 mm screw
-

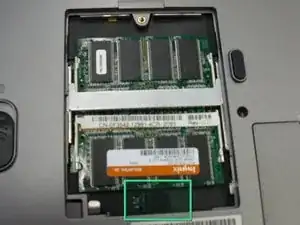

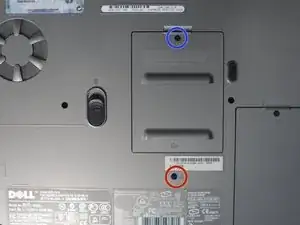

Loosen the screw that holds the memory compartment closed
-

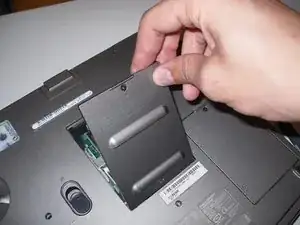

remove the memory module compartment cover
-
Press the Optical Drive release lever to the right and the optical drive should slide out of the case
-
-
-

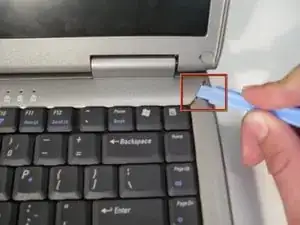

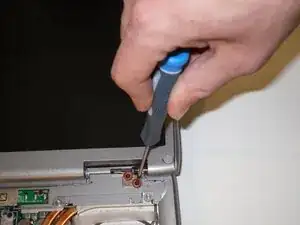

Use a spudger to lift the notched right edge of the hinge cover, and pry it loose
-
Lift the hinge cover off and set aside
-
-
-

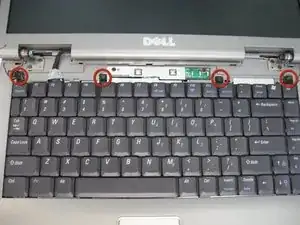

Remove 4ea M2 x 3mm keyboard screws
-

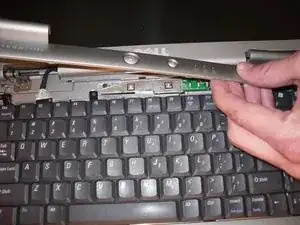

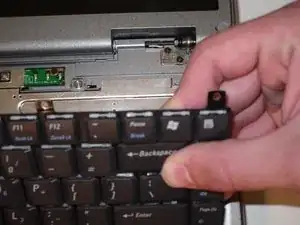

Lift up keyboard from the rear to expose the connector below
-
Disconnect the keyboard ribbon cable from the mother board
-
-
-

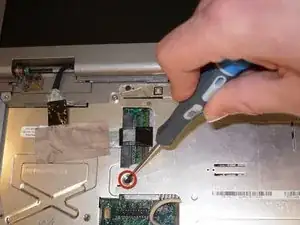

Remove 1ea M2.5 x 8mm screw holding the EMI shield in place
-
Remove the EMI shield to expose the LCD ribbon cable
-

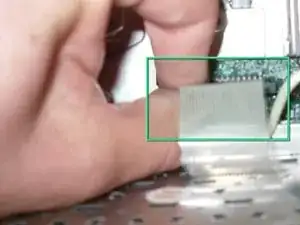

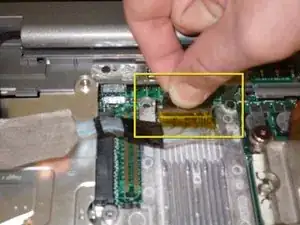

Gently pull up on the tab to disconnect the ribbon cable from the main board
-

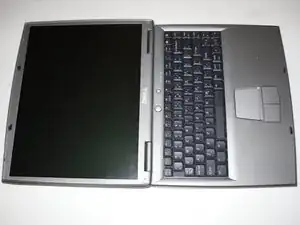

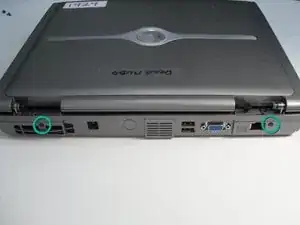

Close the lid carefully and remove the two M2.5 x 5-mm screws from the rear of the case
-
-
-

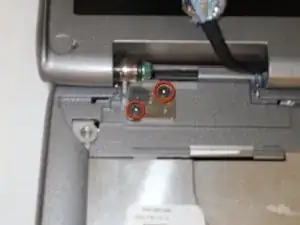

Remove 2e M2.5 x 5mm screws from each hinge bracket
-

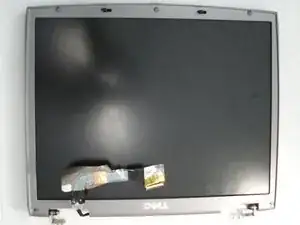

The Display Assembly can now be lifted free of the laptop body
-
To reassemble your device, follow these instructions in reverse order.
