Removing the Solenoid Replacement

Geschrieben von: Shane Villalpando
  • Kommentare: 1
Removing the Solenoid Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

  1. 25NjWjUYjjQkb2Ft

    • Gently use tweezers to detach the white vision wire harness, located directly under the feed tube.

    • Another small tool or your fingers will work for this.

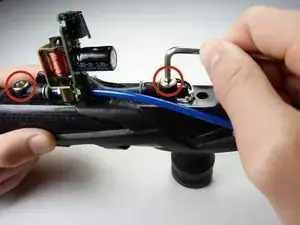

  2. Nd15JTrWVugfLZVY

    • Remove the two 1-1/4" screws on either side of the circuit board using a 3/32" allen wrench.

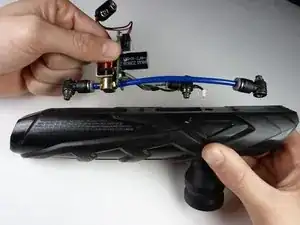

  3. dumZ6Ed1PKIvnDwl

    • Separate the solenoid from the gun's body by gently pulling it upwards.

    What do I do if the forward screw broke off on the blue air hose. Where can I get a new screw?

    Imaki2018 - -

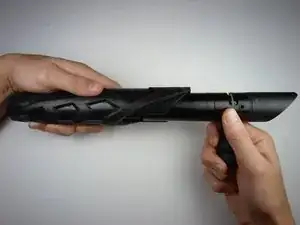

  4. QAdgQdmjDVuDaECR

    • Slide the metal body out of the plastic shell by holding one in each hand and gently pulling apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
