SSD Replacement

Geschrieben von: Léo FRAYSSE
  • Kommentare: 0
SSD Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

2 Minuten

Einleitung

  1. EbaTBQtaIeWOwpdR
    EbaTBQtaIeWOwpdR
    hLg3tYnwVcTO4sSG

    • remove the feet with a spudger

  2. nC2KXXjDhsfunSKI
    nC2KXXjDhsfunSKI
    dMdB2IodjA52KH6T

    • Remove the 11 screw with a PH0 screwdriver.

    • The screws are identical

  3. yXsI2OGTfbyLMUuR
    yXsI2OGTfbyLMUuR
    otgBrjCmMCfuWCtc

    • Insert a spudger between the bottom cover and the keyboard module, then go around the whole cover to uncip everything.

    • Remove the bottom cover from the computer.

  4. s2bTOnY2gW1ZSgHh

    • You now have acces to the inside of the machine.

  5. JS5PIMDmTMknXCKh

    • remove the screw with your PH0 screwdriver

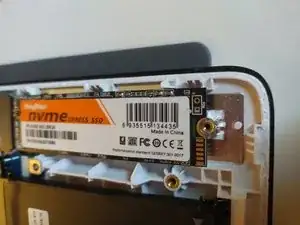

  6. hZp6vcmncLsrunbR
    hZp6vcmncLsrunbR
    aqQ1aDRDl5WSsKjL

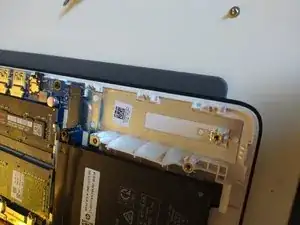

    • slide the SSD out of the m.2 slot

    • It may be necessary to slightly lift up the back of the SSD

    • The SSD is now removed

Abschluss

Install your SSD

To reassemble your machine, follow the instructions in reverse order.
