Replacing Peugeot 306 Spark Plugs

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

This guide will show you how to remove and replace the spark plugs of your Peugeot 306 1.8 16v petrol engine.

It is recommended to clean your sparkplugs when a warm start is difficult or slowing down seems unstable. Dirty sparkplugs can result in a weaker spark or even no spark at all.

The lifespan of a sparkplug varies between 30,000 to 60,000 km (18,640 to 37,280 miles), depending on the brand and use of the vehicle.

  1. afrelpAEh64oe4Nv
    afrelpAEh64oe4Nv
    1ubMLvj6TOql3X33
    f6BYFYkW1qEuftXg

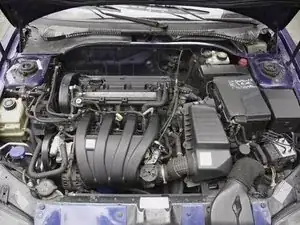

    • Open the engine hood of the vehicle, using the lever located bottom left of the dashboard, by the pedals.

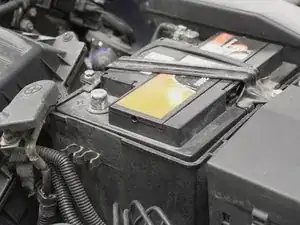

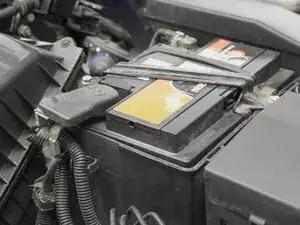

    • Locate and then disconnect the car battery.

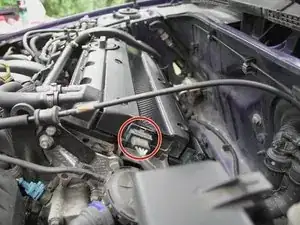

  2. qNfldCrn2OfDgfTm
    qNfldCrn2OfDgfTm
    jvrvBSabhBDHtKNi

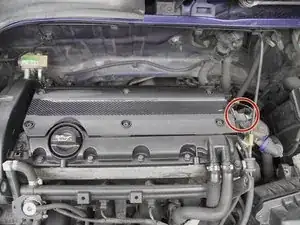

    • Identify the ignition coil pack connector.

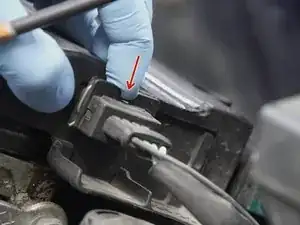

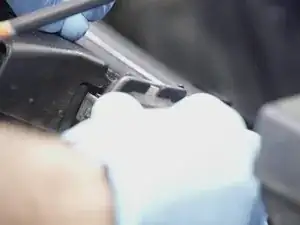

  3. cuwqufHnEt6jOyDW
    cuwqufHnEt6jOyDW
    xS53kRT2plVA6BgP
    x3GSToKBJZlOIGOG

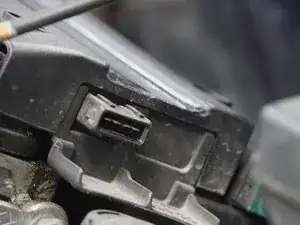

    • Press the locking rod near the bottom to release the connector.

    • Disconnect the ignition coil connector.

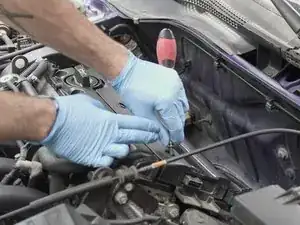

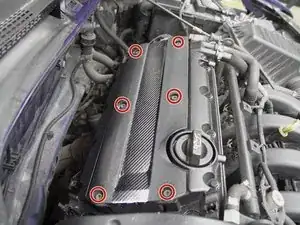

  4. WR3UC4Aa5F6yEfDi
    WR3UC4Aa5F6yEfDi
    lqelojpdC3HpvqIJ
    RWcMVZ6u4XYKttsr

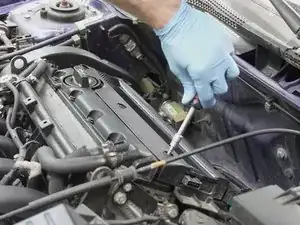

    • Locate the six H4 screws on the ignition coil pack.

    • Use an H4 (or T30) screwdriver to unscrew the six screws.

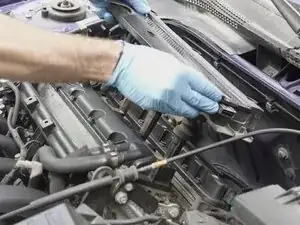

  5. QuRlZeFIY5aHQkPi
    QuRlZeFIY5aHQkPi
    nykUdrZ1l4Q2ZYaA
    qNiWfFGnPsjvWfPc

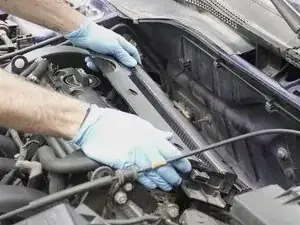

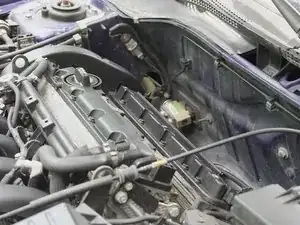

    • Grip the ignition coil pack on both sides and pull it directly upwards to remove it.

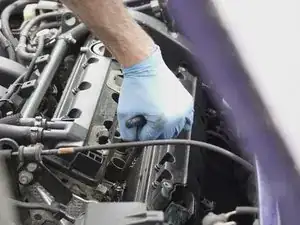

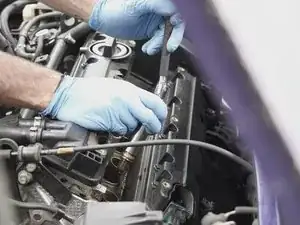

  6. Htu5eQfePhkNxjCk
    Htu5eQfePhkNxjCk
    KgNxAI3PhYsTT26B
    wKBXWOrpUMgemVZj

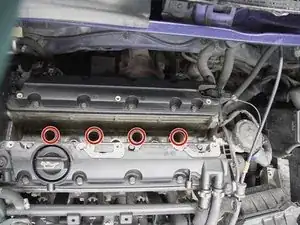

    • Locate the four spark plug chambers.

    • Grab a spark plug wrench (size 16mm).

    • Insert the wrench into the first spark plug chamber, until you reach the bolt.

    • Certain spark plug wrench are equipped with a rubber joint to help with extracting the spark plug. It is therefore necessary to apply light pressure to correctly reach the spark plug's bolt.

    • Unscrew the first spark plug, remove it from its chamber.

    • Continue in the same manner for the other three spark plugs.

  7. rjGSHG6vJSBZEVlY
    rjGSHG6vJSBZEVlY
    3HCF6UQwrPRjWPrm

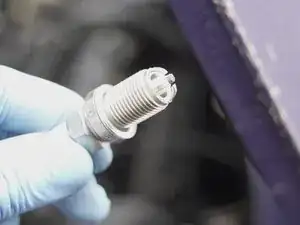

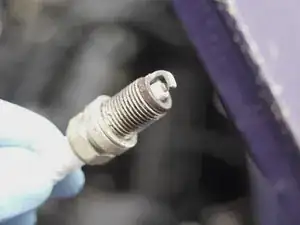

    • You can now proceed to clean or replace the spark plugs.

    • The cleaning of a spark plug can be done with contact cleaner and a brass brush.

    • To reinstall the spark plugs, repeat this procedure in reverse.

    • When reinstalling, be sure to rest the spark plug as straight as possible, to align the thread axes of each spark plug. The recommended tightening torque is 29Nm (21.4 lbft)

Abschluss

To reassemble your vehicle, follow the instructions in reverse order.
