Replace the thermal fuse on a GHD Classic V

Geschrieben von: Caplou.com
  • Kommentare: 3
Replace the thermal fuse on a GHD Classic V

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Use this guide only for GHD Classic V, Mini and Max when they are unresponsive.

  1. WIgfnXfcXYnGMPd6
    WIgfnXfcXYnGMPd6
    ZETECavxrPFZxdSO

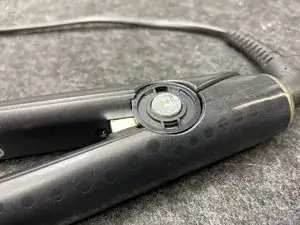

    • Before you begin, unplug your ghd hair straightener.

    • Remove the two plastic hinge covers located on each side of the ghd by using a thin and flat spudger.

    • The plastic hinge covers are attached via two clips. Be careful not to break the clips.

  2. YEUrqv5E46ZXtg46
    YEUrqv5E46ZXtg46
    TFQSiTSsZqV3kVGu

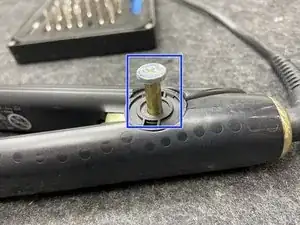

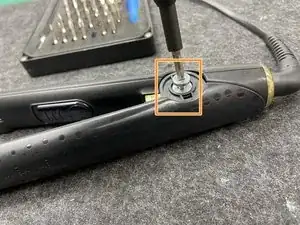

    • Unscrew the right side hinge support.

    • Remove the centering tube.

    • If unscrewing proves difficult, try using a Philips screwdriver on both sides of the tube.

  3. Sed6FQfYIJTDPDAc

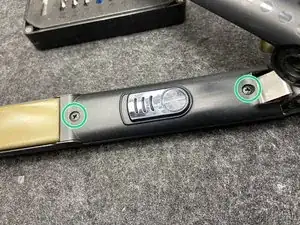

    • Unscrew both Philips screws to remove the cover.

    • The heat fuse is on the power button's side.

  4. vrbFdVXm1iHP5LCT
    vrbFdVXm1iHP5LCT
    RtrTPH1rkL2CCCDu

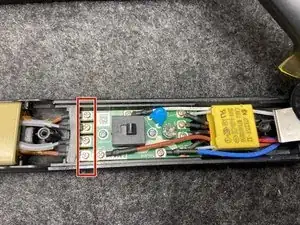

    • Unscrew the 4 screws from the the plate and then remove it.

    • The outer screws corresponds to the "Fuse" fuse. The center screws corresponds to the ceramic plate fuse.

  5. owcXlMVYXrDxPuaJ
    owcXlMVYXrDxPuaJ
    ObFIGBDSjTR2URCX
    EEnwqDUDLQCSoyat

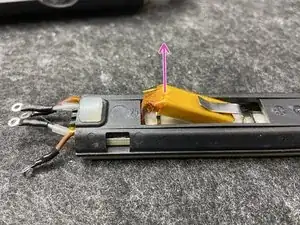

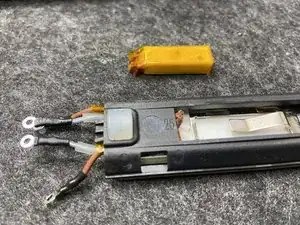

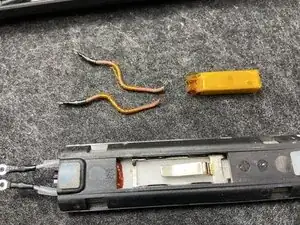

    • Slowly lift the fuse and cut the two cables with your wire cutter.

    • You can now remove the fuse from its compartment as well as the two cables by pulling on them towards the front.

  6. KKwkH6bsVFrx3oED
    KKwkH6bsVFrx3oED
    4FKQZxKl1QBsjJIn
    cIlxYHKfGacQejmI

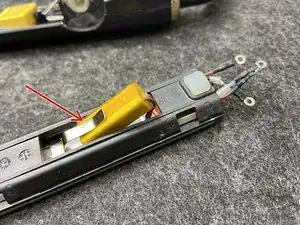

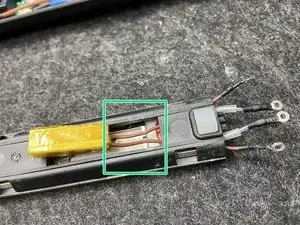

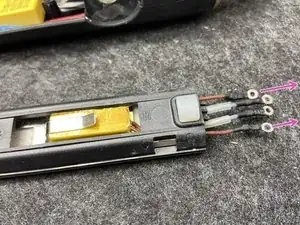

    • Start by inserting your new fuse's cables and let about a centimeter of slack.

    • Insert the end of the fuse.

    • Pull on both cables outward to completely fit the fuse in its compartment.

  7. SjIIoVTTGDAqRv2X

    • Watch out: the two white cables are screwed in the center; the brown cables are screwed at the outer posts.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Caplou.com

Mitglied seit: 24/03/21

169 Reputation

3 Kommentare

Thanks for this! I am searching for a suitable fuse replacement, will this one work?

TB05-BB5D-145 (up to 160°C)

https://www.conrad.de/de/p/tb05-bb5d-145...

Francisco -

Bonjour, non ce fusible thermique n'est pas compatible, la température de déclenchement n'est pas la bonne, de plus la taille de celui-ci est trop large et le branchement ne comporte pas les deux connecteurs.

Si vous avez besoin du modèle correct, veuillez nous contacter ici: https://caplou.com

Belle journée

L'équipe Caplou

Caplou.com -

Parfait merci beaucoup il re fonctionne !!!

sourya lasfar -
