Einleitung
Replacing the hard drive on this device is quite easy as all of the components are accessible by removing a single cover.
Werkzeuge
Ersatzteile
-
-
First, turn off your laptop, then disconnect the power supply. Unplug any peripheral devices connected to your laptop.
-
Next, remove the battery from the laptop.
-
-
-

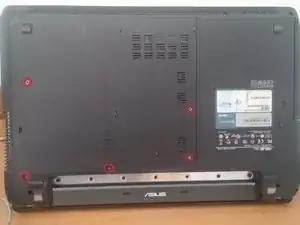

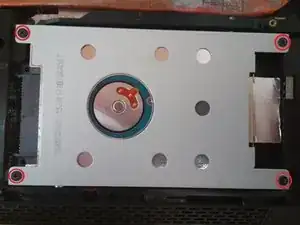

Remove the 4 screws circled in red in the photo.
-

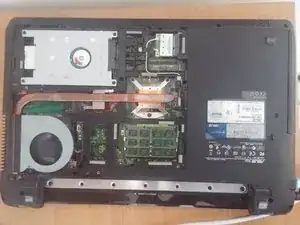

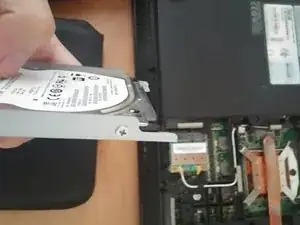

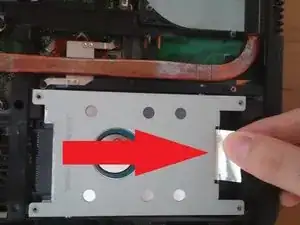

Once the screws are removed, slide the hard drive to the right, with the help of the tab.
-
-
-

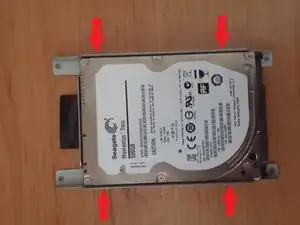

Remove the 4 screws located on the side of the support.
-

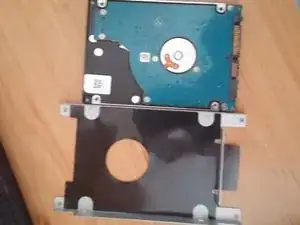

Then, remove the hard drive form its metallic support.
-
Finally, replace de hard drive with a new one or an SSD.
-
To reassemble your device, follow these steps in reverse order.
