Replacement the hard disk on Dell XPS 12 9Q23

Geschrieben von: Schwarzer
  • Kommentare: 1
Replacement the hard disk on Dell XPS 12 9Q23

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Do you want to change your hard disk to increase its capacity or replace it, because it no longer works? Perfect, you've come to the right place, this tutorial is for you!

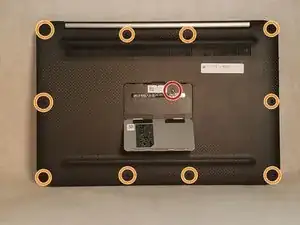

  1. PQjALRJOV1toEmAZ

    • Pop the center cover open on the bottom cover.

    • Remove the center screw with a #00 Phillips screwdriver.

    • Use a T5 Torx screwdriver for the remaining screws around the edge of the bottom cover.

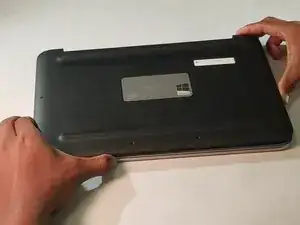

  2. aTsAitbJDBuSfWi1

    • Carefully remove back panel after all screws have been removed.

    I suggest sliding an opening tool along the front of the case first to pop the plastic snaps holding the cover to the bottom of the laptop. The snaps near the hinges are the most challenging. It is also important, when following these directions in reverse order, to fit the right side of the case over the sliding power switch before applying downward pressure required to snap the case bottom back into place. Wouldn’t want to break your power switch.

    Jeremy Tilden -

  3. dMqN3cTM34jLpS4o

    • After the back panel has been removed, disconnect the battery to prevent electrical shock

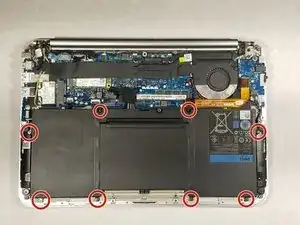

  4. IhmDnYLPyoC1bZ1k

    • Use a Phillips #00 screwdriver to remove the 8 screws that secure the battery.

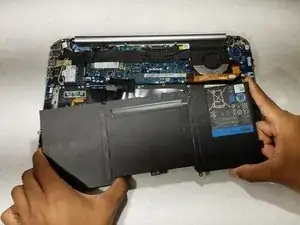

  5. HgcclMZKOf5ijIvp

    • Once all the screws have been removed the battery is now safe to extract

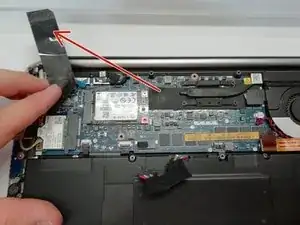

  6. DxxPNuJgS4lyyeiw

    • We removed the battery to avoid electric shocks.

    • Remove the adhesive tape.

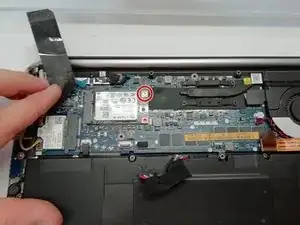

  7. 6StFYCcIKuZhTNEj
    6StFYCcIKuZhTNEj
    PJDLMx2D1AZXjmQV

    • Remove the screw with a #00 Phillips screwdriver.

    • Remove the hard disk from its location.

Abschluss

To reassemble your device, follow the instructions in reverse order.
