Replace or add RAM

Geschrieben von: Léo FRAYSSE
  • Kommentare: 0
Replace or add RAM

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

  1. EbaTBQtaIeWOwpdR
    EbaTBQtaIeWOwpdR
    hLg3tYnwVcTO4sSG

    • remove the feet with a spudger

  2. nC2KXXjDhsfunSKI
    nC2KXXjDhsfunSKI
    dMdB2IodjA52KH6T

    • Remove the 11 screw with a PH0 screwdriver.

    • The screws are identical

  3. yXsI2OGTfbyLMUuR
    yXsI2OGTfbyLMUuR
    otgBrjCmMCfuWCtc

    • Insert a spudger between the bottom cover and the keyboard module, then go around the whole cover to uncip everything.

    • Remove the bottom cover from the computer.

  4. s2bTOnY2gW1ZSgHh

    • You now have acces to the inside of the machine.

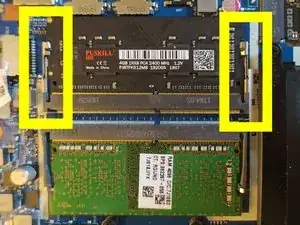

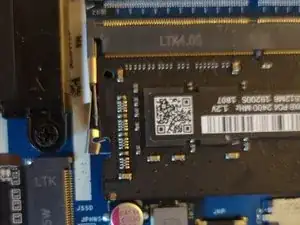

  5. HHEqOAH5Xr1JYlxt
    HHEqOAH5Xr1JYlxt
    JywZfBKSCfb6Rxfu
    fvJSQTsIM3m5xHX3

    • Flex the metal retaining clips on the side of the RAM away from one another.

    • If done correctly, the RAM will pop out of its lock.

    • To insert a module, angle it as shown in the third picture, then insert it and push it down until it locks.

Abschluss

To reassemble your device, follow the steps in reverse order.
