Repairing AcuRite Intelli-Time Alarm Clock Unresponsive Buttons

Geschrieben von: Nicholas Roppolo
  • Kommentare: 0
Repairing AcuRite Intelli-Time Alarm Clock Unresponsive Buttons

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

  1. NAKKmZZLqaSKXe2H

    • Flip device upside down and remove the 4 foam pads at each corner.

    • Remove the 4 screws using a Philips Screwdriver.

    • Gently lift the case off of the body and set down in a safe place.

    • Unscrew Circuit board attached to the top of the case with the one screw in the center. Be careful not to strip the screw/break the circuit board.

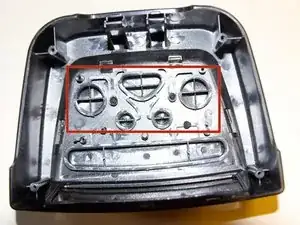

  5. yaRSRrJB3AC1yXFG

    • Make sure all of the buttons are move-able.

    • Press buttons on circuit board while listening for a click.

    • If everything works on the inside, that might mean you need a new circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
