After several years, the clock projector of my RRM320P was missing some segments.
Suspecting that issue could be related to some poor electrical contact I decided to try to repair it
Werkzeuge
-
-

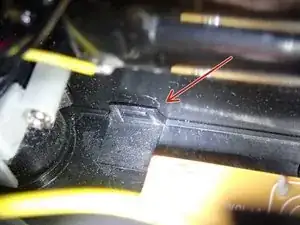

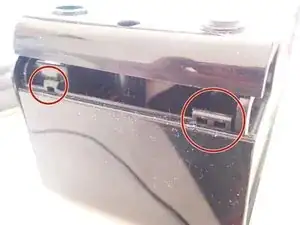

After removing the 2 screws on the bottom, carefully open the bottom frame, see location of the plastic snaps snaps
-
-
-

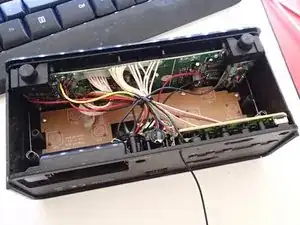

Removes the back panel, taking care of the other plastic snaps
-

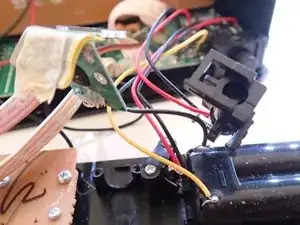

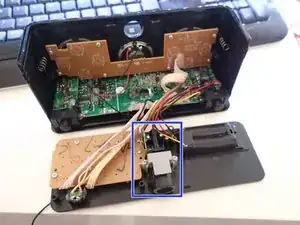

The projector and its optics is shown in the blue square
-
-
-

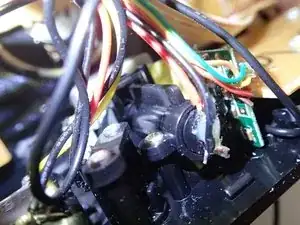

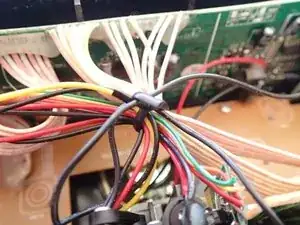

cables are tied together with a simple ribbon, in general the inner construction seems very cheap
-
The Projector is made of three parts:
-
A red LED
-
The display with its controller
-
the lens with focus mechanics
-
All parts are kept by tiny screws that you have to remove
-

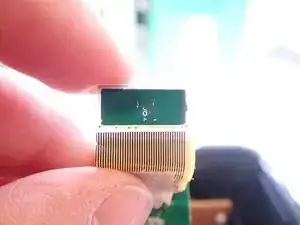

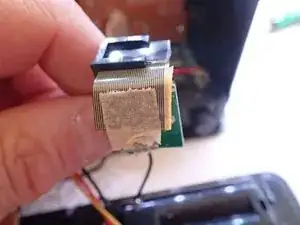

Take extra caution when handling the display, the flat cable is very weak and can be damaged by improper handling
-
-
-

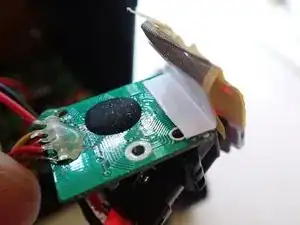

Carefully remove display from its supporting frame
-

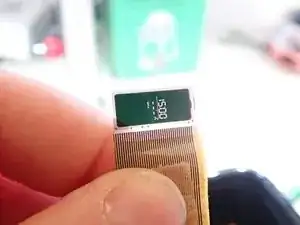

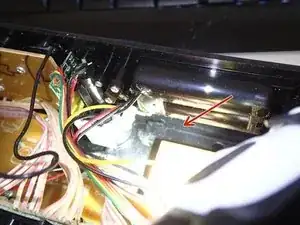

The issue should be ralated to flat cable connecting display to controller
-
-
-
Verify that moving the flat the display returns to work
-

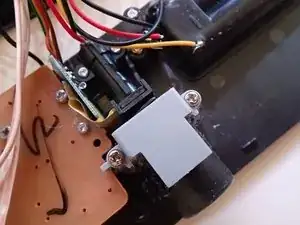

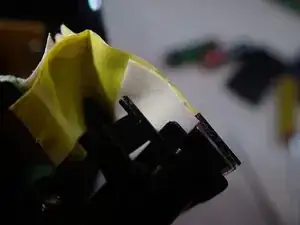

put a stiffner on controller side and close to the display
-
if everything is working, reassemble the clock by doing the steps in reverse order
-
To reassemble your device, follow these instructions in reverse order.
