Repairing Black and Decker BL3000S Power Cord

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

  1. XP1pNksXIg1JuZiu
    XP1pNksXIg1JuZiu
    mLjpsoHSZOE3dVUA

    • Before disassembling the blender base, make sure the blender disconnected from any power outlet.

    • Lift the jar straight up from the base without tilting the jar.

  2. SdajC3TWRuQLTsF1

    • Remove the top three 1/4 inch base screws using a Philip's head screwdriver.

  3. OFskxagS5s2sMh1S
    OFskxagS5s2sMh1S
    WkxxOcS5KSCrRQFH

    • Remove the two base leg covers next to the power cord using pliers or a flat-head screwdriver.

    • This provides access to the base screws beneath.

  4. V2qRJCVqgwuJVHQE

    • Remove the following screws that secure the top and bottom halves of the base.

    • One 1/4 Phillips screw

    • One TA-20 screw

    • Both screwdrivers must have a minimum of a three inch shank (length).

    • Screwdrivers with extenders will not fit down the access holes.

  5. mWFNnbdsILQ6UMoR

    • Lift the top half of the base from the bottom half of the base to reveal the internal mechanism.

  6. O3WZnQIHan5bPOCD

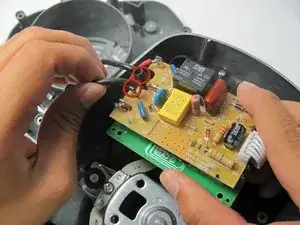

    • Tug on wires in the marked locations to make sure they are secure.

    • If the wire stays still, the connection is secure.

    • If you still have problems with the blender, it is probably a problem with the motor. Since the motor is irreplaceable, you will have to order a new blender.

  7. xdncMMxqXXBPnvrV

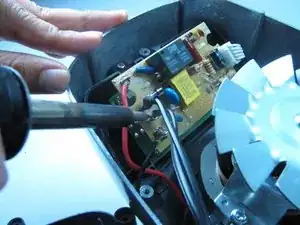

    • If the wire comes off, the connection is insecure. You will need to solder the connection to make it solid again.

    • If you don't know how to solder, here is a link to show you how. http://www.aaroncake.net/electronics/sol...

Abschluss

To reassemble your device, follow these instructions in reverse order.
