Repairing Buttons on Casio fx-300ES Calculator

Geschrieben von: Daniel Riedeman
  • Kommentare: 8
Repairing Buttons on Casio fx-300ES Calculator

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Is a button on your calculator hard to push or stuck in place? This inconvenience can be easily fixed with this guide. You will be removing components of your calculator in order to reveal the buttons and then carefully making the necessary changes. In no time you will have your calculator up and running again.

  1. kJglQyHhMZFHiBeg
    kJglQyHhMZFHiBeg
    2H4uOtvxCeKStiTx

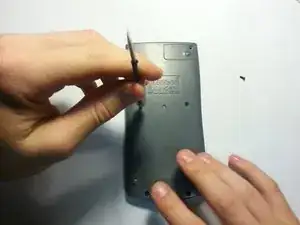

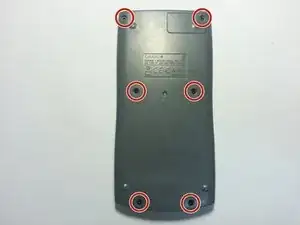

    • Remove the six 5 mm screws on the back of the calculator.

  2. VTZDQJUnOCKFauuE
    VTZDQJUnOCKFauuE
    5xDon4cnpn4QnQCH

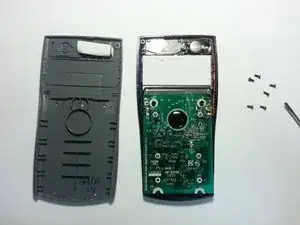

    • Carefully remove the back plate to reveal the circuit board and the battery.

    "the" circuit board and battery.

    Timothy Wong -

  3. mGuXyFmj3P3Swl46
    mGuXyFmj3P3Swl46
    O2YQDgru4VsibJ6V
    C1L5552plMSpaXNJ

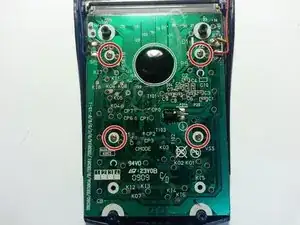

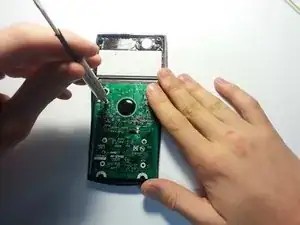

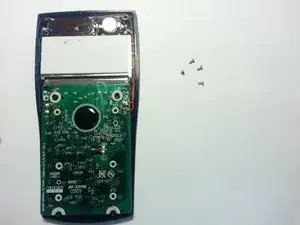

    • Remove the four 4 mm screws from the circuit board.

    remove "all" four screws from ...

    Timothy Wong -

  4. Jg2x6JDnpaJFhZFW

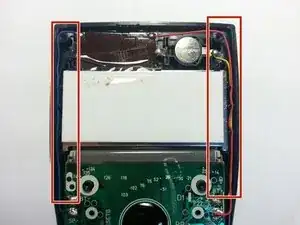

    • Be aware of the placement of the blue, black, red, and yellow wires because they will fall out when the next step is taken.

  5. XTDpip5QidZLZBKw
    XTDpip5QidZLZBKw
    T41Vvbf3LVawTd6g
    IqKfUYNPWitawqIq

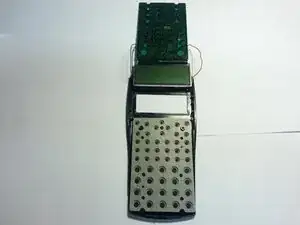

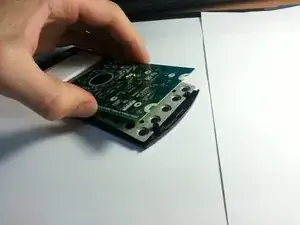

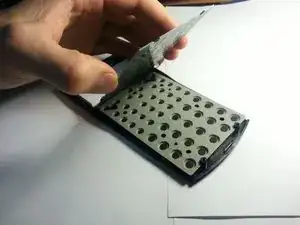

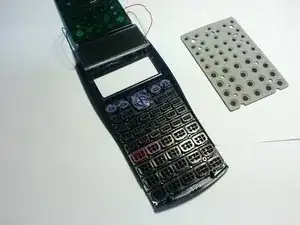

    • Carefully lift the circuit board while leaving the grey rubber piece face down.

    • Simply flip the circuit board and the screen over but do not remove them fully.

    • Make sure the calculator is face down.

    • Buttons are loose do not flip calculator over.

    flip up "the" circuit board

    Timothy Wong -

  6. 5pvlMvcbndoZkORo
    5pvlMvcbndoZkORo
    jlqlguieFrhOFsxQ
    bjTZZRDYeFYOZIwS

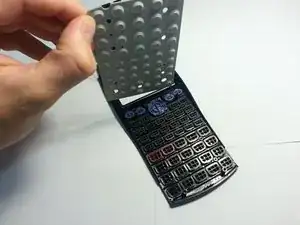

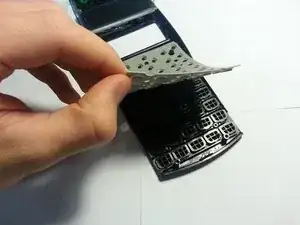

    • Now lift the grey rubber piece off to reveal the individual buttons.

    • Buttons are loose make sure they do not come off with the rubber piece.

    to "the" stuck button(s).

    Timothy Wong -

  7. DCWn5HfRV2xHTjTH
    DCWn5HfRV2xHTjTH
    ZuRtaSakYdbboFfO
    uXsBHBXeK6r2huMB

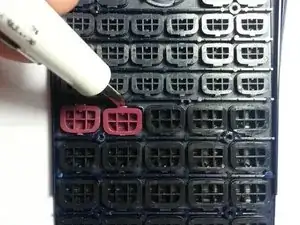

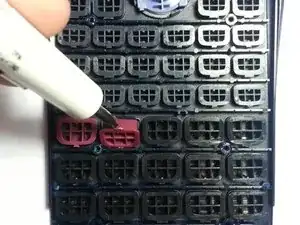

    • To remove the buttons you can use your screwdriver and lightly flip them out of their individual spaces.

    • You can now access all the buttons and make any alterations needed.

  8. EJBlb1aTMJa6lwMT

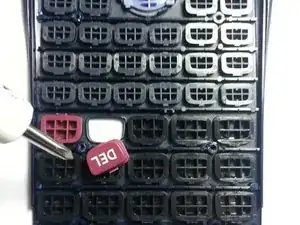

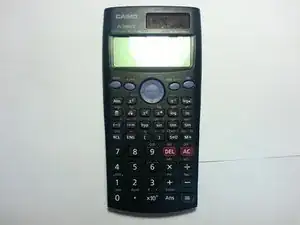

    • Refer to this picture if any buttons get misplaced or fall out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
