Einleitung

Apparently, there is conductive paint on each button that allows a button press to send signal. After many uses of the power button, it became more and more difficult to work it. I researched a couple ways to fix this and ultimately did a cheapo hack.

  1. AhOhKdjqjYIxPqHU

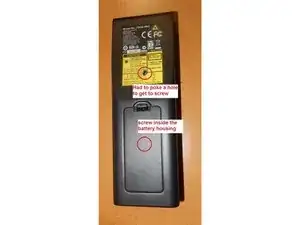

    • There are two screws on this remote controller. One behind the yellow sticker. One in the battery housing.

  2. GULwPY6WOdjslCd1
    GULwPY6WOdjslCd1
    hFFkm3RtNsriBIQ5

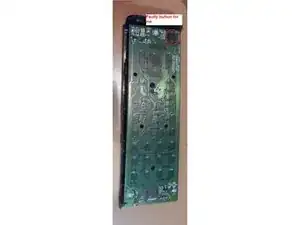

    • Using a spudger to ease the two pieces apart will help you get started. Pulling will most likely cause a break in the snap-in pieces.

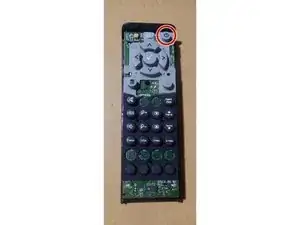

    • Draw a thick layer of graphite onto a piece of paper.

    • Rub the piece of paper onto the membrane. Test the button for conductivity.

Abschluss

To reassemble your device, follow these instructions in reverse order.
