This guide will show you how to dismantle the laptop in order to reestablish loose connection between the monitor and laptop of a Compaq Presario CQ60 Notebook PC .
Werkzeuge
-
-
Remove the 6 outer screws on the underside of the laptop.
-
Open the battery compartment and remove the 7 visible screws.
-
Pry the corners of the bezel at the base of the keyboard, pushing up until it loosens.
-
Carefully remove the ribbon connections of the keyboard, power button, and wifi button.
-

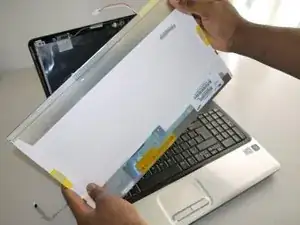

Disconnect and re-connect the white monitor ribbon located on the left side to make sure it sits firmly in the connection.
-
Reassemble the laptop by following these steps in reverse.
-
The monitor should work when powered on again.
-
To reassemble your device, follow these instructions in reverse order.
