Repairing Dolce Gusto Melody Water Seal

Geschrieben von: abc
  • Kommentare: 8
Repairing Dolce Gusto Melody Water Seal

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

A friend of mine had some issues with leaking water from the machine. So, we decided to try to repair it. With success :-)

  1. xBGSFSNYrGOYiOZD

    • Be sure to unplug the device before you begin the procedure.

    • Remove the 6 screws from the back.

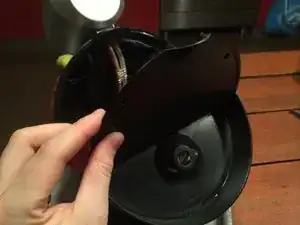

  2. CbGMTF26CM4Ey2XD

    • Gently pull at the top of the rear cover.

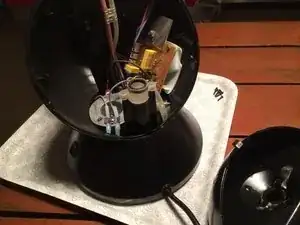

  3. 4nc5YYWDu2CCk33M
    4nc5YYWDu2CCk33M

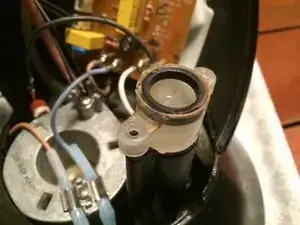

    cKMEL5x1uNHOAddb

    • Locate the dirty seal inside

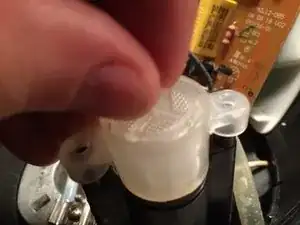

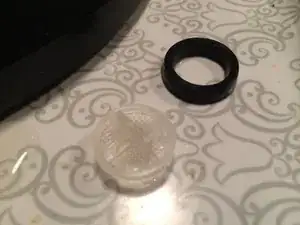

  4. DQStRSRCm4UcJC4V
    DQStRSRCm4UcJC4V
    nHDIFAEyHKlbMwMa

    • Pull out the rubber seal and the filter.

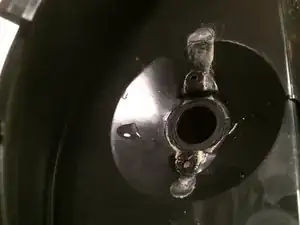

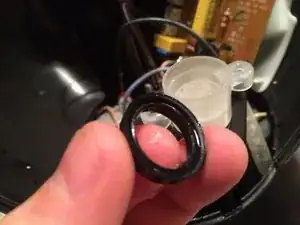

  5. u2Y5akBuHerPYQZM
    u2Y5akBuHerPYQZM
    dZmClQf1oSX3WWN6

    • Clean the inside of the cover, the rubber ring, the filter and the holder of the rubber and filter.

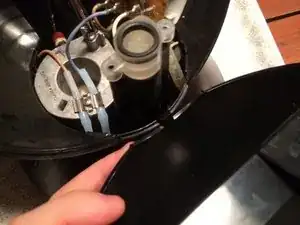

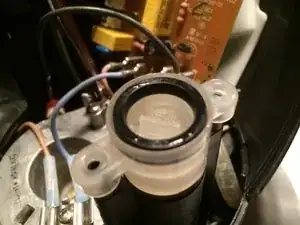

  6. IrgVcylIPSNV4SRx
    IrgVcylIPSNV4SRx
    qMADIhdZeiAVZqWk

    • Put it all back together... First the filter, then the rubber ring... You need the smooth side of the ring facing up.

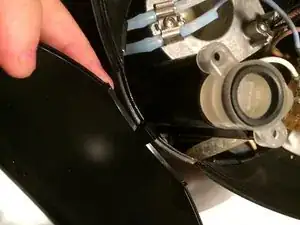

  7. lIZZkIjHqr6CllRN

    • Hook back in the back cover, be careful not to break the clip at the bottom

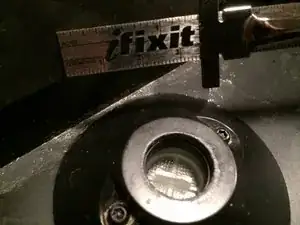

  8. XY2qMtnZMGwJa5Wy

    • Back together... And you are ready to make some coffee...

Abschluss

In case you notice the water seal rubber is broken or has tiny cuts in it. You can re-order part: MS-0907124 - Krups Seal

Tinte & Feder

abc

Mitglied seit: 22/08/13

515 Reputation

8 Kommentare

Hi! I do have that problem and that is probably the reason why it leaks as I live in an area of very hard water.I am trying to follow your instructions but I can find the right screwdriver to open it up.Do you know how do they call the bit I need to open it up?thanks

Cfernandez -

I think it's pierced star T10

Hugo Valgalier -

Really helpful - thanks so much I think it has done the trick !

I didn't think I had the right screwdriver but then found it in a kit I bought recently.

traceyhealey -

Thanks! The same seal worked also with De Longhi EDG 600.B

Giulio Malventi -

Hi, just taken mine apart and although no crud on the seal I did notice that it was lower than the clear plastic suround it sits in. Either the seal isn't deep enough or its shrunk over time, hence the leak. Oh yes there are in fact 8 screw's in the black outer housing. Hope this helps.

Alan Stubbs -

mijn koffiezetapparaat is weer gemaakt (waterdicht) goede uitleg hoe te repareren :-)

corbrons -

My seal was in upside down but it has work for years, In the right way now. Many thanks

john smith -

Replacing this seal ist always a good idea! You can buy it easily using the indicated part Number: MS-0907124, but it's also sold by Jura and other brands.

VauWeh -
