Repairing EPSON B-510DN Error 0xF2 or 0xF3

Geschrieben von: delete
  • Kommentare: 14
Repairing EPSON B-510DN Error 0xF2 or 0xF3

Schwierigkeitsgrad

Moderate

Schritte

15

Zeitaufwand

20 Minuten

Einleitung

Stalled printer for error 0xF2 or 0xF3

This error happens when there are some problems with the encoder when the roller tries to move paper.

  1. Awg1jadfrnZJfDPc
    Awg1jadfrnZJfDPc
    hAiMOYFCZDHIfMTT
    VLVSfx3HfUTK4WHy

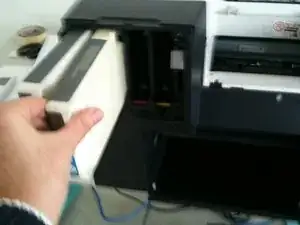

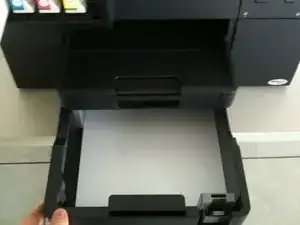

    • Remove the paper tray

    • Remove the paper cassette

    • Remove the ink tanks.

  2. GkM62qabpXsi2Ms1
    GkM62qabpXsi2Ms1
    3fZZ5yIHBVfNyuIn

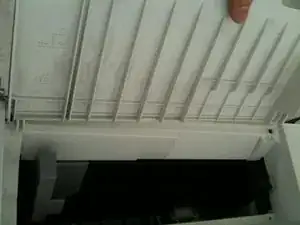

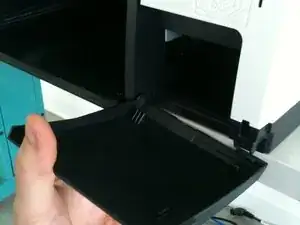

    • Remove the opening covers.

  3. QmuPOyMDsjrboxnl

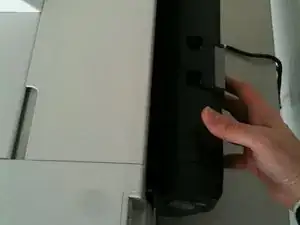

    • Remove the rear component

  4. PUCkFSC5EcXhilVM

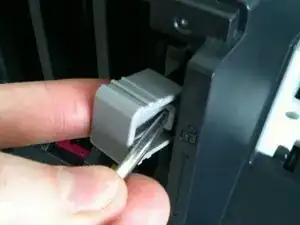

    • Dismount the Ink lever

  5. poPSqjBhJUAJaHKh
    poPSqjBhJUAJaHKh
    TkyNSyAahZZFrjwV

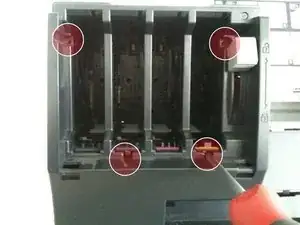

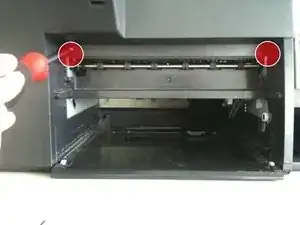

    • Remove the front panel screws

  6. mav3LEYprJoXmAS5
    mav3LEYprJoXmAS5
    KqCBAPVZ1RYkapT2

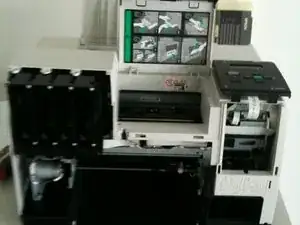

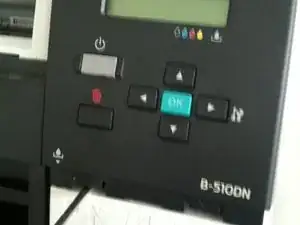

    • Dismount LCD Panel

  7. xrTe6ivOkQ4DJWSh
    xrTe6ivOkQ4DJWSh
    DVkapJM4eBQYbkp3
    I4sPTyKVZtseIjuN

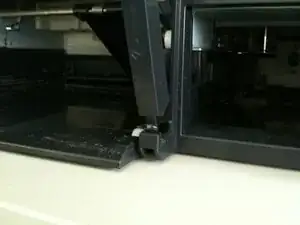

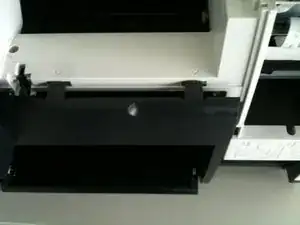

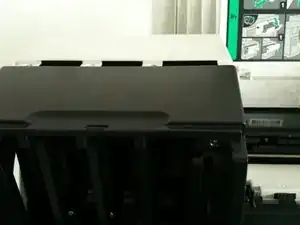

    • Remove the front panel

  8. MHnjkvCFfwYZQtlP
    MHnjkvCFfwYZQtlP
    fIFBbLLxfYDKlk6P
    khWAmSlPYCwPuPoD

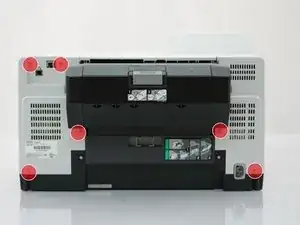

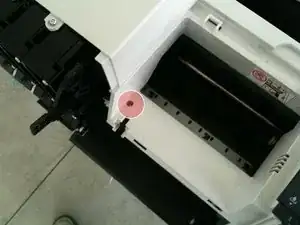

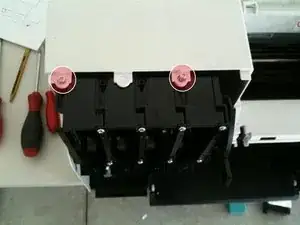

    • Remove the back panel screws

  9. F1Gb2C2Cbcv5BqQZ
    F1Gb2C2Cbcv5BqQZ
    t1sURZFKXGSVxKR5

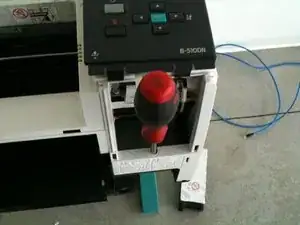

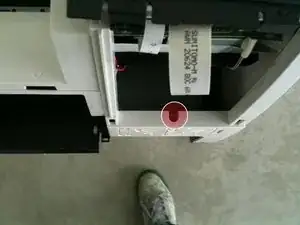

    • Remove the last back panel screw (hidden behind the LCD display)

  10. euS2j6AXoqD3WGkh

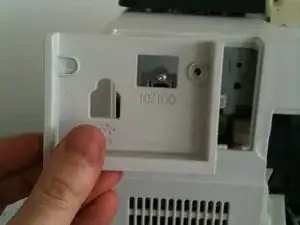

    • Remove the back ethernet panel

  11. Iqfw16WHRDLwurlR
    Iqfw16WHRDLwurlR
    3OeDeMjfHVZVAOAN
    tdNtTvBZWRYJxWH4

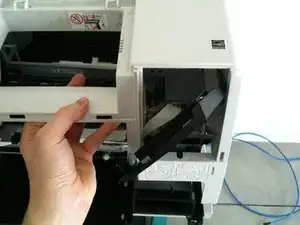

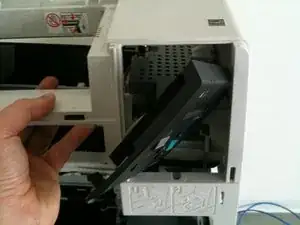

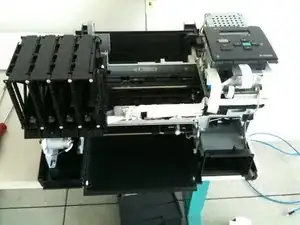

    • Remove the main back panel, being careful not to damage the LCD display

  12. JGYDD2MwJQlW5gOI
    JGYDD2MwJQlW5gOI
    cBEwGUdfnXxiLrVf

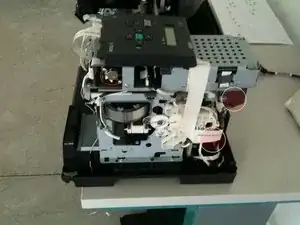

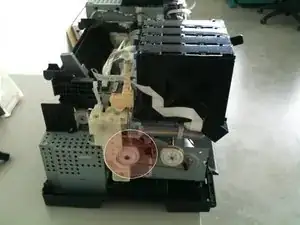

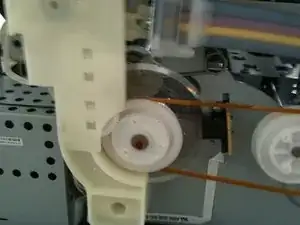

    • Clean the left roller very gently with a dry tissue or a soft brush

  13. wvgNWlVnmVGTQIDE
    wvgNWlVnmVGTQIDE
    ggH53x5iHtJMyTK4
    OrNpEIMFX2FR3fxU

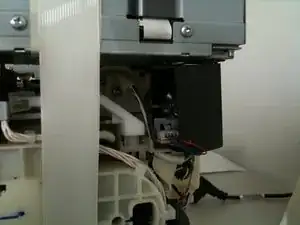

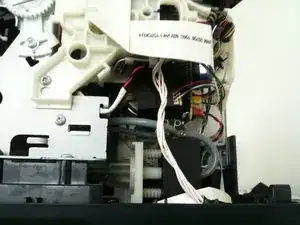

    • Clean the right encoder very gently with a dry tissue or a soft brush.

  14. D5Vo2FcMF3o1ND6K
    D5Vo2FcMF3o1ND6K
    HxRDNj2VMewmMPV2

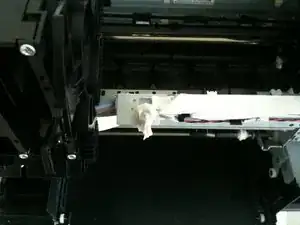

    • If you want to test the printer you need to insert paper, and cover 2 switches with tape.

  15. 5eMlOYn6CkNhJHMN

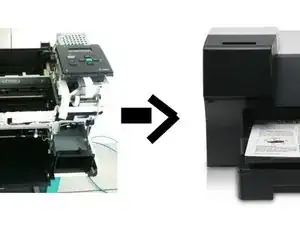

    • Reassemble the printer (remove the tape first if you have used it) following these instructions in reverse.
