Einleitung

Use this guide to patch a tire. This process may be a little difficult the first time it is attempted.

  1. RtctFnIHQsUgZUgJ
    RtctFnIHQsUgZUgJ
    FCTla1psZk3VdTqC
    WpHBjoJvSBMAGj5B

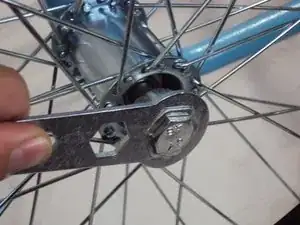

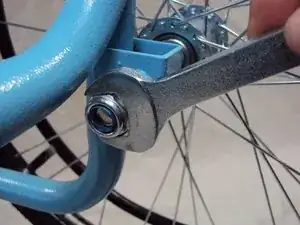

    • Unscrew the axle nut with a 19 mm wrench.

    • Unscrew the the axle bolt with a 19 mm socket wrench.

    • Remove the wheel from the wheelchair.

  2. OZQP5qIFig5CWBSb
    OZQP5qIFig5CWBSb
    jSLCGAxPmCxWdafI

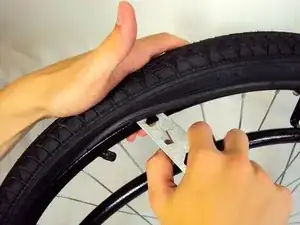

    • Insert the 19 mm socket wrench between the rubber tire and the metal frame.

    • Any rigid flat metal object can be used for this step.

    • Carefully slide the 19 mm socket wrench all the way around the tire. Bend the wrench down to pop the tire out of the bead of the rim.

    • When undoing the tire, be careful using the back of the wrench because the tool can damage the tire tube and or wheel frame.

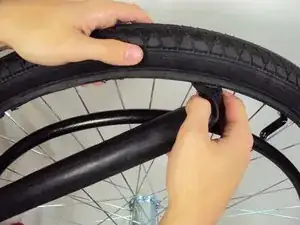

    • Reach inside the tire and remove the tube from the metal frame.

  3. afbxJQAnaYLxi41L

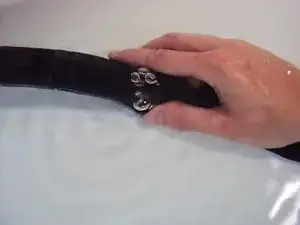

    • Take the inner tube from inside the tire and submerge the tube in water.

    • Squeeze the tube gently looking for bubbles from the tube in the water.

    • You can use where the bubbles are forming to locate the hole in the tube.

  4. PvGKFquAFpQUEsYQ
    • Dry off the tube.

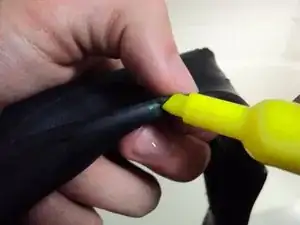

    • Pull the tube out of the water and mark the location of the hole on the tube so that it can be found again.

  5. IHrEkWD3DkCuJJnW

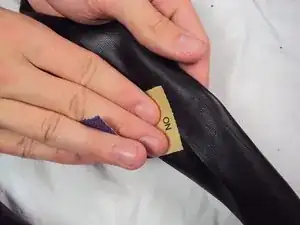

    • Use sand paper to texturize the tire tube.

    • Wipe off any excess rubber that was sanded off the tube.

  6. kKMbO4R5yjGnJOuf
    kKMbO4R5yjGnJOuf
    yQssuPbI5AQCajJN

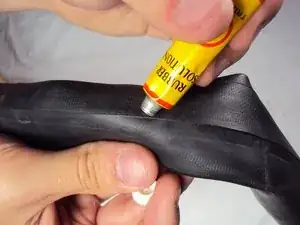

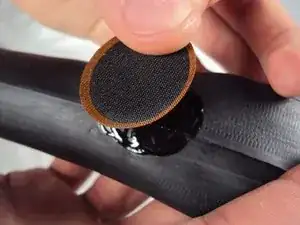

    • Apply a thin layer of rubber cement over the area that was marked.

    • The layer should be slightly bigger than the size of the hole.

    • Let the rubber cement set for 5 minutes.

    • Peel the patch off of the plastic backing.

    • Place patch over the area with the rubber cement and firmly press down until the patch is securely attached.

  7. ZWm2MgvuQVYBW4bk
    • Feel along the tire to check for and remove any objects stuck in the tire before replacing the tube.

    • Line up the air valve on the newly patched (partially deflated) tube with the hole on the metal frame before trying to insert the tube.

    • Working all around the tire, carefully push the tube back into place inside the tire.

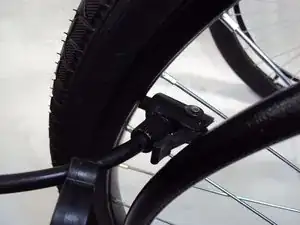

  8. qalG1v1OCqgXGLqW
    • Inflate the tire to 50 psi. If there is no gauge, inflate the tire until the tire is hard.

  9. HNJRXYAwhMARE1tJ
    HNJRXYAwhMARE1tJ
    PUpnkkbyEwJxvPhi

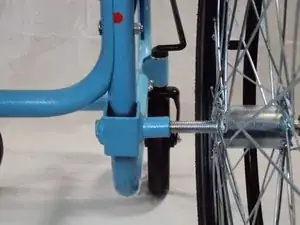

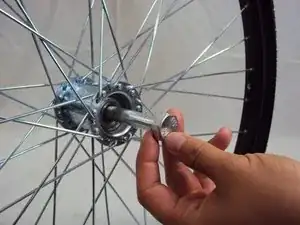

    • Insert the axle bolt into the center of the rear wheel.

    • Insert the wheel with the axle bolt into the lower back of the frame by screwing in the bolt.

  10. BcZEDENltfgCPQtr
    BcZEDENltfgCPQtr
    5bMunBp3RHDWMNfh

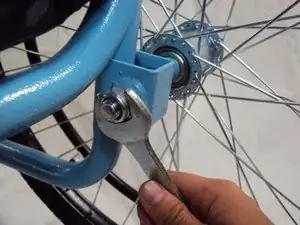

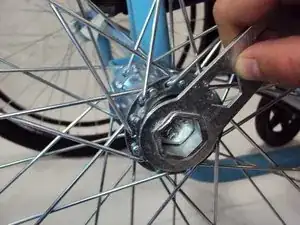

    • Secure the nut on the opposite side of the axle bolt and wheel. Tighten with 1/2 in or 19 mm wrench.
