Repairing Gateway 420GR

Veröffentlicht: 23/05/10

Teardown

Einleitung

Component teardown of Gateway 420GR desktop. This machine originally shipped with Windows XP.

  1. YyCkPZ4umOVFJTTb

    • The left panel of the case has thumbscrews that release the left side from the case.

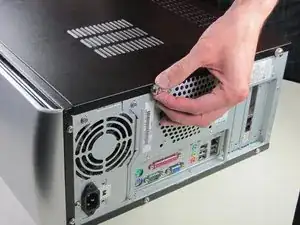

  2. EYJcUkKu4amZeVOU

    • Loosen the first thumbscrew

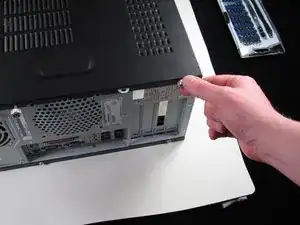

  3. KnbGnnoEoUHPWTTy

    • Loosen the second thumbscrew.

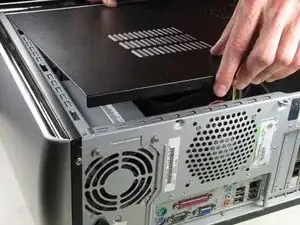

  4. NNZsmgaQcnbNWmSQ

    • The side panel will now slide toward the back of the case.

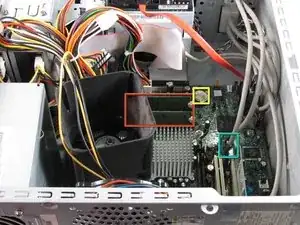

  5. NjRTk11HT4obNubc

    • System RAM

    • USB headers for front panel USB ports.

    • CMOS battery

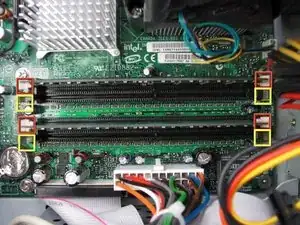

  6. PwrxkIq6oCKL5wTZ

    • Pair one RAM retention clips. There are two (one on each end) for each of the available slots.

    • Pair two RAM retention clips. There are two (one on each end) for each of the available slots.

    • RAM should be paired (same size) and the machine support up to 4GB or RAM as 1GB modules in each of the 4 slots.

    • System supported RAM is 184-pin DIMM DDR PC3200
