This guide explains the procedure that is necessary to repair a loose headphone jack. If you experience interrupted sound coming out of one headphone or sound coming only out of one headphone this guide may be the solution to your problem.
-
-

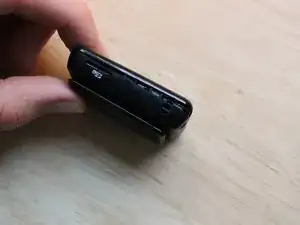

Gently, insert a guitar pick (or a similar plastic pry tool) into the upper right corner of the Clip+ between the two case halves.
-
With the guitar pick inserted into the two case halves make your way around the edges of the case.
-

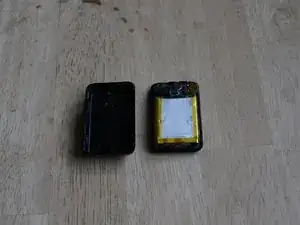

The plastic noses will come off easily.
-
-
-
Carefully lift up the battery which is glued to a memory chip.
-

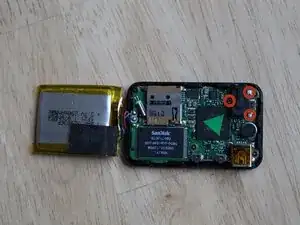

Identify the three soldering points around the headphone jack that are shown in the second picture. It is likely that at least one of them got loose.
-
-
-

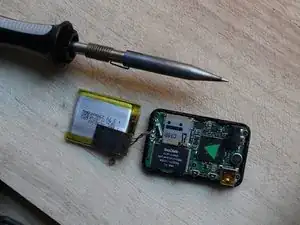

Take a thin soldering iron and heat up the soldering points one by one.
-

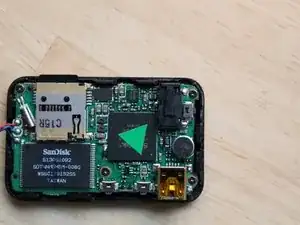

After soldering the headphone jack should sit tight on the mainboard.
-
Finally, take your preferred headphones and test the result.
-
To reassemble your device, follow these instructions in reverse order - of course without de-soldering.
