Repairing Minolta Dimage Xt Lens Cover

Geschrieben von: Megan Milam
  • Kommentare: 1
Repairing Minolta Dimage Xt Lens Cover

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

In the event that the lens cover is not functioning properly, either permanently opened or closed, it is necessary to align it properly on its spring arm.

  1. 4UkpgEgGYK6KWRZe
    4UkpgEgGYK6KWRZe
    BXyi2T5yKDhWIlNn
    i5vcFhkG6yvMIiRj

    • Locate and remove the silver screws on each side of the camera.

    • Use the Phillips #00 Screwdriver to unscrew all 2.0mm (4 instances) and 4.0mm (2 instances) screws.

  2. VQ5WTK5UOTLBajxC
    VQ5WTK5UOTLBajxC
    K2uZZmetQ6ZTiP3Q
    LoWdMMKZlOS1iByZ

    • Then, carefully pry apart the front and back outer casing away from the internal components.

    • Be aware of the ribbon wire that will disconnect when the casing is detached.

  3. UxwnmmMwk4xBOkpl

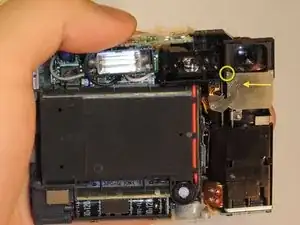

    • Place the internal electronics face-up. Look at the side with the flash turned towards you.

    • The lens cover is a small sheet of metal that rests directly infront of the lens when the camera is turned off.

    • Check to see if the spring action arm (what the yellow arrow is pointing to) is attached to the lens cover with the small knob in the corner (circled in yellow).

  4. 6oGQ6TpjgfbbTFgf

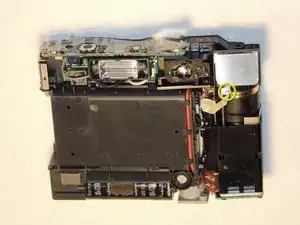

    • If the arm is not attached (as shown in the previous), use tweezers to place the arm over the knob on the lens cover.

    • Inside the yellow circle, the arm is in the correct position.

Abschluss

Reassemble the casing by reversing steps 1 and 2.

Tinte & Feder

Megan Milam

Mitglied seit: 11/03/13

28 Reputation

Ein Kommentar

In Bild 3 ist der gelbe Kreis falsch gesetzt: der kleine Knopf ist unten links an der Blende, wie in Bild 4 positioniert. hr

Hubert Rieping -
