Repairing Nokia 6500 Slide LCD

Geschrieben von: dwi
  • Kommentare: 2
Repairing Nokia 6500 Slide LCD

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

Nokia 6500 Slide LCD replacement. Save your money & time. Do it for as low as IDR 50,000 and it takes less than 10 minutes.

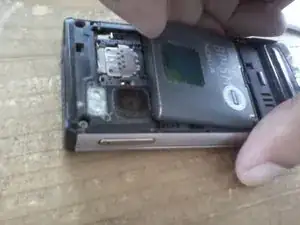

  1. RD6wFhVkE6DAgli4
    RD6wFhVkE6DAgli4
    2hDtyZy5xcvIGJSn
    AnpYKHmwjyRGRXcm

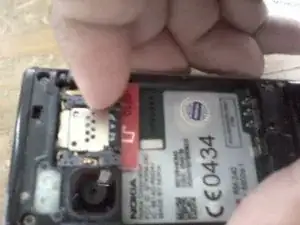

    • Press the eject button to open battery enclosure. Remove battery, sim card and micro sd card.

  2. 2d61NCMITTpyK2ig

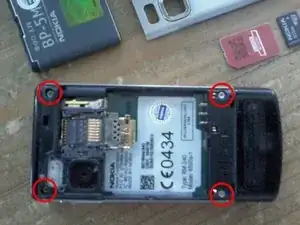

    • Remove four screws using torx 5 screwdriver.

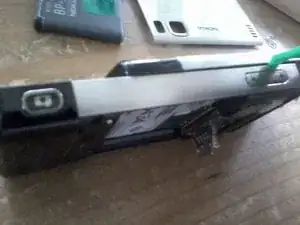

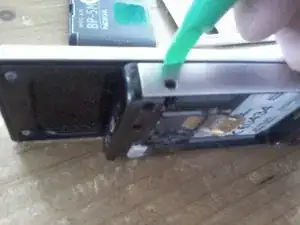

  3. rSPuaANdRitLFDPW
    rSPuaANdRitLFDPW
    UCYYW4KJ3NNYtQFE
    CHdGpccnD3VLMu3H

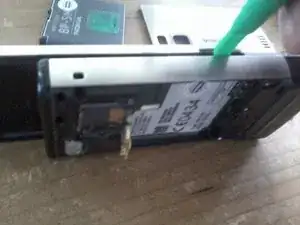

    • Pry each side evenly around its edges. The phone should start to split into two halves.

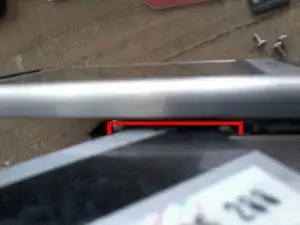

  4. K6PHn4aFDVbQORgy
    K6PHn4aFDVbQORgy
    lVHZyHRsQMQSuZiS

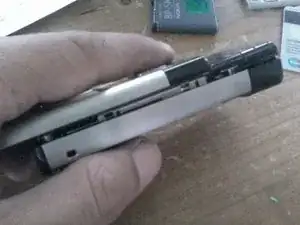

    • The top and bottom half of the phone is still connected by two ribbon connectors each side. Use a thin plastic like a credit card to carefully disconnect it.

  5. mPcNaiiAOSwQKiXO

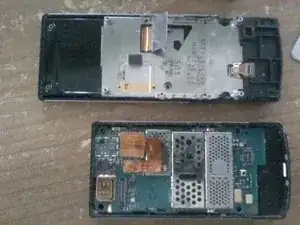

    • Make sure all components stay on each side (see picture).

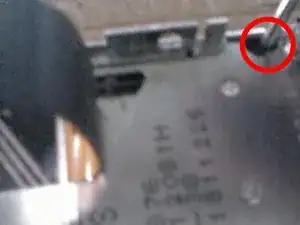

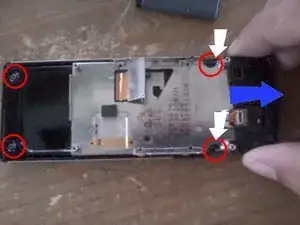

  6. Y2TeuhCNkyki6SER
    Y2TeuhCNkyki6SER
    x3coPsoAY6mcnseT

    • Pull the black part away from the rest of the phone in the direction shown by the white arrows follows by the blue.

    • This way you can accessing the two screws at the bottom of the phone. Remove four srews using torx 5 screwdriver.

  7. h6GSy3cqSCsYE5aR
    h6GSy3cqSCsYE5aR
    ZFNK6OP2hHZ4MQdY

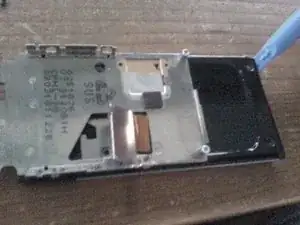

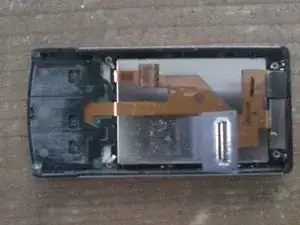

    • Carefully pry out the lcd cover.

    • Make sure the board connector pass the cover by angle.

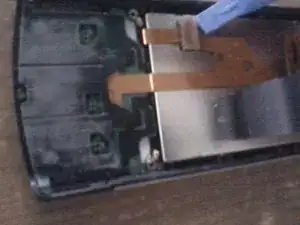

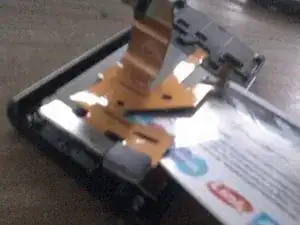

  8. JJb6owVKqbI2RNII
    JJb6owVKqbI2RNII
    xCMOSTWeZ6GpUcK5
    UsEJcJ1JZkmIXwQU

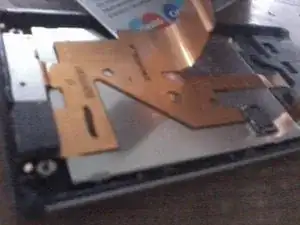

    • Disconnect the LCD connector.

    • Carefully peel the ribbon away from the back of the screen. It's held in place with double sided tape.

    • The LCD screen will now be loose and can be removed and replace with the new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
