Einleitung

This is my first repair guide.

The on/off switch broke down so I searched for a way to fix it. Here is how I did it.

I can't guarantee that this guide will help you, but I hope so. Hope you can do it!

  1. IQHDEVwXSTawfMmJ
    • open the cover

    • remove battery

    • remove sim tray

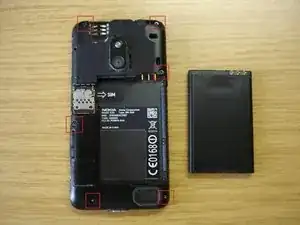

  2. PkDPxVEvFU6imvg6
    PkDPxVEvFU6imvg6
    ULuByMw4ViUKMPxg
    • remove screws

    • disconnect connectors

    • remove main board

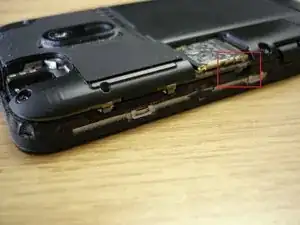

  3. Cuu1pSJDmRZN2WqW
    Cuu1pSJDmRZN2WqW
    2qHaGA2LnQ6Amqma
    sDXMBisDiiYW42ay

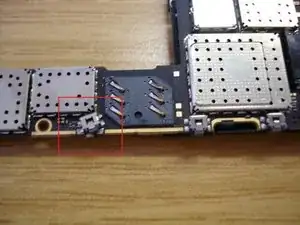

    • first picture: the problem with the switch

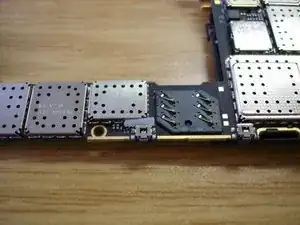

    • second picture: you see clearly that the switch isn't in the right position

    • so I added a small piece of plastic to prevent the switch to move back. That worked for me

    • Note: make sure that the plastic is not too big. You have to make sure that the sim tray fits in again!

    Did you resolder the connector pins back? Glad it worked for you BUT the pins should be resoldered for a more permanent solution.

    MobileUnlockIE -

Abschluss

To reassemble your device, follow these instructions in reverse order.
