Repairing Pioneer R1 Speaker Cables

Geschrieben von: Christopher Rosario
  • Kommentare: 0
Repairing Pioneer R1 Speaker Cables

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

15 - 25 Minuten

Einleitung

This guide will demonstrate how to access the R1's speakers and reattach them to the motherboard.

  1. FUEbVJvIb4VDqlNM

    • Insert your plastic spudger into the opening near the HDMI port.

    • Gently pry the back cover of the R1 from the the front by using the spudger along the edges.

    • Do not pull the back cover straight off the R1. You may further damage the cables connecting the speakers to the motherboard.

  2. qm3akyC1ealLQfLj

    • Lay the R1 flat like an open book.

    • This will prevent further damage to the cables connecting the speakers to the motherboard.

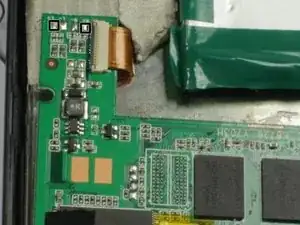

  3. 1QopLIEOBRqiY2Eb
    1QopLIEOBRqiY2Eb

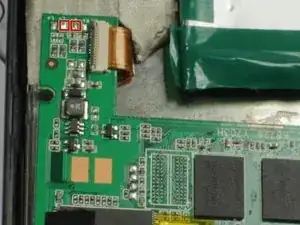

    fxxRbfjOpBD22aBm

    • Solder the black cable of the left speaker to the nodule marked L+ on the motherboard.

    • Do not allow solder from one nodule to touch another nodule. This will cause the speakers to malfunction.

    • Solder the black cable of the Right speaker to the nodule marked R+ on the motherboard.

    • Solder the red cable of the left speaker to the nodule marked L- on the motherboard.

    • Solder the red cable of the right speaker to the nodule marked R- on the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
