Solder 3 wires to the 3 Points on the Backside of the Mainboard. The 3 Points are right under the Fan Connector on the other side.
-
-
-

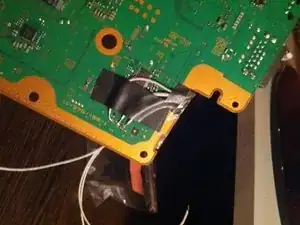

Use some Tape to fix the wires on the Board. As you can see, i used the gap on the right to get the wires to the other side.
-
-
-

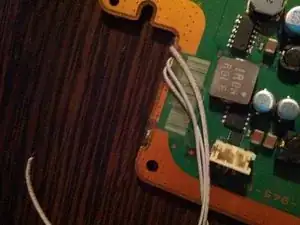

This is the upper side of the Mainboard, you can/should also use some Tape to fix the position of the wires. Also you can see, i glued the connector back on the board (no electrical connection).
-
-
-
Solder the wires to the Connector you glued on the Mainboard, or directly to the fan or any other idea you can come up with.
-
6 Kommentare
So wait, do I just get any three wires and solder them from the underside to where the fan connector was?
Jianni -
Yes. I used an old IDE Cable which i stripped apart.
Thanks for this guide. Like everyone else, I opened my PS3 to clean it out and reapply thermal paste, which looked like it was just haphazardly applied at the factory, only covering about half the surface area of the both processors, and were also both off center. It hadn't dried up yet, and surprisingly after 7 years of moderate play, there was very little dust. But tried to disconnect the fan cable, was waaaaay too tight in the connector, and even being careful, and wiggling it back and forth, it separated from the board ripping up all 5 solderpads. I thought I was doomed until thankfully after some searching there was this guide. One other guide I saw on youtube had you trying to solder to tiny little traces, and I was like "you've got to be effin' kidding!" And the other videos showing this method were so low quality you couldn't tell where they soldered.
