Repairing Rode NTG2 disconnected/loose wiring

Geschrieben von: JLGGCENTRAL
  • Kommentare: 9
Repairing Rode NTG2 disconnected/loose wiring

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

20 - 30 Minuten

Einleitung

For all those who have defective Røde NTG2 shotgun miss, meaning sound in and out, as if some wiring has come loose and signal is cutting in and out when you connect/disconnect it. This Guide shows how to open it up, examine for the broken/disconnected wiring, and how to repair and reassemble as to prevent future disconnections.

  1. q1E1B5q5ktTBVFYM
    q1E1B5q5ktTBVFYM
    XHNkkkULMjUbbFRa
    XgWhAm4NHr4HjfBS

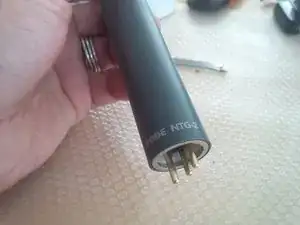

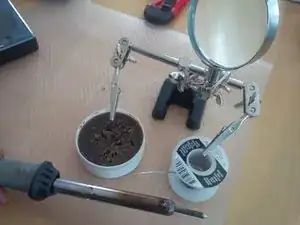

    • Get your workspace ready. Rubber mat, all tools laid out, soldering iron heating up.

  2. LZbCNUPDaZs4etnj
    LZbCNUPDaZs4etnj
    PsuBJC1InUFatqpf
    WQHEITBdjUW4MNq1

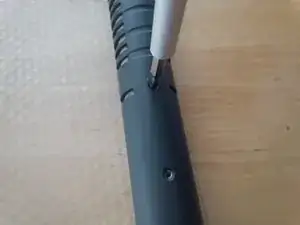

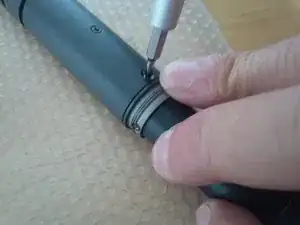

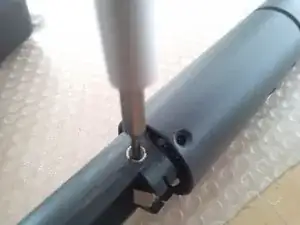

    • Using a Philipps #00 tip, Remove all visible screws, and set them aside in different piles/containers.

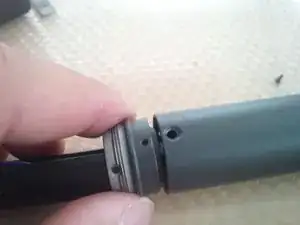

  3. PHRjJbdFNEU3IOIE
    PHRjJbdFNEU3IOIE
    iX5c5goTJeBL4Dp2
    EtEPiuGudFTQ2QBJ

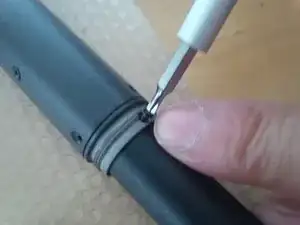

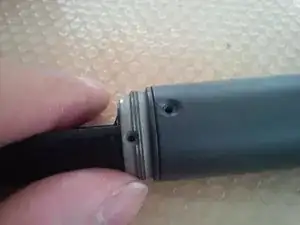

    • Identify a flange/ring that holds the top capsule tube in place. Gently loosen and pull down, in order to release the tube.

  4. FshlUUihPJevNgHa
    FshlUUihPJevNgHa
    d5CFUbDjeWysdnfo
    GydDE24ATMfMPSsR

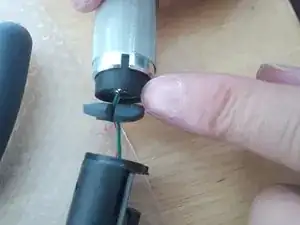

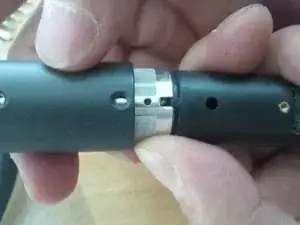

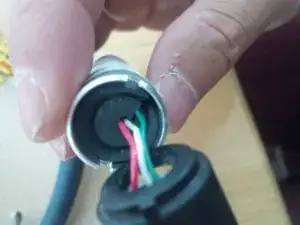

    • Remove capsule from head tube. Be gentle. There is a rubber gasket that holds it in place. Gently extricate the gasket, and the capsule will slide right out.

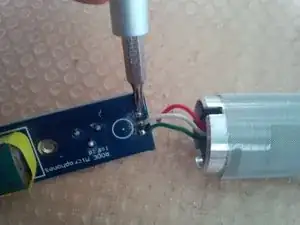

  5. oEDRXZvkfrsjMC4n
    oEDRXZvkfrsjMC4n
    ZBEtnxR31Aruh3ED

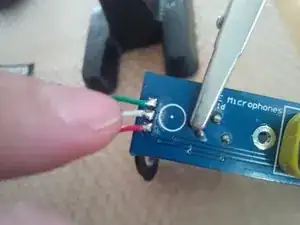

    • Time to locate defective or loose wiring. If this is the capsule, then this is easy to re-solder.

    • Locate the broken/loose wire, strip back a few mm's of insulation coating, and prepare to solder back in. Use the helping hands with clips to secure both sides in place before spot soldering.

  6. RahsgZvWOF1ptmd2
    RahsgZvWOF1ptmd2
    ld3wwXysMhteZimr

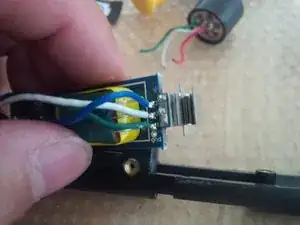

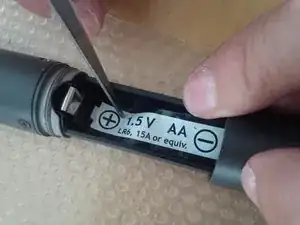

    • IF no loose wires on top capsule end, then we will need to look at the bottom connector end.

    • This gets a bit tricky, as we will need to slide the round flange off the top of the tube, in order to push the bottom tube all the way to expose the connectors.

    • Locate the single silver screw holding the circuit board in place, remove that.

    • In order to do this, you will need to disconnect the capsule from the circuit board, as well as the bottom cables leading to the battery terminal.

    • Before you disconnect, take photos of the wiring for both ends of the board so you can re-solder them correctly!

  7. HsXZLp12RfnP41b2
    HsXZLp12RfnP41b2
    4GVKNG5HDpcQcjKU
    wWQIbXy156OmTZaP

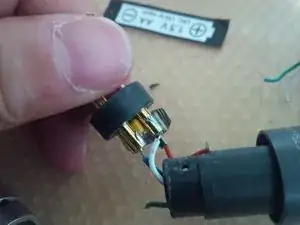

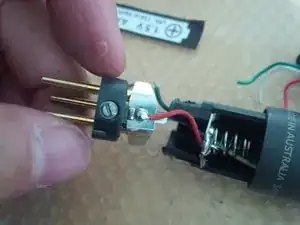

    • After disconnecting the wires to both mic capsule and connectors, gently lift up the circuit board from the housing.

    • Slowly slide the flange off the mi capsule end of the housing.

    • Slide the bottom tube in the same direction, until bottom connectors are exposed. Check for loose/broken wiring.

    • Re-solder connectors as needed.

    • Reverse the process, and return both the bottom tube AND the flange BEFORE re-soldering connector leads back to circuit board.

    • Resolder all wires back to Circuit Board, once the bottom tube and flange have been slid back into place.

    • Gently return circuit board to housing, and return silver screw.

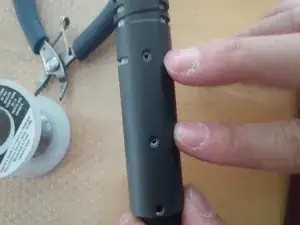

  11. 4XRniNKnrPD3QUxm
    4XRniNKnrPD3QUxm
    Z6dFEFaWJomYKu4w

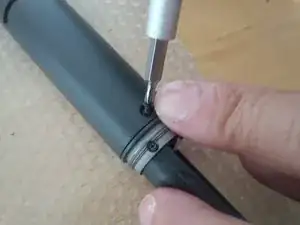

    • Here's where you reverse Steps 5 to 1 to put it all back together. Don't forget all the screws!

    • Test your mic!

Abschluss

To reassemble your device, follow these instructions in reverse order.
