Repairing Samsung P241 Laser

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

Make sure you look at the Samsung P241 Troubleshooting Guide first to see if you can solve your problem without taking the DVD player apart.

If the DVD player is skipping or not playing DVDs correctly, then there is likely a problem with the laser that reads the disc. First, you will want to try to clean the disc to make sure it is a problem with laser and not the disc. However if the problem does come from the laser, this guide will show you how to safely access it and clean it.

  1. t1e1Z2s2IT3PooBr
    t1e1Z2s2IT3PooBr
    WfVBVNOvo2PQb4vE

    • You will need to be near a power source for this guide.

    • With the back of the DVD player facing you, remove the three 1 cm black screws on the right, left, and top sides using a Phillips #1 screwdriver.

  2. DQNa3jQauFpe1MtE
    DQNa3jQauFpe1MtE
    ojvaeylplmNCn5tG

    • Pull the top cover towards you until you can lift it up and off.

  3. fPyaaTJyDU1KudIK
    fPyaaTJyDU1KudIK
    6FqqemoC6gxNDUoi

    • With the front of the DVD player facing you, turn the power on and eject the disc tray.

    • Press down on the disc tray with your thumbs while also pressing up with your pointer finger on the left and right edges of the silver cover. The cover should easily pop up and off the disc tray.

    • Be careful not to crack or bend the disc tray by pulling too hard.

  4. Qi2X2l534wdTDlZN
    Qi2X2l534wdTDlZN
    saWmA33Gbj5xqCZy
    F2kGSQWQWgRQVCkl

    • To remove the front panel, lift up the clips on the bottom, left and right sides of the DVD player.

    • Be sure to have all clips lifted up at the same time otherwise it will be difficult to get the panel off.

    • If you are having trouble removing the panel, try wedging an object underneath the two clips on the bottom to keep them from falling back into place.

  5. tmQFSlAtCdRlPVlT

    • Gently remove the front panel by pulling it forward.

  6. XjOLGuhYXG21NYZY

    • Press the eject button again to make the disc tray slide back into place.

    • Turn off the DVD player and unplug it from the wall before proceeding to further steps.

  7. 1RBIk1jgVRMsTjYV
    1RBIk1jgVRMsTjYV
    4CYpWFOSJnJEWmFa

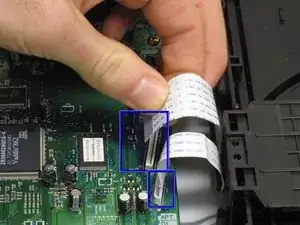

    • Remove the two white ribbon cables that connect the motherboard and the disc tray by pulling on the ribbon cable where it attaches to the circuit board.

  8. gqCEBIUpl1KpkvGf
    gqCEBIUpl1KpkvGf
    23RyA6MyCLPRPYXZ
    uZm4wjZZokiHQYe3

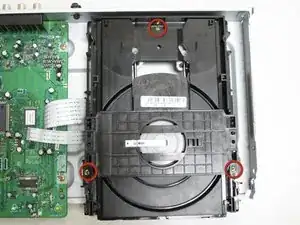

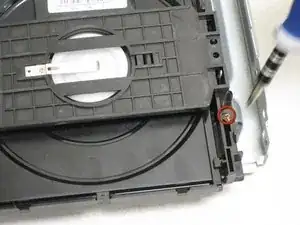

    • Remove the three 0.6 cm gold screws holding the disc tray to the bottom casing with a Philips #1 screwdriver.

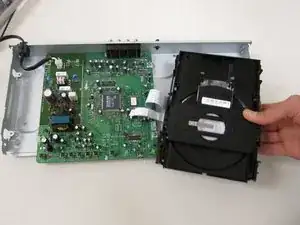

    • Lift the disc tray out.

  9. jjdMZxhtLgtldlCK
    jjdMZxhtLgtldlCK
    vtYjjyoZdIgnn2Li
    sJZNE6fX6i4AdOHV

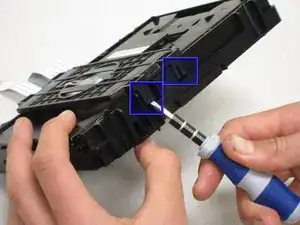

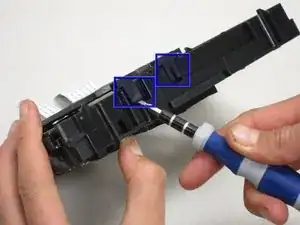

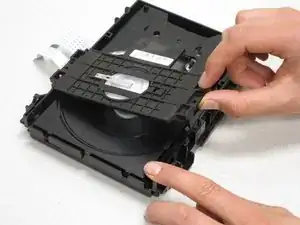

    • Remove the top cover of the disc tray by gently prying the clips off with a flathead screwdriver.

    • You will want to release one side before moving on to the other side, but do not lift the cover off until both sides are released.

  10. FBWjHJxptmyvT22I
    FBWjHJxptmyvT22I
    YPVx2uJsCUuXrsg4
    Ve44yJjRFYEWdoHZ

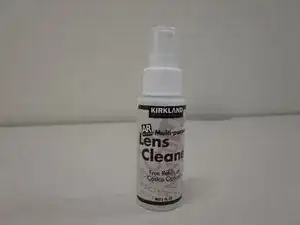

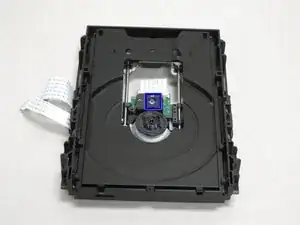

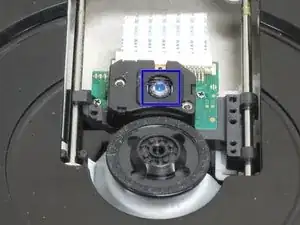

    • Very gently wipe the laser down with lens cleaner.

    • Be very careful that no excess cleaner drips down into the disc drive.

    • Use extreme caution when wiping the laser to avoid damaging it. If too much force is used, it will break or be pushed off-center and will not read the disc properly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
