Einleitung

This is a straight forward repair. For those that are reading it, or need to repair their headphones, it will not be necessary to open the control box. I just had to do it to identify the proper channels. This is actually a fun project, total cost $1.15 for the new connector.

  1. gyCfRNovMpCN1ns4
    gyCfRNovMpCN1ns4
    ZpaKevVGUBPULQwq
    2IvjPsKnRnAdwnXx

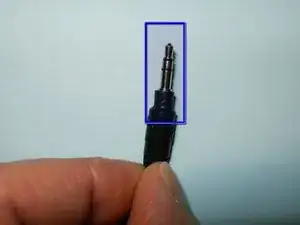

    • Not very obvious, but the metal plug is actual slightly bend to the left of the picture. There is also some bulging of the plastic around it.

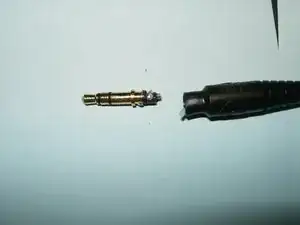

    • After a bit more of a manual inspections, the plug actually just fell out.

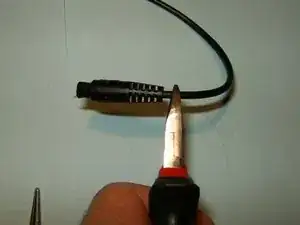

    • Use a small set of side cutters to cut the rest of the plug off.

  2. ULTpdCdyNgK43oqD
    ULTpdCdyNgK43oqD
    o6noeHfOkyPKpnDJ
    EcFipIhxLIts4J4I

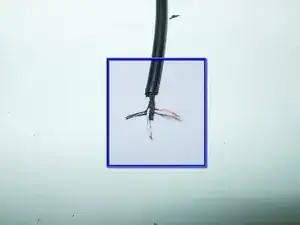

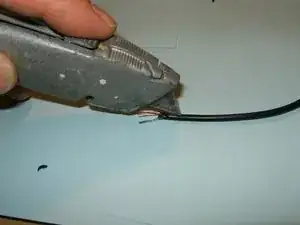

    • Use a sharp knife to remove the insulation of the wires. Do it carefully so as to not cut through the wires.

    • Here are the three wires in the middle of the cable: red, blue, and gold. Now it is time to figure out which wire goes where.

    • The three wires DO NOT have any insulation that can be removed. The colors are actually the insulation and it will melt during the soldering process. Or one can use a lighter and melt the color insulation.

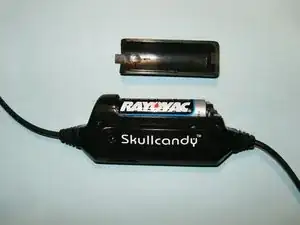

    • Remove the battery by sliding the cover to the right.

  3. EnEiP6sspCgicC6q
    EnEiP6sspCgicC6q
    PxakQMPvRAjyZAa5
    a2q6jtUZjmaUDLYj

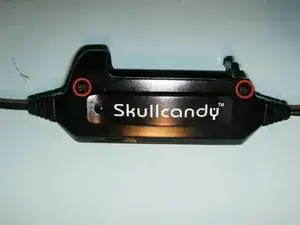

    • Remove the two Phillips screws. The casing will simply unsnap.

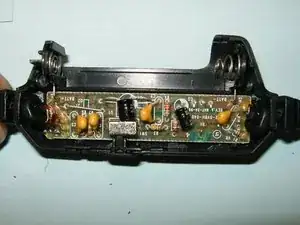

    • The complete circuit board will be immediately visible.

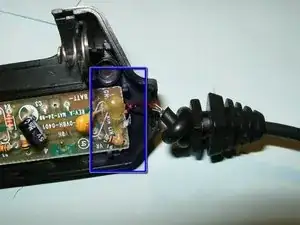

    • Here is the connector end. Note the wax on the small wires. This is probably to prevent the very small wires from moving too much on the board.

  4. jicuyqbYtwRqyPSR
    jicuyqbYtwRqyPSR
    djCySvuovFsDKClt
    mrL4yrMAUJaNxSWI

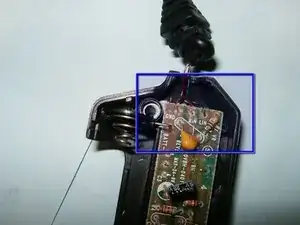

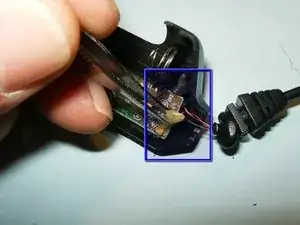

    • Remove the wax if it is too difficult to identify which wire goes where.

    • Now the wires can easily be identified. Gold is common ground, red is the right channel, and blue is the left channel.

    • The control box can now be closed again. Apply a few dabs of hot glue over the wires to remove the wax that was previously removed.

  5. hSPL4TrukPXRAUWI
    hSPL4TrukPXRAUWI
    M32oYUEUbZ5gPSYu
    LbLAeyQLUyc3RNbb

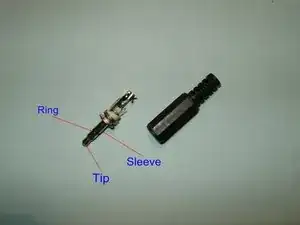

    • Here is the replacement 3.5mm TRS plug.

    • TRS stands for tip-ring-sleeve, and is the standard connector for audio jacks.

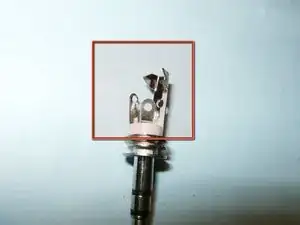

    • The bottom of the jack has three connectors that each correspond to the tip, ring, or sleeve.

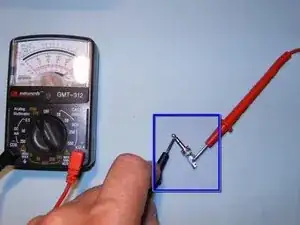

    • With one probe constantly on the tip of the jack, probe the three connectors with a multimeter until you have continuity; this is your tip connector.

  6. vEqi4yHmnhFWBDiA
    vEqi4yHmnhFWBDiA
    cCZLIgpQOQDQgdjF
    RCxfPKLhTsYZH2lQ

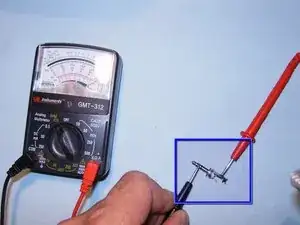

    • Move the stationary probe to the ring terminal and repeat the previous procedure to identify the ring connector.

    • The remaining connector corresponds to the sleeve. In this case, it is the longest connector.

    • Slide the plastic sleeve over the headphone cable. Make sure that it is installed with the larger opening to the wire end.

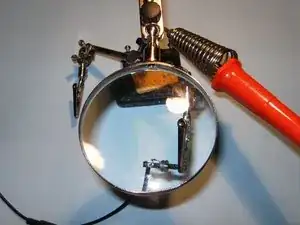

    • To assist with soldering the small wires, a tool like this third hand is a big help, but not a necessity.

  7. SpBxIRVWeWr5hcf5
    SpBxIRVWeWr5hcf5
    bbDDW6DFgOgnKlZA
    aLGdBvNa5CJNc6Dm

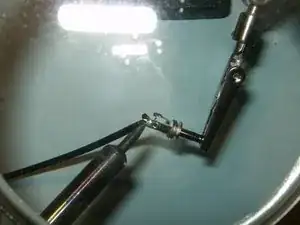

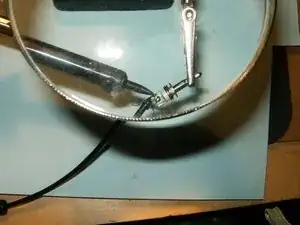

    • The tip connector on most MP3 players is for the left channel. Solder the blue wire to the tip connector. On this plug it is the shortest one.

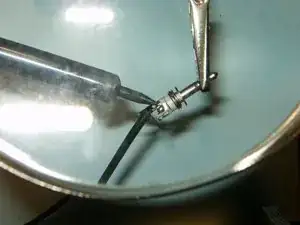

    • Solder the red colored wire to the ring (middle) connector

    • Finally solder the gold colored wire to the sleeve (longest) connector.

  8. xcgmy5U2uJ2hk2xr
    xcgmy5U2uJ2hk2xr
    lL46RpkPDvjrymPd
    CO2PEOUWXWINniTO

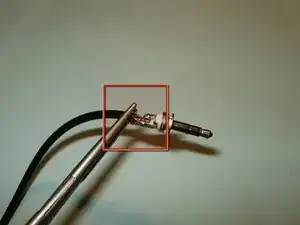

    • Crimp the end of the longest connector over the wire. This will help to prevent the tearing of the solder connection, when the headphones are disconnected by pulling on the cable.

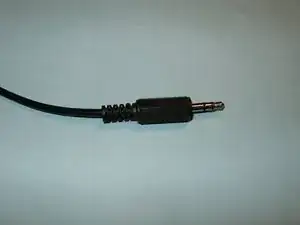

    • Finally attached the cover to the plug.

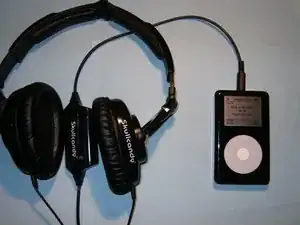

    • Result is another successful repair accomplished. Sorry oldturkey03 junior, no Dr. Dre this time. Rock on....:)

Abschluss

To reassemble your device, follow these instructions in reverse order.
