Repairing Sony Cyber-shot DSC-W290 Motherboard

Find the hatch labeled "open" on the left side of the bottom of the camera.

Slide the hatch in the direction that the arrow is pointing. The hatch will open outward on its own.

Slide the blue locking tab to release the battery.

Slide the battery out of the camera.

Replace hatch and rotate camera 180 degrees. You should still be looking at the bottom of the camera.

Remove the four 2.5mm Phillips #0 screws.

Turn the camera so the left side-panel reading "5x Optical Zoom" faces you.

Remove the two 2.5mm Phillips #0 screws.

Turn the camera so the right side faces you.

Remove the two 2.5mm Phillips #0 screws.

Rotate camera so that the back is facing you.

Pull the back casing directly away from the LCD screen.

Turn the camera so that the left side is facing you.

Pull the left side-panel off of the camera.

Turn camera so that the front of the camera is facing you.

Pull the front casing directly away from the camera.

Turn the camera so that the right side is facing you.

Pull the right side-panel away from the rest of the camera.

This is what your camera should look like now that you have removed the casing from all sides.

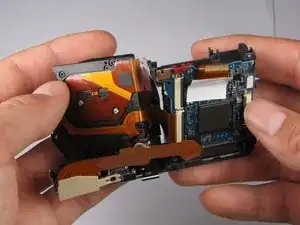

Gently pull the LCD and its casing away from the motherboard as shown.

Disconnect the small ribbon-wire by gently pulling on the small ribbon-wire where it connects with the motherboard.

Disconnect the large ribbon-wire by pulling on the large ribbon-wire where it connects to the motherboard.

Pull the LCD and its casing away from the rest of the camera.

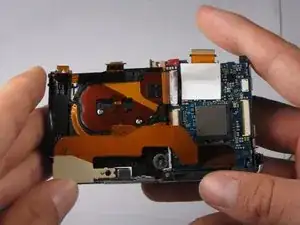

Turn the camera so the back is facing you.

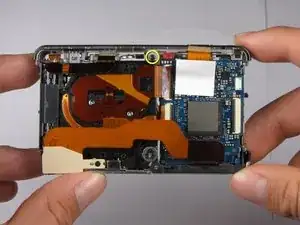

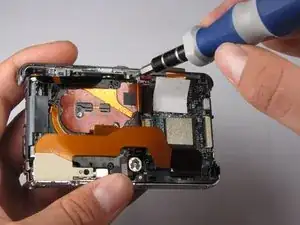

Remove the 2.5mm Philips #0 screw at the top of the camera.

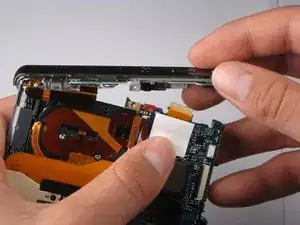

Tilt top casing up and towards you.

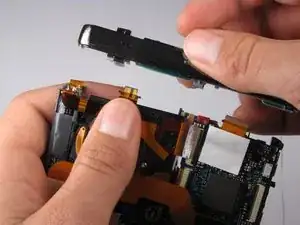

Carefully remove the right ribbon-wire from the top camera panel by pulling where the wire connects to the top.

Carefully remove the left ribbon-wire from the top camera panel by pulling where the wire connects to the top.

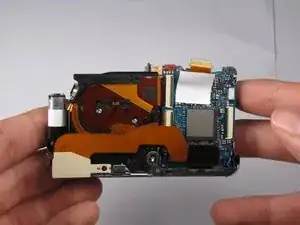

Remove the flash capacitor from the lens assembly.

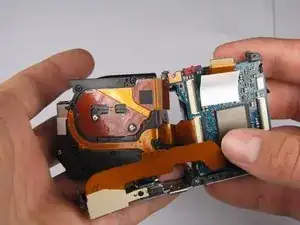

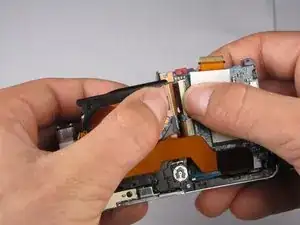

Carefully disconnect the top ribbon-wire from the motherboard by pulling where the wire connects to the motherboard.

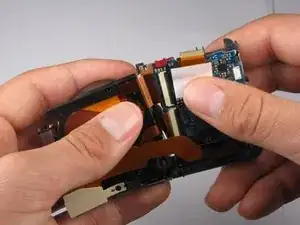

Disconnect the top remaining ribbon-wire by carefully pulling at the base of where the wire connects to the motherboard.

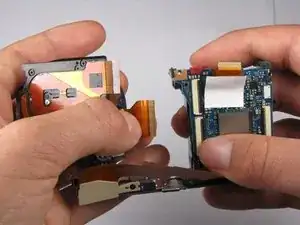

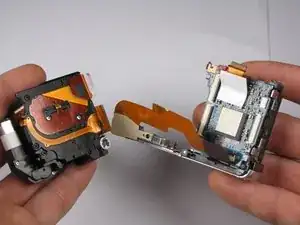

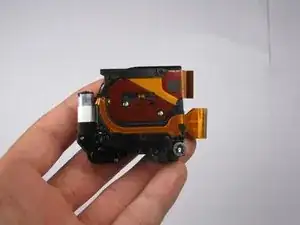

Pull the Lens Assembly away from the motherboard.

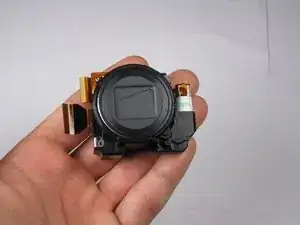

You have now removed the Lens Assembly from the camera.

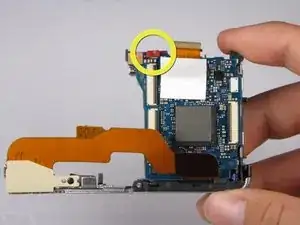

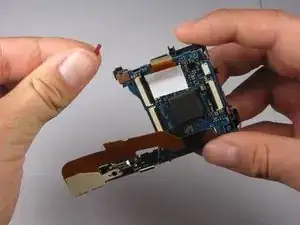

Remove the red clip that holds the motherboard to its casing.

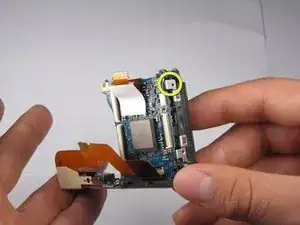

Pull back the small gray clip located on the right side of the camera to release the motherboard from its casing.

Lift the motherboard from the casing.

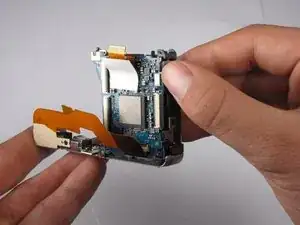

Carefully remove the large ribbon-wire by pulling the wire where it connects with the motherboard.

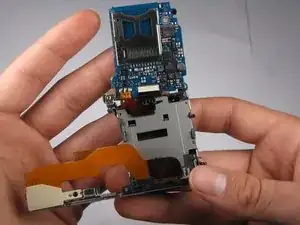

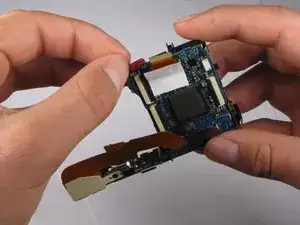

Flip the motherboard up to turn it over.

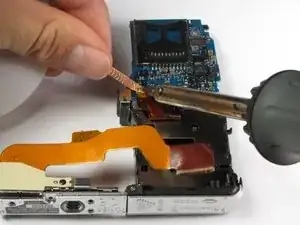

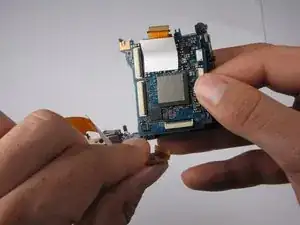

Carefully de-solder the three connectors from the ribbon wire to the motherboard.

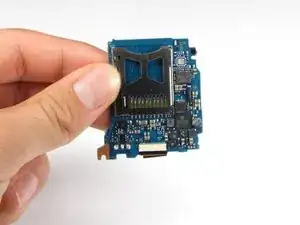

You have now removed the motherboard.
