Einleitung

  1. tiwpYLBTgVvgYnpw
    tiwpYLBTgVvgYnpw
    pWDcmLh6AYKTTHUQ
    mKR4PtMlqRuNwHMp
    • The Xperia L model

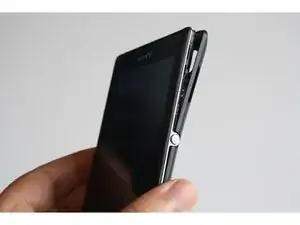

    • Gently open the phone case.

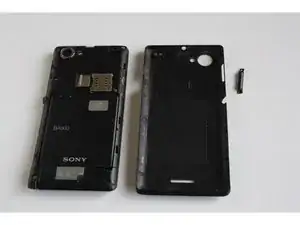

    • The phone body, back case and the detached volume control button.

  2. WLeHkvGFPmOB5P44
    WLeHkvGFPmOB5P44
    eTvMRJGMRmNWDuUL

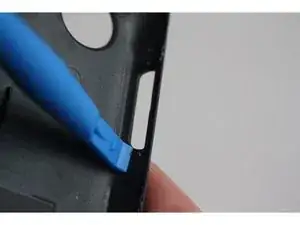

    • Using the plastic opening tools in the iFixit kit, pull up the flattened plastic notches that will hold the volume control button in place.

    • You can see the notches on the back case and the holes in the volume control button that snap fit in them.

  3. bESsryrWOwkSiGQM
    bESsryrWOwkSiGQM
    ODuMrdGggNxldxPB

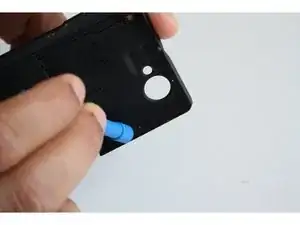

    • Place the volume control button back in the slot.

    • Adjust the holes on the button in a way that they snap to the raised notches on the back panel.

    • Press down the raised plastic notches using the back of the plastic opening tool from the kit.

  4. EHyRHQtKicHSmHuS
    EHyRHQtKicHSmHuS
    Npg2jDN5NcfsOv6i
    ijJeqhI15xlDyJlM

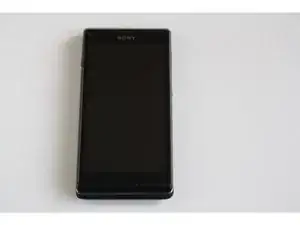

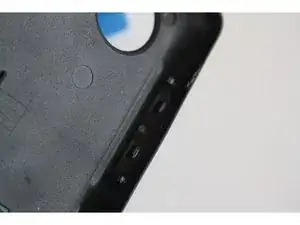

    • The volume control button is now attached in its slot.

    • Reassemble the phone back by snapping the back case to the phone body.

    • The volume control/zoom button is good to use!

Abschluss

To reassemble your device, follow these instructions in reverse order.
