Repairing Toshiba Satellite C850 - Cleaning the Cooling / Fan System

Geschrieben von: ZFix
  • Kommentare: 8
Repairing Toshiba Satellite C850 - Cleaning the Cooling / Fan System

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

15 - 20 Minuten

Einleitung

How to disassemble the laptop in case to clean the cooling / fan system.


Please SUBSCRIBE to my channel ツ

  1. UkM61VvjxqjeStTY
    UkM61VvjxqjeStTY
    3P1kykmyTOqP2l2K

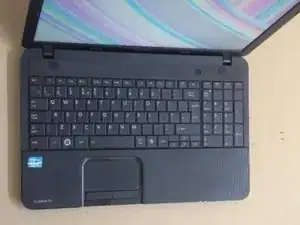

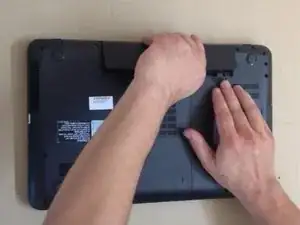

    • Switch-off the laptop and remove the battery.

  2. CZYWGhMlsiEu2QYI
    CZYWGhMlsiEu2QYI
    nv4JvgoUSVlgvm1K
    aEgsNgHo6ICE4ID4

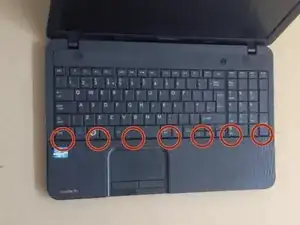

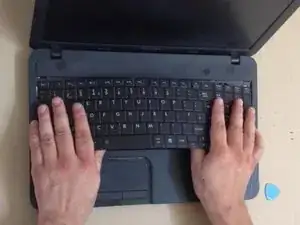

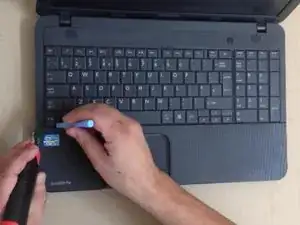

    • To remove the Keyboard you must open 7x locking clips.

    • You can use a cutter and a plastic tool.

  3. 2RDTxLFI1DqvY5Gb
    2RDTxLFI1DqvY5Gb
    TiqyortFdifvvhUM
    w3dif2gpkNOOR6wC

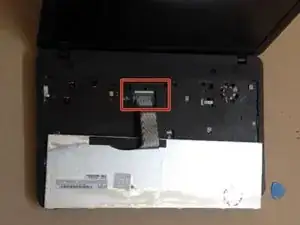

    • Remove the Keyboard.

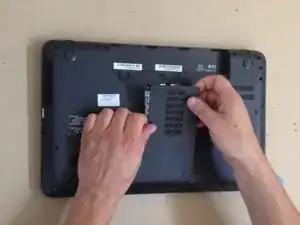

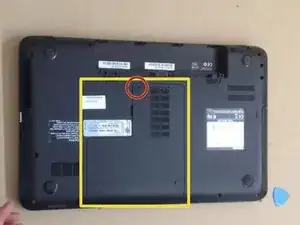

    • Remove the HDD, RAM Memory cover.

  4. eeUCpGyI2QyXEh42
    eeUCpGyI2QyXEh42
    uESeBbVSSJWeCWfE
    gT5xDaBqOkJoAJxi

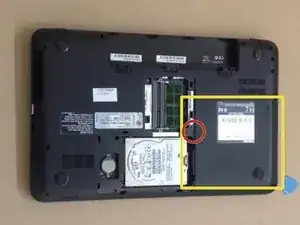

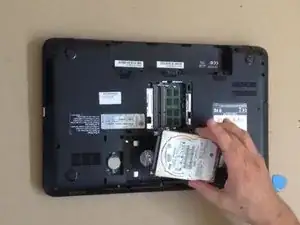

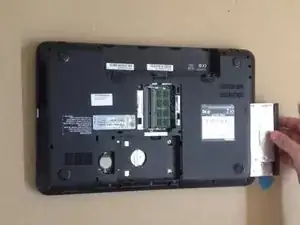

    • Remove the HDD and the DVD optical drive.

  5. Ee1qIdkKW25OkA3d
    Ee1qIdkKW25OkA3d
    aOgbClwrAl2GaAW6

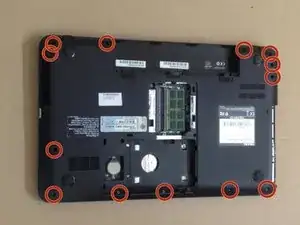

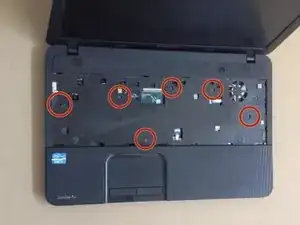

    • Unscrew the screws from the upper and the bottom cases.

  6. ddFNm5pYBF4AAuSY
    ddFNm5pYBF4AAuSY
    rQh4VtLam54BFjMc
    w25HFDZJR2cZfv11

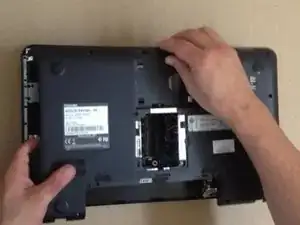

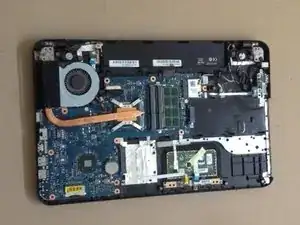

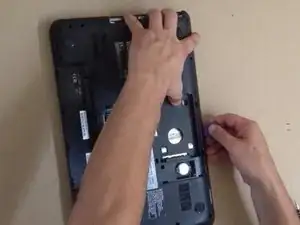

    • With a plastic tool you can separate the bottom case from the laptop.

  7. HmnfulPKiVmZcNfD
    HmnfulPKiVmZcNfD
    QHEktwltF41bVusN
    YKxnqSnWIXrp1LRO

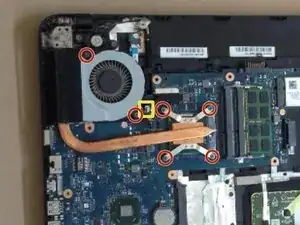

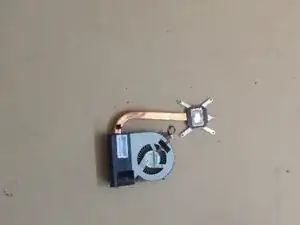

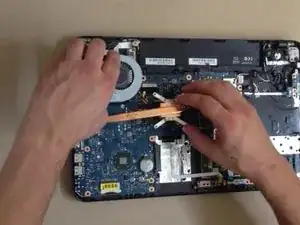

    • Disconnect the CPU fan cable connector.

    • Now you have 4x screws on the CPU side and 2x on the fan.

  8. DToYXmKuFEnFnp3b
    DToYXmKuFEnFnp3b
    uDf1NIhML6LWBwjL
    NK2sJNlMaVDj2fWr

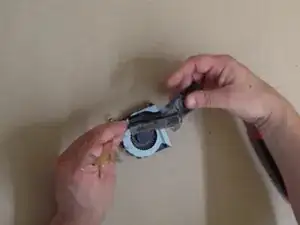

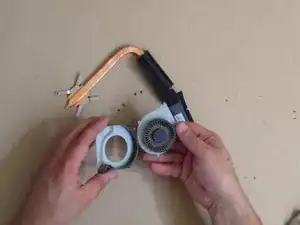

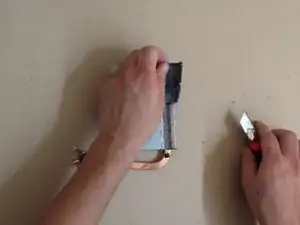

    • Separate the fan from the radiator.

    • Clean the radiator and the fan. Use a soft brush.

  9. j6OsWtPGIYZ2SiHD
    j6OsWtPGIYZ2SiHD
    wKQZAlSLsvOZCaDM
    FHdi4eUguWgFETBt
Abschluss

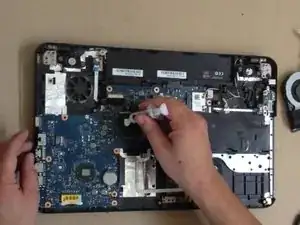

To reassemble your device, follow these instructions in reverse order.
