Einleitung

Learn how to stop the buzzing and bring back clear sound on your headset.

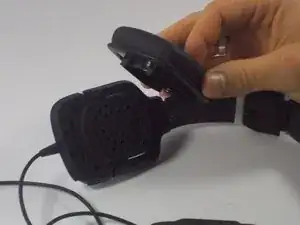

  1. FB5TVxLnDdS1pBwW
    FB5TVxLnDdS1pBwW
    LqdcwAPm1iyNDsbE
    • Remove the cushion of the speaker that the buzzing noise is occurring.

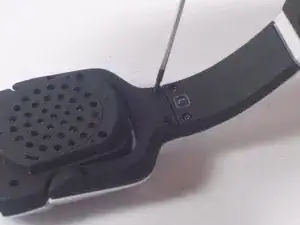

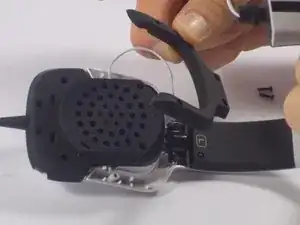

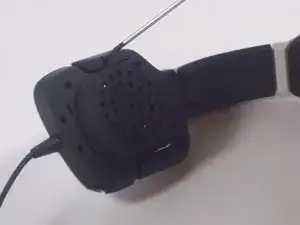

  2. gUPfnWtNLSvJhmLr
    gUPfnWtNLSvJhmLr
    UQv6ZyPAROQWgjGO
    icYaccrOAcRgRFFr
    • Use the Philips PH00 screwdriver to unscrew the four screws located on the inner part of the rail adjustment.

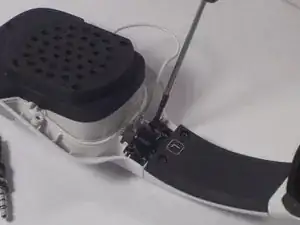

  3. TBuDcEGyHCSWWlCb
    TBuDcEGyHCSWWlCb
    i3AO4F2hivjwZPn3
    • Remove the black metal bracket by unscrewing the two screws connecting it to the railing.

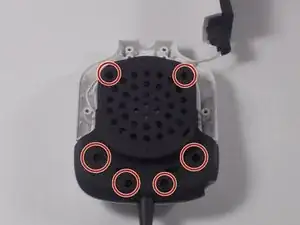

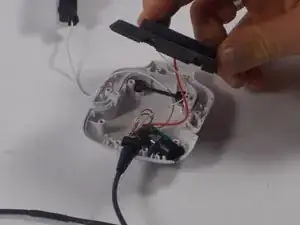

  4. AwBAhTlOLNkFeD2G
    AwBAhTlOLNkFeD2G
    oH2CUFTf6qhiUEN5
    • Unscrew the screws in the locations shown to remove the speaker cover.

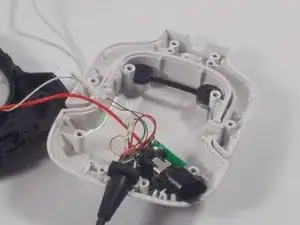

  5. hCH5MUGEjFJGjPUC
    • Place the black cover to the side, near the rest of the setup.

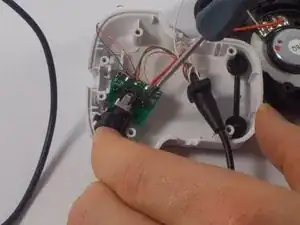

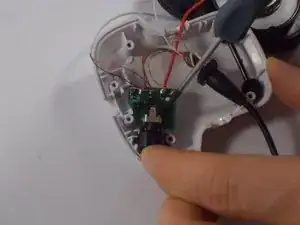

  6. DAjdGjnCOGWj1BFn
    DAjdGjnCOGWj1BFn
    Wj1sTFNHC2skEFhj
    • Observe the wire orientation: The red metal wire should be to the far left, while the green metal wire should be next to it, the skinny red rubber wire should be second to the right, and the thick red rubber wire should be to the far right. If any of the wires are out of place fasten them into their proper positions.

Abschluss

To reassemble your device, follow these instructions in reverse order.
