Repairing VTech Touch and Swipe Baby Phone Screen Alignment

Geschrieben von: Sean Webb
  • Kommentare: 2
Repairing VTech Touch and Swipe Baby Phone Screen Alignment

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

This guide required

  1. SjZMlxCyixboNoVD
    SjZMlxCyixboNoVD
    ucywvZAXIkJAxPLw

    • Using a Phillips #1 screwdriver, remove the 4.8mm screw on the battery cover by twisting the screwdriver counter-clockwise.

  2. wo2xkvAdDJLfSyDW
    wo2xkvAdDJLfSyDW
    CnhSpTYYoFEhKThA
    GWOSB42VDBClBBMX

    • Remove the two AAA batteries by pulling on one end of the battery and lifting it straight out.

  3. ekBeMOhR6Xk2F3HJ
    ekBeMOhR6Xk2F3HJ
    iL4ccf1eudbvOlNr
    SoAYYZfqt3k15tiG

    • When reassembling, align the notch on the battery panel with the slot on the phone.

  4. u1uUcelJGgVFLOU4
    u1uUcelJGgVFLOU4
    KLkVySXSLeMpyTsG

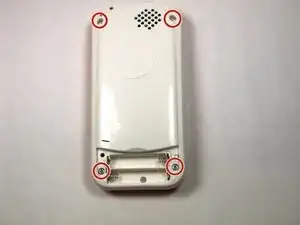

    • Remove four 13.8mm screws from the back of the device using a Phillips #1 screwdriver.

  5. byvLGQ6JguQspbJ4
    byvLGQ6JguQspbJ4
    UjDJDmFyGihtQ5bf
    FI5iXhaCG3LgKysY

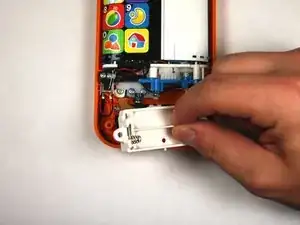

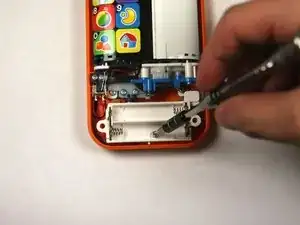

    • Remove a single 4.8 mm screw with a Phillips #0 screwdriver and lift away the battery pack being careful of the wires.

  6. MCRRopuhDCm1amQY
    MCRRopuhDCm1amQY
    QEXIyKIgIICAmpL1

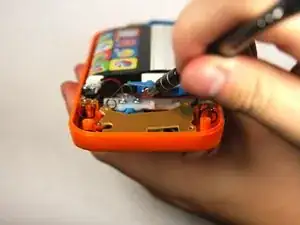

    • Remove two 7.2 mm screws with a Phillips #0 screwdriver.

    • Slide off the spring.

  7. MrOwmacO3fQoHPyC
    MrOwmacO3fQoHPyC
    4hHEMBOWIgoyQqdU
    JfwXCEbq3YPYZNcX

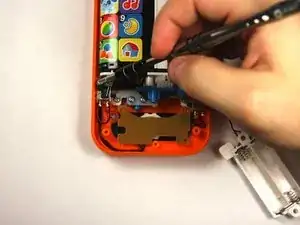

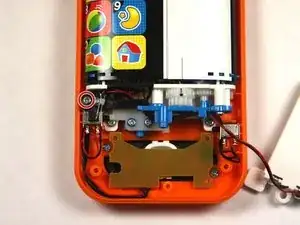

    • Remove the single 7.5mm screw with a Phillips #0 screwdriver.

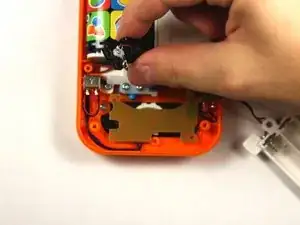

    • Lift up the black plastic piece.

  8. NUwEiHN1VmqL5GT1
    NUwEiHN1VmqL5GT1
    T6iSqKUyLPkgkEwv

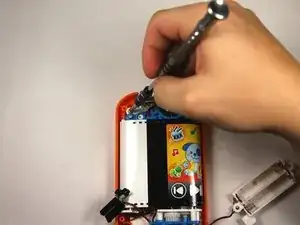

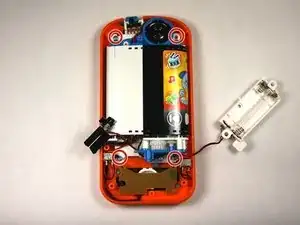

    • Remove four 7.5mm screws with a Phillips #0 screwdriver.

  9. GeQSRRopNOuPyaBl
    GeQSRRopNOuPyaBl
    TmQFXn2ULbMJErHs

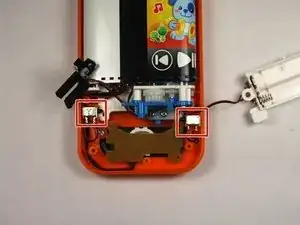

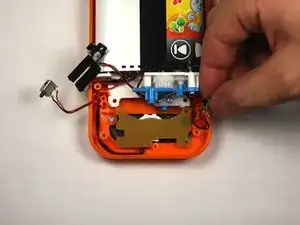

    • Remove the two buttons, noting how wires are placed for reassembly.

  10. HmCJMphkgQYtCnHs
    HmCJMphkgQYtCnHs
    LyXJYXQTJK4aYQJC

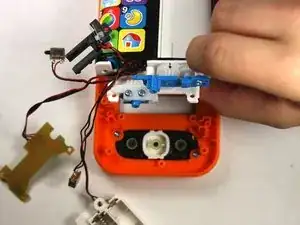

    • Lift the button board up and away to clear room for lifting the motherboard.

    • Tilt the assembly up but being wary that it is still attached to the front panel.

  11. DfAYauAgMYV5HeFU

    • Slide the toothed slider towards you to remove.

  12. qPgixOAkx2ge1yIC

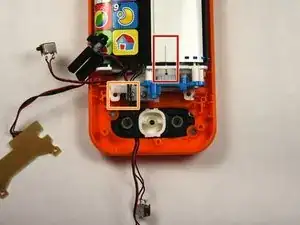

    • To reassemble, align the two black lines together by moving the belt back and forth.

    • Once aligned reinsert the toothed slider at the exact point shown.

    be careful at the top blue button (on/off) that might come off when you align the belt

    cipriansoleriu -

Abschluss

To reassemble your device, follow these instructions in reverse order, skipping step 10 as the toothed slider has already been put in for proper alignment.

Tinte & Feder

Sean Webb

Mitglied seit: 04/09/15

384 Reputation

Ein Kommentar

Good work !

Nice.

I did not see the black line in mine,

i opened the foil and glued it new together . Not so nice. :D

But it works.

Schwarzstein -
