Repairing a Panasonic SA-HT810V with the H02/H07 error

Geschrieben von: Nathan Cheadle
  • Kommentare: 4
Repairing a Panasonic SA-HT810V with the H02/H07 error

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This guide describes how to fix the H02/H07 error that is common with Panasonic DVD/VCR players.

  1. ZMJIIJf2kEpUSdvA
    ZMJIIJf2kEpUSdvA
    k3KaDsHRMwb4l3F3
    LjLTLRiITRPgtwZH

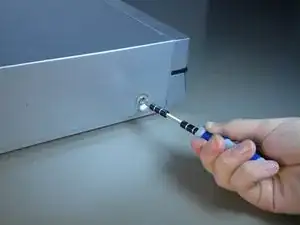

    • With the front display of the device facing you, rotate the device 90 degrees counter clockwise.

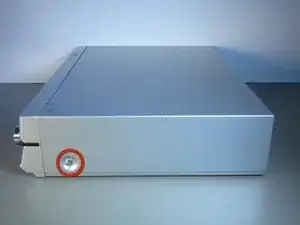

    • Remove the screw that is on the right side of the panel facing you.

    • Now rotate the device 180 degrees and remove the second screw.

    • Remove all screws with a phillips head screwdriver.

  2. CE42DVBUgdMFQZGr
    CE42DVBUgdMFQZGr
    RAC4US5QSKctGfSS

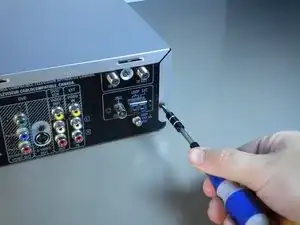

    • Rotate the device so that the back faces you.

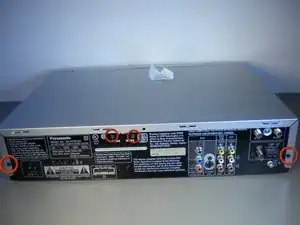

    • With a phillips head screwdriver, locate and remove the two screws highlighted by the red circles in image one.

  3. GHSS3r3gNLx5Zhbg

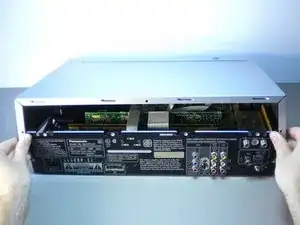

    • Before removing top cover make sure that the back of the device is facing you.

    • Remove the top cover by bending out on the sides, and pulling the cover towards you while applying upward pressure.

  4. AbgQohdmHBUOmNau
    AbgQohdmHBUOmNau
    fBcdSprno1fSrpDg

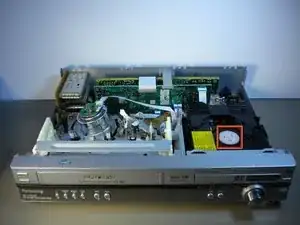

    • Note that the spindle you will be lubing is located underneath the white disk device highlighted in figure one

    • Tilt the device on its front side until you can see underneath the white circular component mentioned in the note above.

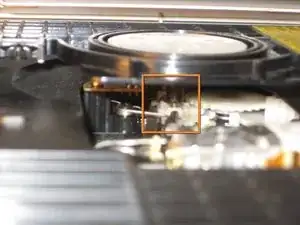

    • Locate the spindle circled in figure two and apply one or two drops of 3 in 1 lubricating oil to the spindle.

    H 02 an a Panasonic VCR can also mean tape broken and wound around capstan next to rubber roller. Ease tape out, remove tape wound around spindle, repair tape with sticky-tape. To remove tape lever up mechanism to the right of cassette, then lever up plastic holding part on the left half-way up cassette, lift door and push cassette out, minor damage may mean cassette needs help ejecting in the future.

    jppretor7 -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Nathan Cheadle

Mitglied seit: 15/04/10

161 Reputation

3 Kommentare

Thanks you saved my Christmas and nailed this as my wife loves Christmas music in the background for our family dinner. Thanks again and Merry Christmas

Jerry Wayock -

I have a Panasonic NV-SD235 and I have a tape stuck with the error H02.

Mark Zarraonandia -

Can’t get screws undone on ours… Help!

Matthew -
