Einleitung

This technique can used to support and fix the broken plastic portions of a number of plastic toys with parts that frequently snap such as axles, spouts, legs etc.

  1. GsvsAY2pCMZNEk5k

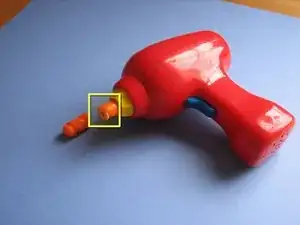

    • Match up the broken plastic part and check that the pieces align.

    • The plastic part was hollow and had space to insert the wood support.

  2. 4UOACVtDwhUMOgTC

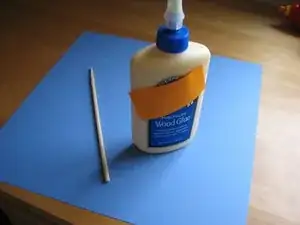

    • Tools needed:

    • - Glue (Super glue, Wood Glue or Tacky glue)

    • - A bamboo chopstick from your favorite chinese restaurant

  3. GxITIUOxXkyxuHTZ

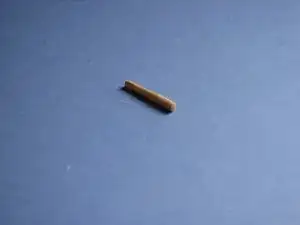

    • Cut the chopstick to the required size using a sharp knife.

    • Some trimming and shaving may be needed depending on the plastic part and the wooden dowel with the objective of to get a tight fit.

  4. fjy4JjMidCkgDqmD

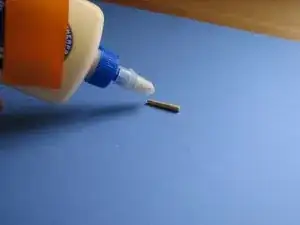

    • Apply a drop of glue to the ends of the wooden dowel.

  5. C24sFNnNJRNjccXB

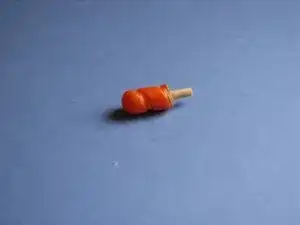

    • Insert the wooden dowel into one part of the broken plastic part.

  6. 1rIFJIeQXTnl3AQV
    1rIFJIeQXTnl3AQV
    bFSvuDVWDxrSqoZo

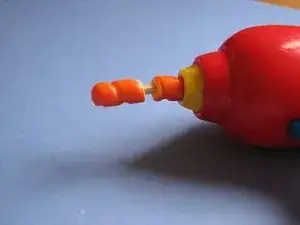

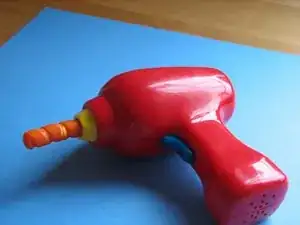

    • Insert the other end of the wooden dowel into the other end of the plastic toy.

    • Push the ends together to get a tight and clean fit.

Abschluss

To reassemble your device, follow these instructions in reverse order.
