Repairing a ripped off cable of a Sigma ATS and STS cyclometer mount

Schwierigkeitsgrad

Difficult

Schritte

4

Zeitaufwand

20 Minuten

Einleitung

The cable of the cyclometer mount can be ripped off quiet easily right before it disappears in the case. This guide explains how to fix a ripped of cable.

  1. GaGEoxMCiHAoS3wU
    GaGEoxMCiHAoS3wU
    BNXDwhEXXdx6U6sy
    rY1nbenfWLmNv5gZ

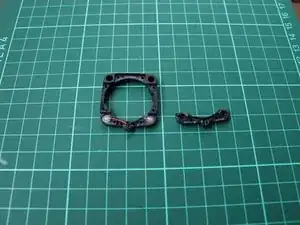

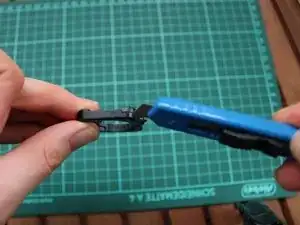

    • Use your cutter knife to pry open the small cap that hides the inner contacts.

    • You probably have to go a bit deeper into the plastic as the cap is glued to the casing.

  2. egpogrvpURVUoXjb
    egpogrvpURVUoXjb
    OMfwDl6QCKoad2iH
    RibRZTQgQUN5RlbI

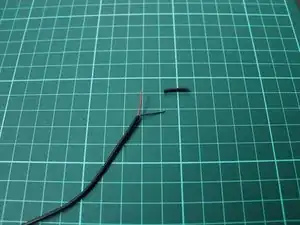

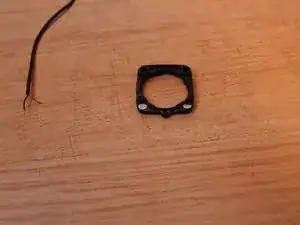

    • Take the remaining cable and remove some of the thick black insulation as well as some of the thin insulation as shown in the picture.

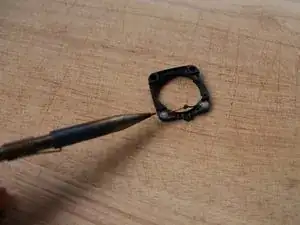

    • Remove the broken cable by ripping it off carefully or using a soldering iron.

  3. hoM6OFPkqvC4FGPT
    hoM6OFPkqvC4FGPT
    CU6YNuZqo3qLPtbJ

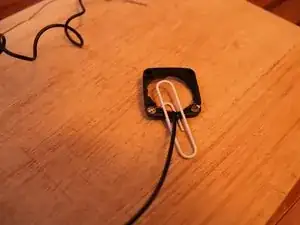

    • Use the paper clip to hold the cable at the right position.

    • Solder the prepared cable to the contacts.

    • Remember: the red cable left, the black cable right.

    • The contacts take up heat of the soldering iron really fast. This can lead to the contacts melting the surrounding plastic. Hence, you have to be fast.

  4. MBh1iumKHydFFj62

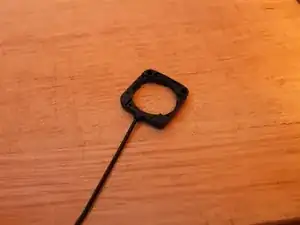

    • Apply some glue to the mount and re-attach the cap to the mount.

Abschluss

Now go and attach the cyclometer to your bike and check that it works again.
