Einleitung
DIY replacement of iPhone dust mesh.
Replacing a iPhone speaker dust mesh on the front of an iPhone would require disassembling the whole phone. There is an easier and much cheaper workaround for this...
Ersatzteile
-
-

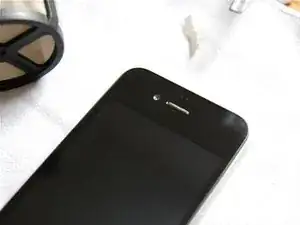

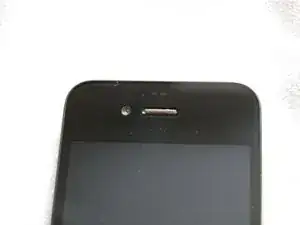

Left image shows iPhone with missing front dust mesh
-

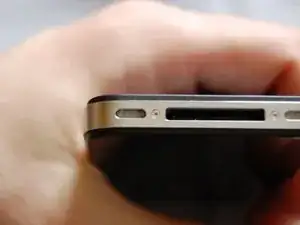

Right image shows dust meshes on bottom
-
-
-

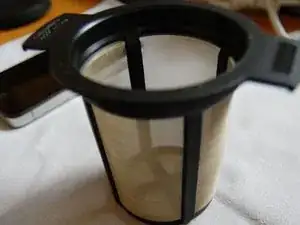

Cut out a piece of stainless steel mesh of the tea filter using a pocket knife
-

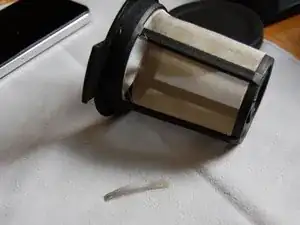

Trim the piece of mesh using a pair of scissors to a size of approx. 3x9 mm
-
-
-
Fold the piece of mesh longways using the plastic tip
-
Use a pair of tweezers to insert the folded piece of mesh into the hole above the speaker
-
Put piece of mesh into place using plastic tip
-

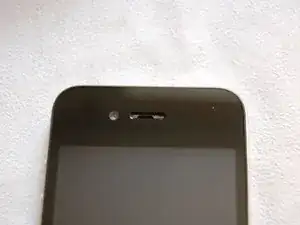

That's it - see the result on the images
-
Ein Kommentar
This may work fine for most dirt, but with the original design there is also a cloth mesh behind the metal mesh that helps to keep finer particles out of the speaker.
This is definitely a much much much easier way to get some sort of protection in there at least. :)
