Repairing nose pads on eyeglasses

Geschrieben von: Vivi Chou
  • Kommentare: 1
Repairing nose pads on eyeglasses

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 9 Minuten

Einleitung

This guide will walk you through our repair process step by step on how to reattach a loose nose pad on a pair of eyeglasses. You will need a nose pad, a 1.0mm flathead screwdriver, a magnet, and an extra screw if you have lost the one on your eyeglasses.

We feel this guide is necessary because according to our research, myopia is affecting nearly 40 percent of the US population. In addition, based on our own experiences, nose pads are normally the weakest part of the glasses. For those who need their glasses every day, knowing how to repair the nose pads by themselves is extremely useful.

  1. N65WkxBSeEWcl6JT
    N65WkxBSeEWcl6JT
    CnqmboZtBN4u6HVt

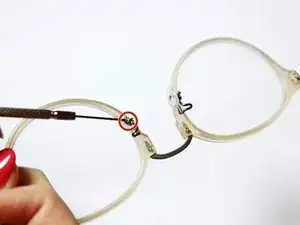

    • Remove the screw from the pad arm.

    • If the screw is missing, get a backup screw, and proceed to step 2.

  2. gAbrrPuODIdNIRnY
    gAbrrPuODIdNIRnY
    aKLnB3Xog4PhMCH5

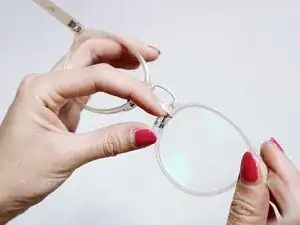

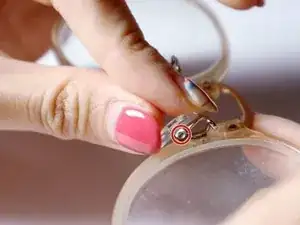

    • Insert the nose pad into the mount on the frame.

    • Make sure the nose pad lines up with the screw hole.

    • While holding the nose pad in place, use the magnet to attract the screw head.

    • Make sure the screw is vertical to the magnet and the screw head is above.

  3. kwWiFrj1MMlOsiDV

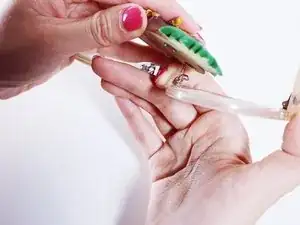

    • Place the screw into the screw hole.

  4. 5X6JHPscDuIE1ufP
    5X6JHPscDuIE1ufP
    NYJajFXHUhYZVHQD

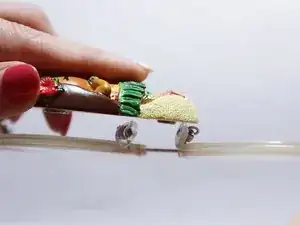

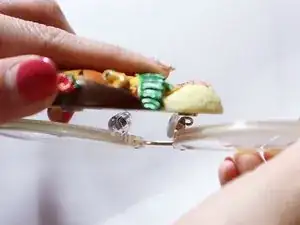

    • Using a horizontal motion, remove the magnet.

    • Don't use a vertical motion to remove the magnet, otherwise the screw will come out.

  5. fNOUVGYIZdQXXQ3Y
    fNOUVGYIZdQXXQ3Y
    jfxRB2tnJECMYOhf

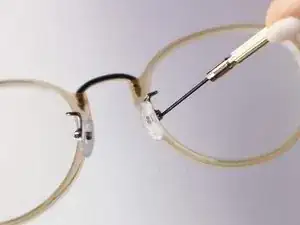

    • Holding the glasses with the screw head pointing up, tighten the screw with the screwdriver.

    • Make sure the screw is tightened enough.

    Do you have a solution that fixes broken screws holding the nose pad in place? the slotted cap screw just got busted. can’t screw them out.

    (T T)

    Sean Lim -

Abschluss

To reassemble your device, follow these instructions in reverse order.
