Here is an inexpensive Guitar Amplifier that came to me for a "rattling on the inside" and " no power" issue. I figured I can take a look at it and see what needs to be done. Straight forward disassembly made it easy and no service manual is needed. Trouble shooting consist of visual as well as some component testing.

  1. SFVCT2JONPWNwiDI
    SFVCT2JONPWNwiDI
    ghi1uFPAIY4Q4IJ2
    DtwmGOPFBniRqY6k
    • Here is the Amp in all its miniature glory. total size is 91/2 inches X 9 5/8inches and 6 inches deep. All controls are in the front panel.

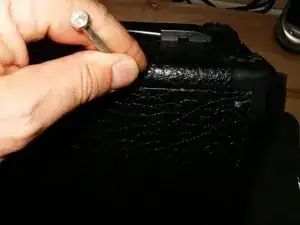

    • Remove the 4 Phillips head screws from the back panel.

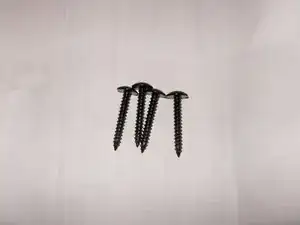

    • Here are the 4 #6x1" screws

  2. IVCrBGOkdmBPtsmQ
    IVCrBGOkdmBPtsmQ
    1QEpOZJBBJInskSa
    ycIbWP1GmP4WIpAo

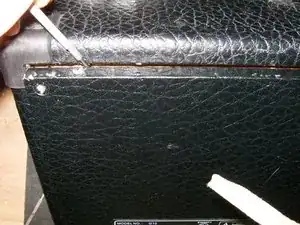

    • Remove the back panel. Use a small screwdriver, or other instrument to free it from its recess.

    • Work your way all around, since the back is a bit snug in the recess.

  3. vqlGpckpkLoBmJTU
    vqlGpckpkLoBmJTU
    6GMWRCWivXPheAHj
    1lHpUbt6IxcAPJxH

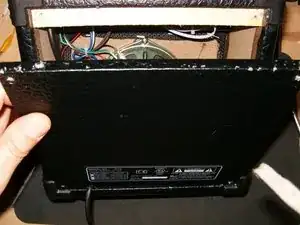

    • Once the panel is freed from the recess, fold it down and remove from amp.

    • Something does not look quite right :-)

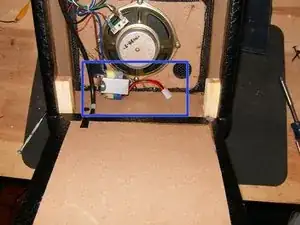

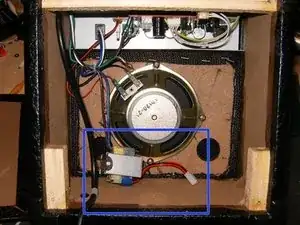

    • the transformer should be mounted to the PCB, not laying inside the box.

  4. B6ZrQJXulB45mJOL
    B6ZrQJXulB45mJOL
    CKbVdDb6BWUWyVUM
    kv2RKQEvtAv1tfhS

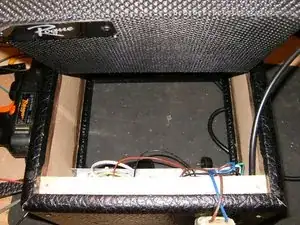

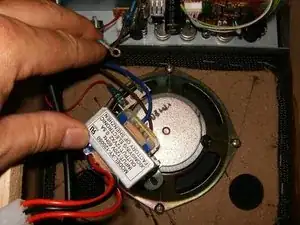

    • Trying to find a mount for it.

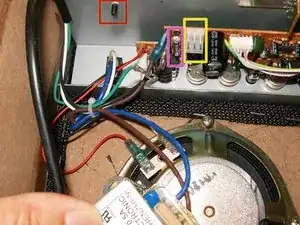

    • Closer view of the control panel PCB.

    • Mount for the transformer

    • Unoccupied connector

    • Fuse

    • Before anything else, check the fuse for continuity. this one has failed.

  5. 3VPxlEVn6DNJUMgF
    3VPxlEVn6DNJUMgF
    dVtGxMDIVpRX3NLy
    woB2PpUQVXZTpMUO

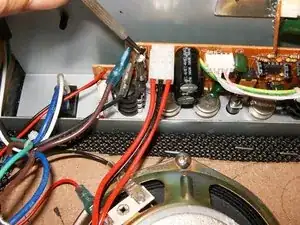

    • Replace the fuse. Insert transformer power cable to PCB.

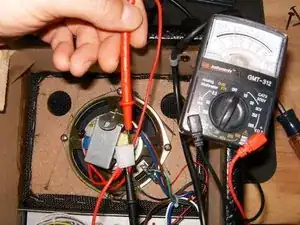

    • Since the Amp did not turn on, check the power out on the transformer. It does show 12V DC. Reconnect it and turn the Amp face forward.

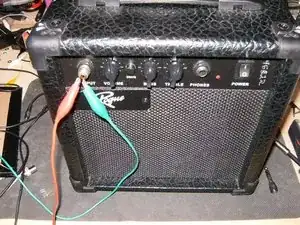

    • The Amp uses a 6.3mm input and output jack. Apply a sound source to the input. Still no sound from the Amp, it is time to check a bit deeper.

  6. QVMKJBZET2gsXao2
    QVMKJBZET2gsXao2
    xPLkF3VxfUNkLXqN
    M4uRa5rWBX2ESdwl
    • Remove the two Philips head screws from the carrying handle.

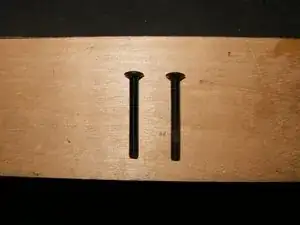

    • Those are 3mm x40mm

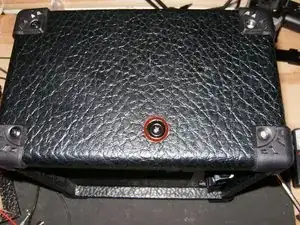

    • Remove the Philips screw on the right side of the Amp

  7. vCUIRNJG52qRcnuT
    vCUIRNJG52qRcnuT
    J6RKtaTAuPA4Clv2
    ZfbpKxIUFOWZQwNX
    • Remove the Philips head screw on the left side of the Amp.

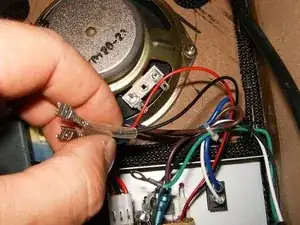

    • Unplug the speaker wires.

    • Remove the Philips head screw that holds the power cable bracket.

  8. wl1GBHoUIlpOkiax
    wl1GBHoUIlpOkiax
    6uLFuyGgxjMfPYJI
    Q2vPOhCw3IenmkJY

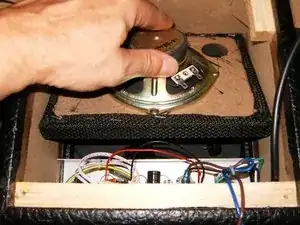

    • Remove the front panel and the attached speaker.

    • Simply lift it at an angle out of the back of the Amp.

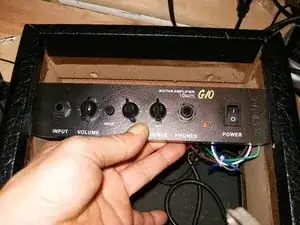

    • The control panel and the attached PCB can now be removed.

  9. LkEQOEmNubgie2E6
    LkEQOEmNubgie2E6
    yEykVF6yYPdFUKs4
    cvZFdWPlvRFbSYTj

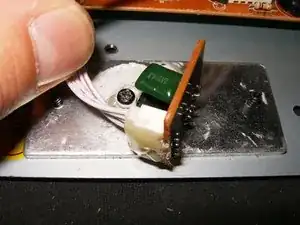

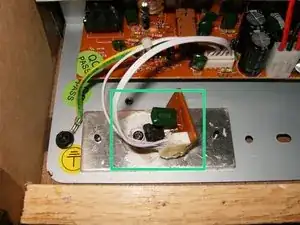

    • Another odd looking piece is the location of the power Amp IC.

    • The smudge marks of the thermal past revealed that the board was loose and the the IC did not make contact with the heatsink

    • The thread in the heatsink was partially stripped. Use a small jewelers screwdriver to wedge under the screw,while using a #2 Philips screwdriver to remove it.

  10. iyaPFGCU2H2IMBop
    iyaPFGCU2H2IMBop
    AFPc1whnkL1FOpVY
    FDkyNj4NGsdv2LoD

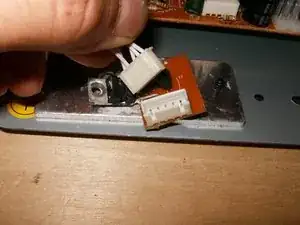

    • Remove the connector from the PCB.

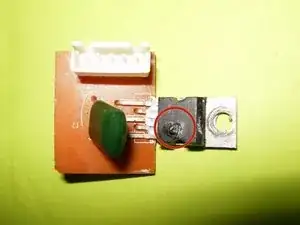

    • Remove the IC PCB from the panel. The IC definitely shows some damage, most likely from overheating.

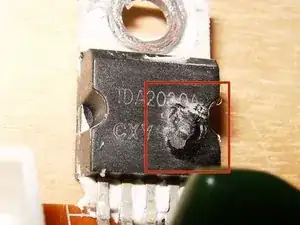

    • Here is a close up of the damaged IC. It is a TDA2030A 18 W hi-fi amplier / 35 W audio driver

  11. yEA2OELXAWe6yfW1
    yEA2OELXAWe6yfW1
    TUFJ11AmC6R3NKbb
    ApQCTglCAAtOfISG

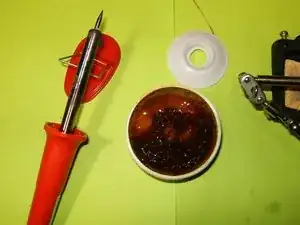

    • These are the tools needed to replace the IC. 15W Soldering iron, flux and desoldering wick.

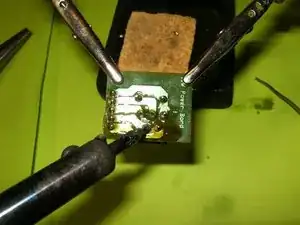

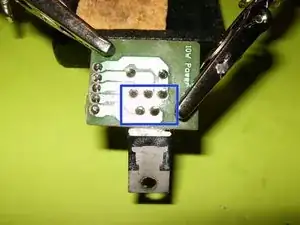

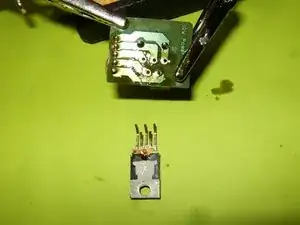

    • These are the five contacts that need to be desoldered. Apply some flux on the wick and heat up the solder with the soldering iron.

    • Remove the damaged IC

  12. 24ybGUxpciD5HKtX
    24ybGUxpciD5HKtX
    K1mE6JGtdSLiRUwE
    KDfTHmYShAXiJZ2U
    • Insert wisdom here.

  13. ZFWwoFFBHKCbErkJ
    ZFWwoFFBHKCbErkJ
    ur3fIyqJeHBdjZHu
    vYpIEylcqmIBEpGc

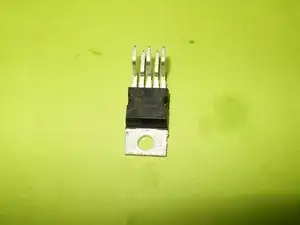

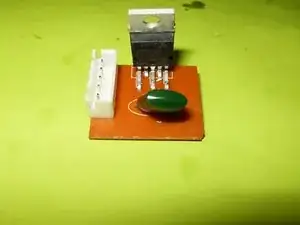

    • Here is the replacement IC.

    • Place the IC properly on the PCB

    • Solder it in place.

  14. ROB2GTjXxlO5eDry
    ROB2GTjXxlO5eDry
    ZKEIMPUcu3nWspnS

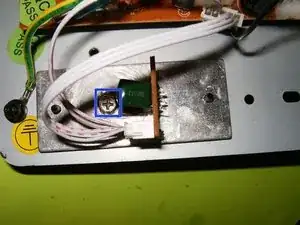

    • Reapply a thin coat of thermal paste to the back of the IC. Use a self tapping screw to attach it to the heatsink.

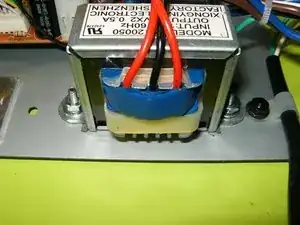

    • Now is also a good time to properly mount the transformer. I used some M3x15mm machine screws.

    • With those repairs made, all that is left is to reassemble the AMP. In my case, this Amp worked after replacing the TDA2030A
