Reparatur und Wartung von Briggs & Stratton Vergasern der Serie 675

Geschrieben von: Tim Wirtz
  • Kommentare: 26
Reparatur und Wartung von Briggs & Stratton Vergasern der Serie 675

Schwierigkeitsgrad

Mittel

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Diese Anleitung erfordert etwas mehr Aufwand als einige der anderen Rasenmäher Austauscharbeiten.

Entferne als erstes den Luftfilter, um danach dahinter an den Vergaser-Tank zu entfernen und zu reinigen. Du benutzt dazu eine Umschaltknarre mit 5/16"und 1/2"

Inbus-Steckschlüsseleinsätzen und ein Hebelwerkzeug.

Bevor du anfängst ist es empfehlenswert einen O-Ring zu kaufen, falls der Mäher schon älter ist, weil der Ring im Tank bereits verschlissen sein könnte.

Die Reinigung könnte eine dreckigere Angelegenheit werden, also besser nicht in Innenräumen versuchen.

  1. DFmMVyKKYBXAbZJZ

    • Stelle sicher, dass der Motor aus und das Zündkabel von der Zündkerze entfernt ist, bevor du beginnst.

    • Entferne die 40 mm Schraube, die das Filtergehäuse an Ort und Stelle hält, mit einem Schlitzschraubendreher #4.

  2. dpCdYNFeYqHDqChx

    • Ziehe mit deinen Händen das Filtergehäuse vom Scharnier an der Unterseite ab.

  3. qJj2G6PBPSHeNDIC
    qJj2G6PBPSHeNDIC
    kYB4AokcNjVu3eZx

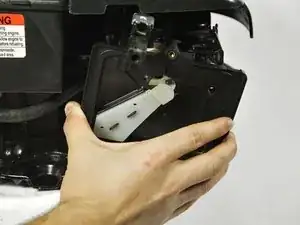

    • Entferne die 20mm Schrauben hinter dem Luftfilter mit einem 5/16´´Steckschlüsseleinsatz.

    • Entferne die Plastikteil hinter dem Luftfilter von Hand, um den Vergaser freizulegen.

  4. VsEFJ2nmUaJvibBy

    • Hinweis: Die Kunststoffdichtung hinter dem Plastikteil könnte bei der Demontage herausfallen. Das ist normal, lege sie zur Seite und hebe sie für den Zusammenbau auf.

  5. tEoxiwESDgPItWQZ

    • Entferne mittels Umschaltknarre und 1/2´´Nuss die 11mm Schraube an der Unterseite des Tanks.

    Make sure you empty the fuel, remove the fuel tank, or clamp the fuel line before you do this step, or you'll get fuel everywhere!

    Calion -

    Yes, definitely clamp off the fuel line with locking pliers. I can’t believe this guide would neglect to mention that.

    Also, I would not call this a “tank” — it is not the fuel tank. Everybody who works on small engines calls it a fuel bowl.

    Trevor Kemp -

    Mine was a 13mm on the fuel bowl..empty fuel tank first

    dslyr -

  6. OkvqVuY5FIUeWqRo
    OkvqVuY5FIUeWqRo
    BydmBYuqgTKHtLL2

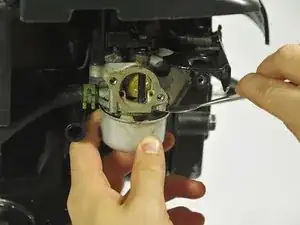

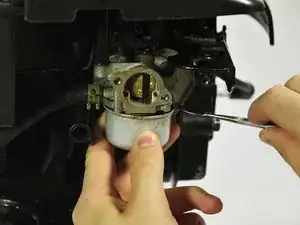

    • Nachdem die Schraube an der Unterseite des Tanks entfernt ist, heble vorsichtig mit einem metallenen Hebelwerkzeug am Tank , bis er herausspringt. Als Hebelwerkzeug funktioniert auch ein Flachschraubendreher.

    • Entferne den Tank komplett, um ihn zu reinigen oder zu ersetzen.

    The thing that is most important to clean here is the screw in the bottom. It has holes which, if clogged, will prevent your engine from running for more than a second or two. Make sure you clean them out with carburetor cleaner. It's easy to miss, as it falls out into the socket when it's unscrewed.

    Calion -

    Calion

    Your old post on cleaning the float bowl retaining nut was a real problem solver for me. Had done everything but clean n the flow thru holes in the retaining nut. Reassembled and mower engine started right up. Thanks a lot. Sam

    Samuell Gonzales -

    Yes, definitely need to clean out the ports in the bolt with a needle, can’t believe that’s not included in a guide about maintaining a carburetor.

    Similar comment to previous step, it’s a fuel bowl, not a fuel tank.

    Trevor Kemp -

    What is the purpose of the bolt with the hole .

    dslyr -

    it lets gas slowly drip out when too much pressure builds up.

    pg alex -

    Just buy a new carburetor on Ebay for less than $10 and skip all this grief.

    David -

  7. IuZBQNSP1lue5CSj

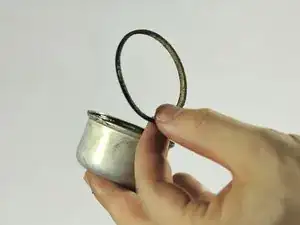

    • Überprüfe den O-Ring im Inneren des Tanks. Falls er trocken und verschlissen ist, musst du ihn möglicherweise erneuern, bevor du das Teil wieder zusammenbaust.

    Is there a filter in the bowl? I see something and it is covered with junk. Wish there were a schematic.

    Eddie Brown -

Abschluss

Um dein Gerät wieder zusammen zu setzen, führe die Schritte in umgekehrter Reihenfolge aus.
